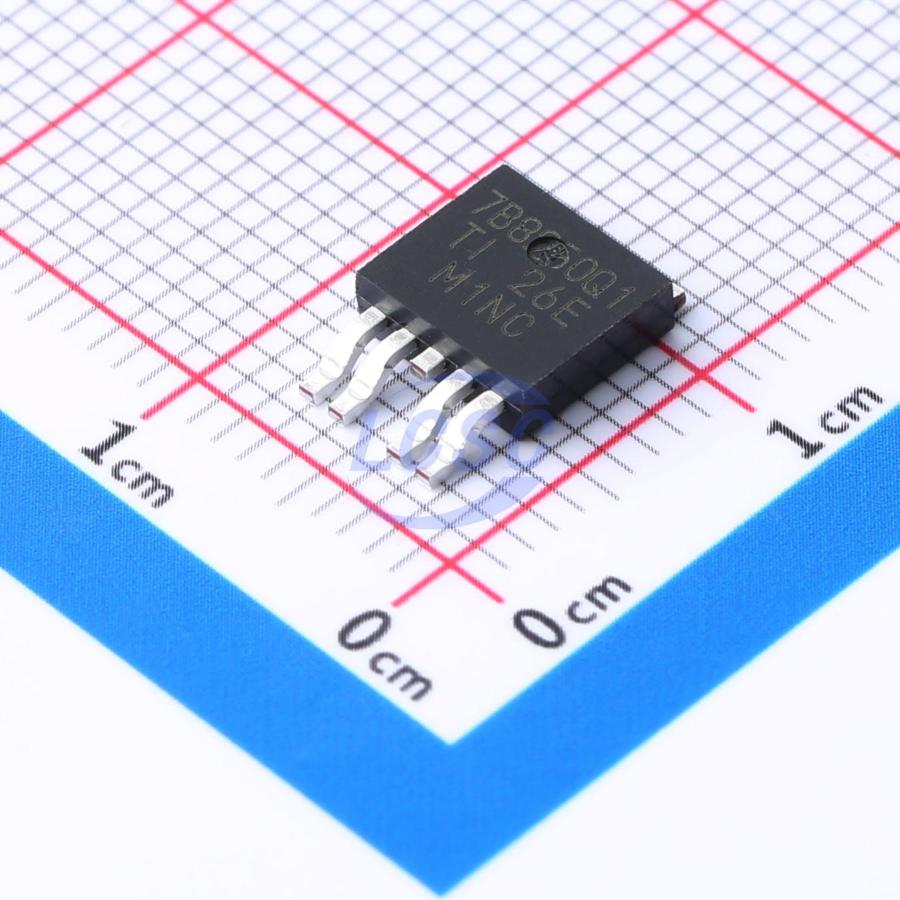

TPS7B8250QKVURQ1

In automotive battery-connected applications, low quiescent current (IQ) is critical for power savings and extended battery life. For always-on systems, ultra-low IQ is essential. The TPS7B82-Q1 is a low-dropout linear regulator designed to operate over a wide input voltage range of 3V to 40V (45V load dump protection). With an operating voltage as low as 3V, the TPS7B82-Q1 continues to function during cold crank as well as start-stop conditions. The device features a typical quiescent current of only 2.7μA at light load, making it an ideal solution for powering MCUs and CAN/LIN transceivers in standby systems. These devices feature integrated short-circuit and overcurrent protection. The device operates over an ambient temperature range of -40°C to +125°C, with a junction temperature range of -40°C to +150°C. In addition, the device employs a thermally conductive package, enabling sustained operation even under high thermal dissipation conditions. Due to these characteristics, the device is designed to serve as a power supply for a wide range of automotive applications.

Applications

• Automotive head unit
• Telematics control unit
• Headlamps
• Body control module
• Inverter and motor control

Key features

• AEC-Q100 qualified for automotive applications:
• Temperature Grade 1: -40°C ≤ TA ≤ 125°C
• Temperature Grade 0: -40°C ≤ TA ≤ 150°C
• Operating junction temperature range:
• Grade 1: -40°C ≤ TJ ≤ 150°C
• Grade 0: -40°C ≤ TJ ≤ 165°C
• Low quiescent current IQ:
• IQ = 300nA in shutdown mode
• Typical 2.7μA at light load
• Maximum 5μA at light load
• Wide VIN input voltage range: 3V to 40V, transient voltage up to 45V
• Maximum output current: 300mA
• Output voltage accuracy: 2%
• Maximum dropout voltage: 700mV at 200mA load current for fixed 5V output version
• Stable with low ESR (0.001Ω to 5Ω) ceramic output stabilizing capacitors (1µF to 200μF)
• Fixed output voltages: 2.5V, 3.3V, and 5V
• Packages:
• 8-pin HVSSOP, RθJA = 63.9°C/W
• 6-pin WSON, RθJA = 72.8°C/W
• 5-pin TO-252, RθJA = 31.1°C/W
• 14-pin HTSSOP, RθJA = 52.0°C/W
