InfineonDatasheet (PDF)

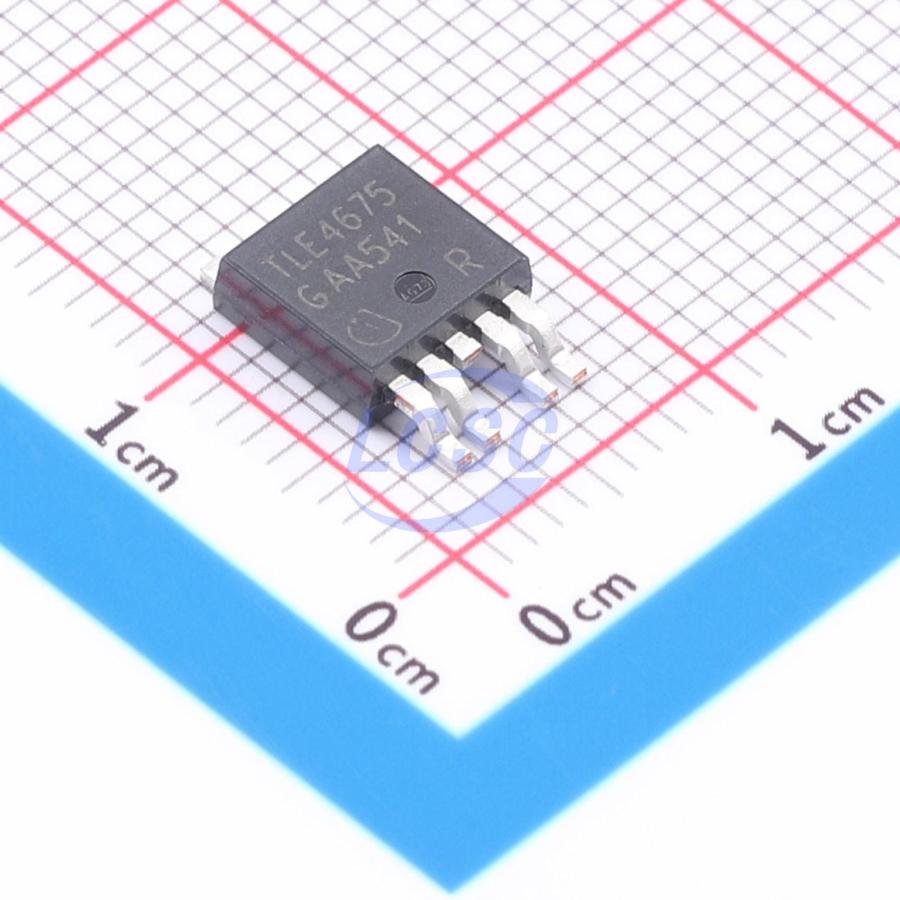

TLE4675D
5V Positive Fixed TO-252-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-4ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- TLE4675D
- Store part #
- C539765
- Package / case
- TO-252-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
41 in stock
#C539765
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹293.14 | ₹293.14 |
| 10+ | ₹286.20 | ₹2,862.00 |
| 30+ | ₹281.65 | ₹8,449.50 |
| 100+ | ₹277.09 | ₹27,709.00 |
1 × ₹293.14
₹293.14
excl. GST
₹345.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLE4675D
₹293.14 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 80uA
- Output Configuration
- Positive
- Operating Voltage
- 45V
- Output Current
- 400mA
- Features
- Reset function;Reverse polarity voltage protection;Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.559 g
Overview
The TLE4675 is a monolithic integrated low drop out fixed output voltage regulator for loads up to 400 mA. An input voltage up to 45 V is regulated to an output voltage of 5 V. The integrated reset function, as well as several protection circuits combined with the wide operating temperature range offered by the TLE4675 make it suitable for supplying microprocessor system in automotive environments.
Key features
- Output Voltage 5V ±2%
- Output Current Capability 400 mA
- Ultra Low Current Consumption
- Very Low Drop Out Voltage
- Reset Circuit Sensing the Output Voltage with Programmable Delay Time
- Reset Output Active Low Down to VQ = 1 V
- Excellent Line Transient Robustness
- Maximum Input Voltage -42 V ≤ V1 ≤ +45 V
- Reverse Polarity Protection
- Short Circuit Protected
- Overtemperature Shutdown
- Automotive Temperature Range -40 °C ≤ Tj ≤ 150 °C
- Green Product (RoHS compliant)
- AEC Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLE42764DV50ATMA1#C3752213Infineon · TO-252-4 | Infineon | TO-252-4 | 23 | ₹157.85 · 23 in stock | View |
 | TLE4275QKVURQ1#C781809TI · TO-252-4 | TI | TO-252-4 | 4,825 | ₹146.81 · 4,825 in stock | View |
 | TLE42754D#C90364Infineon · TO-252-4 | Infineon | TO-252-4 | 6,505 | ₹92.83 · 6,505 in stock | View |
| IFX25401TE V50#C536023Infineon · TO-252-4 | Infineon | TO-252-4 | On request | ₹145.40 · 0 in stock | View | |
