STDatasheet (PDF)

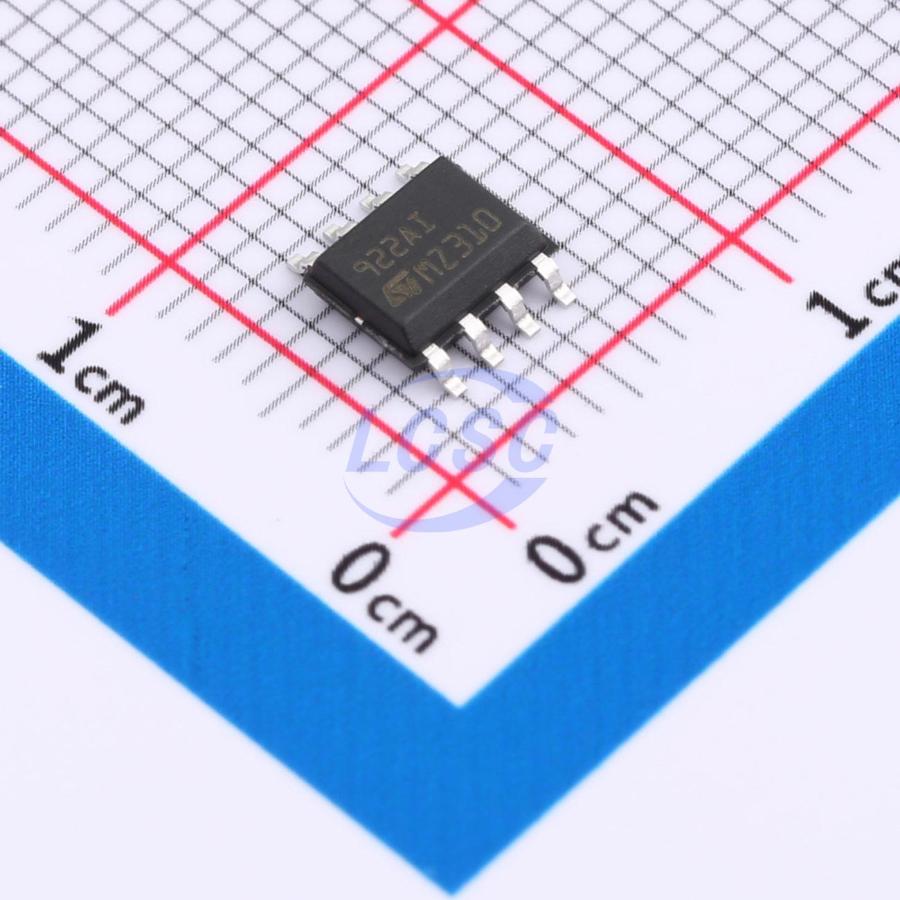

TS922AIDT
80mA 2 900uV 1.3V/us 80dB 100nA 2mA 4MHz Rail-to-Rail Input, Rail-to-Rail Output SO-8 Instrumentation, Op Amps, Buffer Amps RoHS
SO-8ROHS3 CompliantActive
Outstanding audio performance / low distortion (0.005%)
- Manufacturer
- ST
- Manufacturer part #
- TS922AIDT
- Store part #
- C283511
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,147 in stock
#C283511
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.16 | ₹136.16 |
| 10+ | ₹110.15 | ₹1,101.50 |
| 30+ | ₹97.13 | ₹2,913.90 |
| 100+ | ₹84.34 | ₹8,434.00 |
| 500+ | ₹76.54 | ₹38,270.00 |
| 1,000+ | ₹72.42 | ₹72,420.00 |
1 × ₹136.16
₹136.16
excl. GST
₹160.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TS922AIDT
₹136.16 for 1 + GST
Specifications
- Output Current
- 80mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 900uV
- Slew Rate
- 1.3V/us
- Input Offset Current(Ios)
- 30nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 100nA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 2mA
- Gain Bandwidth Product
- 4MHz
- Features
- ESD protection
- Input Voltage Noise Density
- 9nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.325 g
Overview
The TS922 and the TS922A devices are rail-to-rail dual BiCMOS operational amplifiers optimized and fully specified for 2.7 V and 5 V operations. These devices have high output currents which allow low-load impedances to be driven. Very low noise, low distortion, low offset, and a high output current capability make these devices an excellent choice for high quality, low voltage, or battery operated audio systems. The devices are stable for capacitive loads up to 500 pF.
Applications
- Line drivers and actuator drivers
- Portable speakers
- Instrumentation with low noise as key factor
- Multimedia systems and portable equipments
Key features
- Rail-to-rail input and output
- Low noise: 9 nV/√Hz
- Low distortion
- High output current: 80 mA (able to drive 32 Ω loads)
- High-speed: 4 MHz, 1 V/μs
- Operating from 2.7 to 12 V
- Low input offset voltage: 900 μV max. (TS922A)
- ESD internal protection: 2 kV
- Latch-up immunity
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TS922AID#C5268463ST · SO-8 | ST | SO-8 | 1 | ₹223.36 · 1 in stock | View |
 | TS922IDT#C93687ST · SO-8 | ST | SO-8 | 53,288 | ₹63.53 · 53,288 in stock | View |
| TS922ID#C1235672ST · SO-8 | ST | SO-8 | 4 | ₹99.03 · 4 in stock | View | |
 | TS922AIYDT#C283512ST · SO-8 | ST | SO-8 | 3 | ₹457.49 · 3 in stock | View |
 | TLV2462ID#C1347236TI · SOIC-8 | TI | SOIC-8 | On request | Price on request | Quote |
