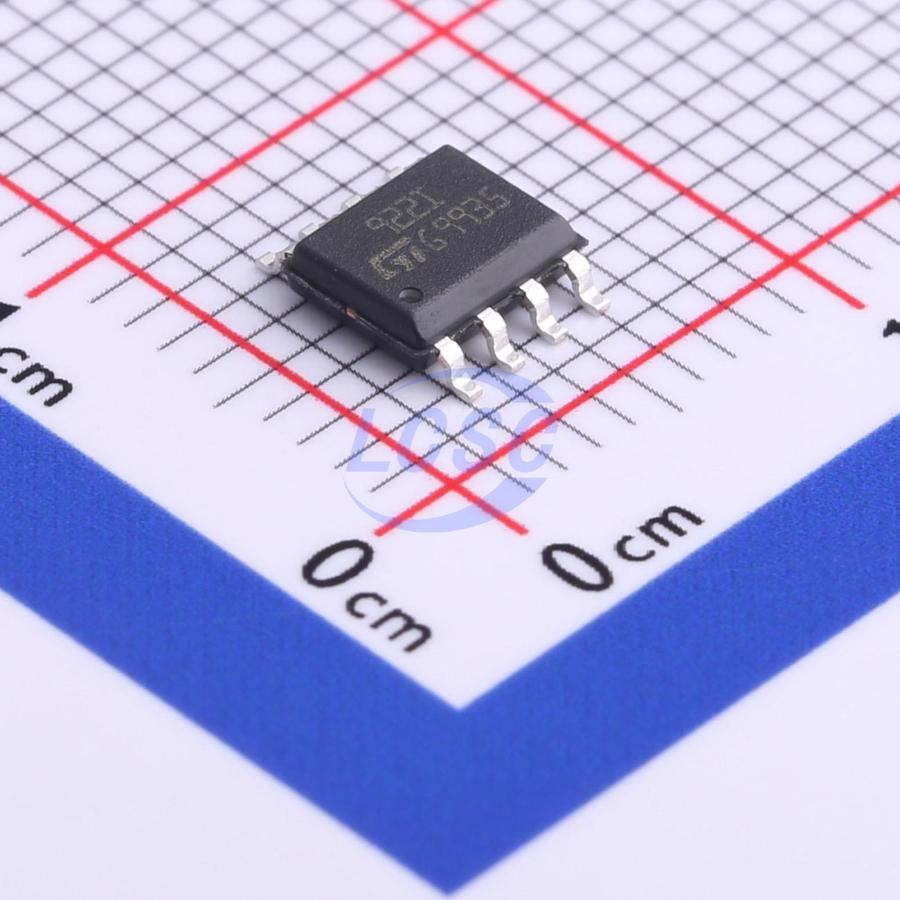

TS922IDT

80mA 2 3mV 1.3V/us 80dB 100nA 2mA 4MHz Rail-to-Rail Input, Rail-to-Rail Output SO-8 Instrumentation, Op Amps, Buffer Amps RoHS

SO-8ROHS3 CompliantActive

Rail-to-rail, high output current, dual operational amplifier

Manufacturer: ST
Manufacturer part #: TS922IDT
Store part #: C93687
Package / case: SO-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

53,288 in stock

#C93687

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹52.82	₹52.82
10+	₹41.65	₹416.50
30+	₹36.78	₹1,103.40
100+	₹30.83	₹3,083.00
500+	₹25.61	₹12,805.00
1,000+	₹23.98	₹23,980.00

Quantity (min 1)

1 × ₹52.82

₹52.82

excl. GST

₹62.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TS922IDT

₹52.82 for 1 + GST

Specifications

Output Current: 80mA
Number of Channels: 2
Vos - Input Offset Voltage: 3mV
Slew Rate: 1.3V/us
Input Offset Current(Ios): 30nA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 100nA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 2mA
Gain Bandwidth Product: 4MHz
Input Voltage Noise Density: 9nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.7V~12V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.235 g

Overview

TS922 and TS922A devices are rail-to-rail dual BiCMOS operational amplifiers optimized and fully specified for 2 V and 5 V operation. These devices have high output currents which allow low-load impedances to be driven. Very low noise, low distortion, low offset, and a high output current capability make these devices an excellent choice for high quality, low voltage, or battery operated audio systems. The devices are stable for capacitive loads up to 500 pF.

Applications

Headphone and servo amplifiers
Sound cards, multimedia systems
Line drivers, actuator drivers
Mobile phones and portable equipment
Instrumentation with low noise as key factor
Piezoelectric speaker drivers

Key features

Rail-to-rail input and output
Low noise: 9 nV/√Hz
Low distortion
High output current: 80 mA (able to drive 32 Ω loads)
High-speed: 4 MHz, 1 V/μs
Operating from 2.7 to 12 V
Low input offset voltage: 900 μv max. (TS922A)
ESD internal protection: 2 kV
Latch-up immunity
Macromodel included in this specification
Dual version available in Flip-chip package
