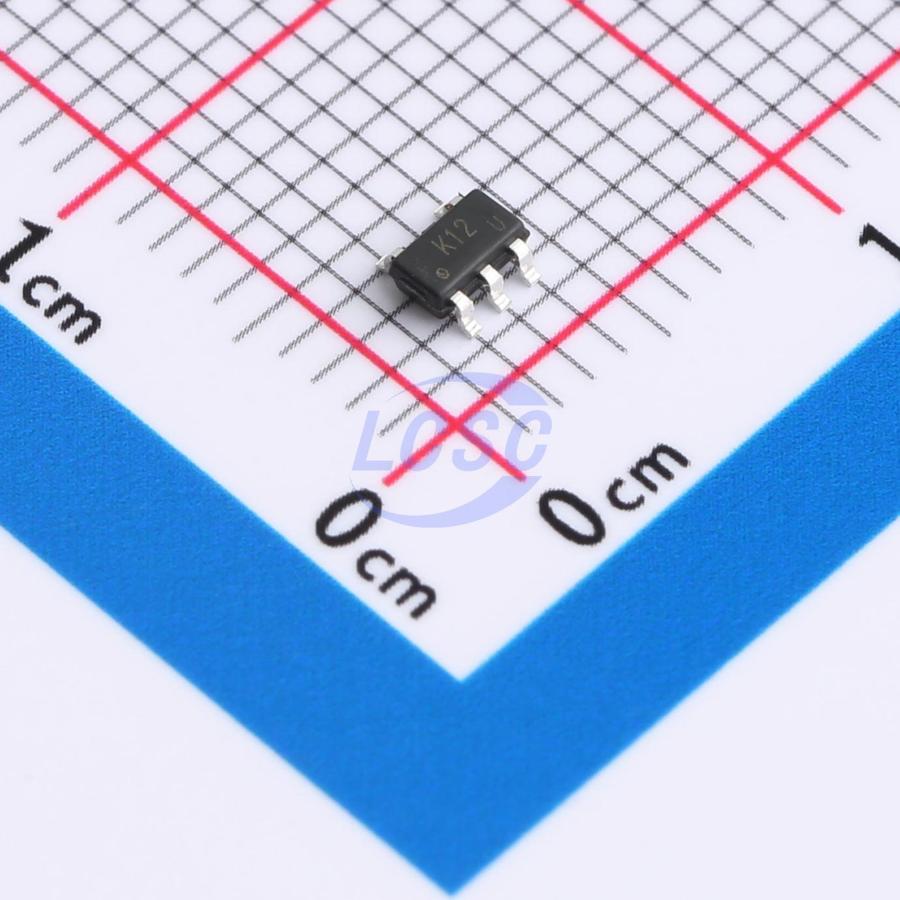

TSV611ILT(UMW)

13mA 1 4mV 30V/ms 71dB 1pA 10uA 120kHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS CompliantActive

Rail-to-rail input/output CMOS operational amplifiers

Manufacturer: UMW
Manufacturer part #: TSV611ILT(UMW)
Store part #: C22374959
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,350 in stock

#C22374959

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹22.70	₹113.50
50+	₹17.84	₹892.00
150+	₹15.75	₹2,362.50
500+	₹13.16	₹6,580.00
3,000+	₹11.99	₹35,970.00
6,000+	₹11.30	₹67,800.00

Quantity (min 5, multiples of 5)

5 × ₹22.70

₹113.50

excl. GST

₹133.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TSV611ILT(UMW)

₹113.50 for 5 + GST

Specifications

Output Current: 13mA
Number of Channels: 1
Vos - Input Offset Voltage: 4mV
Slew Rate: 30V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 71dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 10uA
Gain Bandwidth Product: 120kHz
Input Voltage Noise Density: 110nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.5V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.046 g

Overview

UMW TSV61x series single-channel and dual-channel op-amps offer low-voltage, low-power operation with rail-to-rail input and output. The devices also feature ultra-low input bias current and low input offset voltage. The UMW TSV61x consumes only 10μA at 5V while delivering a gain bandwidth product of 120kHz. These characteristics make the TSV61x series ideal for sensor interfaces, battery-powered and portable applications, and active filtering.

Applications

Battery-powered applications
Smoke detectors
Proximity sensors
Portable devices

Key features

Rail-to-rail input and output
Low power consumption: typical 10μA at 5V
Low supply voltage: 1.5V to 5.5V
Gain bandwidth product: typical 120kHz
Unity-gain stable
Low input offset voltage: 800μV maximum (A grade)
Low input bias current: typical 1pA
Temperature range: -40℃ to 85℃
