UMWDatasheet (PDF)

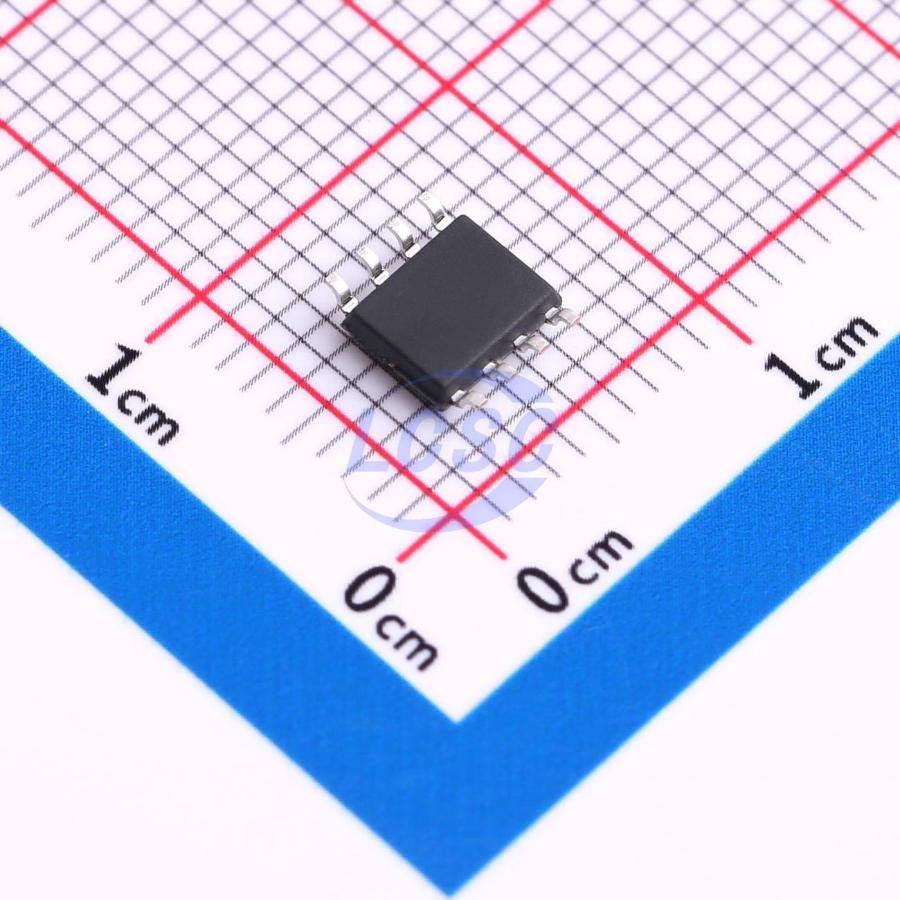

TSV612AIDT(UMW)
58mA 1 800uV 40V/ms 71dB 1pA 9uA 120kHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
Rail-to-rail input/output CMOS operational amplifiers
- Manufacturer
- UMW
- Manufacturer part #
- TSV612AIDT(UMW)
- Store part #
- C25168923
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,480 in stock
#C25168923
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.27 | ₹161.35 |
| 50+ | ₹25.35 | ₹1,267.50 |
| 150+ | ₹22.39 | ₹3,358.50 |
| 500+ | ₹18.69 | ₹9,345.00 |
| 2,500+ | ₹17.04 | ₹42,600.00 |
| 5,000+ | ₹16.06 | ₹80,300.00 |
5 × ₹32.27
₹161.35
excl. GST
₹190.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TSV612AIDT(UMW)
₹161.35 for 5 + GST
Specifications
- Output Current
- 58mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 800uV
- Slew Rate
- 40V/ms
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 71dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 9uA
- Gain Bandwidth Product
- 120kHz
- Input Voltage Noise Density
- 105nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.187 g
Overview
UMW TSV61x series single-channel and dual-channel op-amps offer low-voltage, low-power operation with rail-to-rail input and output. The devices also feature ultra-low input bias current and low input offset voltage. The UMW TSV61x consumes only 10μA at 5V while delivering a gain bandwidth product of 120kHz. These characteristics make the TSV61x series ideal for sensor interfaces, battery-powered and portable applications, and active filtering.
Applications
- Battery-powered applications
- Smoke detectors
- Proximity sensors
- Portable devices
Key features
- Rail-to-rail input and output
- Low power consumption: typical 10μA at 5V
- Low supply voltage: 1.5V to 5.5V
- Gain bandwidth product: typical 120kHz
- Unity-gain stable
- Low input offset voltage: 800μV maximum (A grade)
- Low input bias current: typical 1pA
- Temperature range: -40℃ to 85℃
