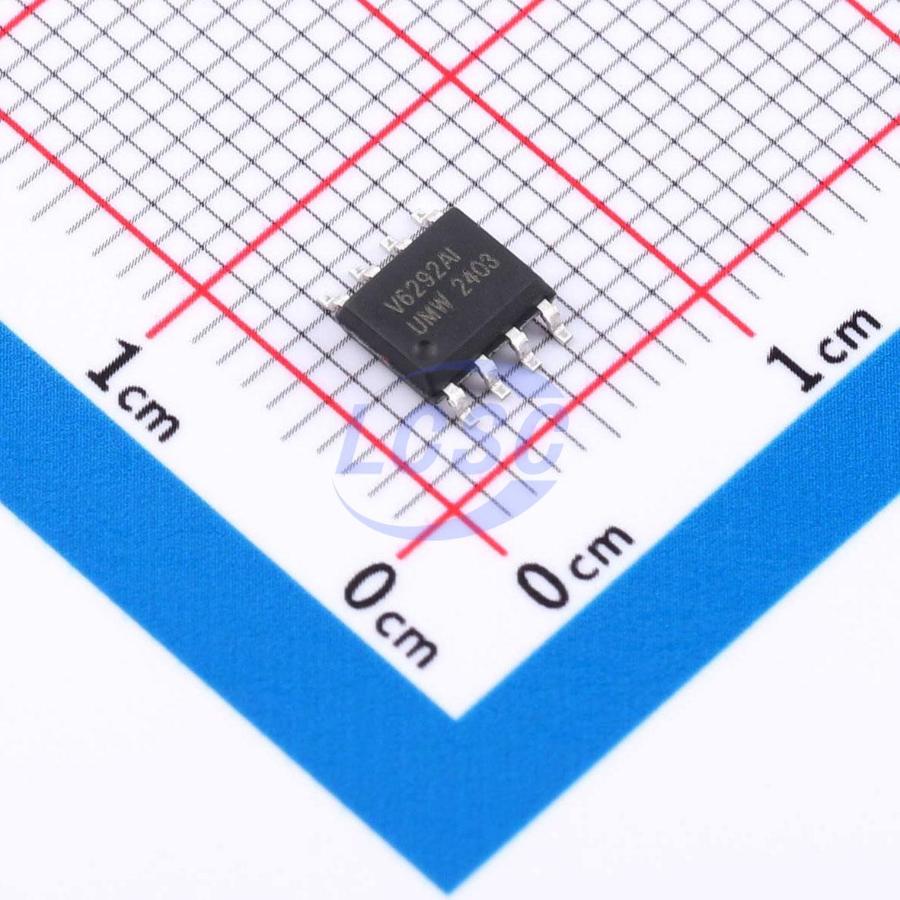

TSV6292AIDT(UMW)

74mA 2 800uV 500V/ms 74dB 1pA 25uA 1.3MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS CompliantActive

Micropower, Wide Bandwidth CMOS Operational Amplifiers

Manufacturer: UMW
Manufacturer part #: TSV6292AIDT(UMW)
Store part #: C25168919
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,500 in stock

#C25168919

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹34.76	₹173.80
50+	₹27.31	₹1,365.50
150+	₹24.12	₹3,618.00
500+	₹20.14	₹10,070.00
2,500+	₹18.36	₹45,900.00
5,000+	₹17.29	₹86,450.00

Quantity (min 5, multiples of 5)

5 × ₹34.76

₹173.80

excl. GST

₹205.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TSV6292AIDT(UMW)

₹173.80 for 5 + GST

Specifications

Output Current: 74mA
Number of Channels: 2
Vos - Input Offset Voltage: 800uV
Slew Rate: 500V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 74dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 25uA
Gain Bandwidth Product: 1.3MHz
Input Voltage Noise Density: 77nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.5V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.188 g

Overview

UMW TSV6292 and TSV6294 dual and quad op-amps deliver 1.3 MHz bandwidth while consuming only 29 μA supply current. They must be used in gain configurations (equal to or greater than +4 or -3). This device family features low-voltage, low-power operation with rail-to-rail input and output. These devices also offer ultra-low input bias current and low input offset voltage. These characteristics make the TSV6292 and TSV6294 family ideal for sensor interfaces, battery-powered and portable applications, and active filters.

Applications

Battery-powered applications
Portable devices
Signal conditioning

Key features

Rail-to-rail input and output
Low power consumption: 29 μA typical, 36 μA maximum
Low supply voltage: 1.5 ~ 5.5V
High gain bandwidth product: 1.3 MHz typical
Stable in gain configurations
Low-power shutdown mode: 5 nA typical
Good accuracy: 800 μV maximum (Grade A)
Low input bias current: 1 pA typical
EMI-resistant op-amp
High ESD tolerance: 4 kV HBM
Extended temperature range: -40 ~ +125°C
