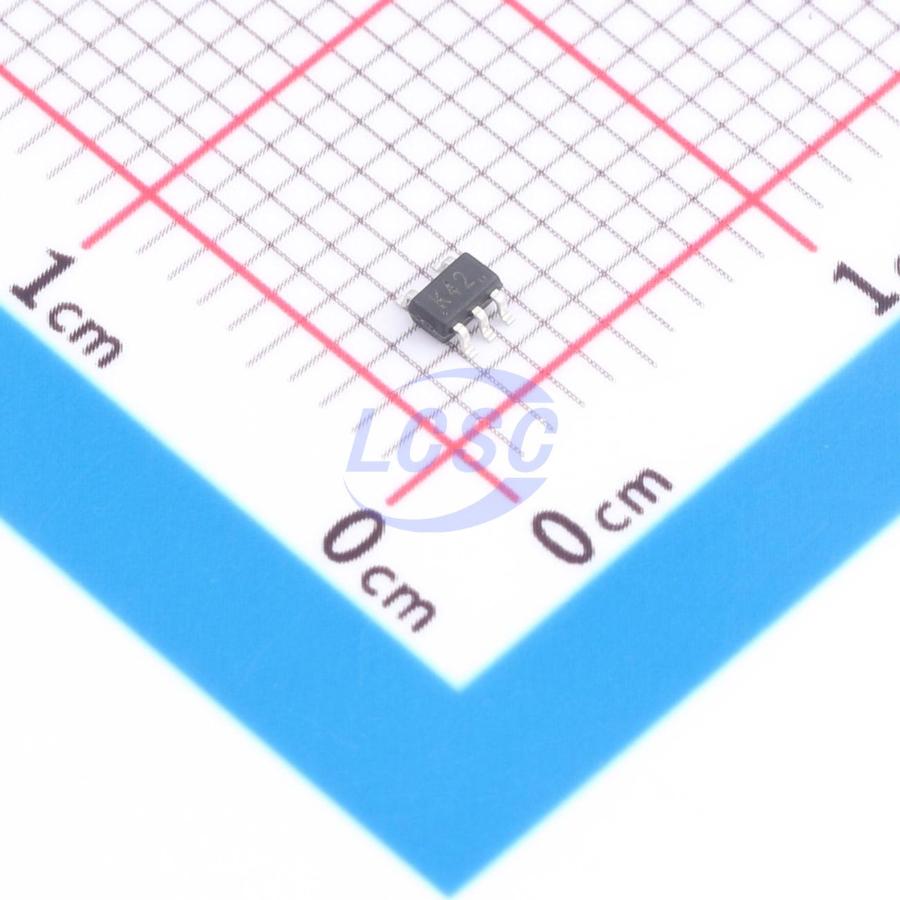

TSV631AICT(UMW)

74mA 1 500uV 340V/ms 80dB 10pA 60uA 880kHz Rail-to-Rail Input, Rail-to-Rail Output SC-70-5 Instrumentation, Op Amps, Buffer Amps

SC-70-5RoHSActive

Rail-to-rail input/output CMOS operational amplifiers

Manufacturer: UMW
Manufacturer part #: TSV631AICT(UMW)
Store part #: C29780646
Package / case: SC-70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C29780646

Stock & price checked 16 h ago

Quantity	Unit price	Pack price
5+	₹22.35	₹111.75
50+	₹17.56	₹878.00
150+	₹15.51	₹2,326.50
500+	₹12.95	₹6,475.00
3,000+	₹11.80	₹35,400.00
6,000+	₹11.13	₹66,780.00

Quantity (min 5, multiples of 5)

5 × ₹22.35

₹111.75

excl. GST

₹131.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TSV631AICT(UMW)

₹111.75 for 5 + GST

Specifications

Output Current: 74mA
Number of Channels: 1
Vos - Input Offset Voltage: 500uV
Slew Rate: 340V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 10uV/℃
Quiescent Current: 60uA
Gain Bandwidth Product: 880kHz
Features: Enable/shutdown function;Built-in compensation
Input Voltage Noise Density: 60nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.037 g

Overview

Single-channel op-amp featuring low-voltage, low-power operation with rail-to-rail input and output. The device offers ultra-low input bias current and offset voltage, making it ideal for high-precision applications. With an operating supply voltage range of 1.5V to 5.5V, it is well-suited for battery-powered devices, helping to extend battery life.

Applications

Battery-powered applications
Portable devices

Key features

Low offset voltage: 500μV max (A grade)
Low power consumption: 60μA typical (at 5V supply)
Low supply voltage: 1.5V ~ 5.5V
Gain bandwidth product: 880kHz typical
Unity-gain stable
Low-power shutdown mode: 5nA typical
High output current: 63mA (Vcc = 5V)
Low input bias current: 1pA typical
Rail-to-rail input and output
Extended operating temperature range: -40℃ ~ 125℃
