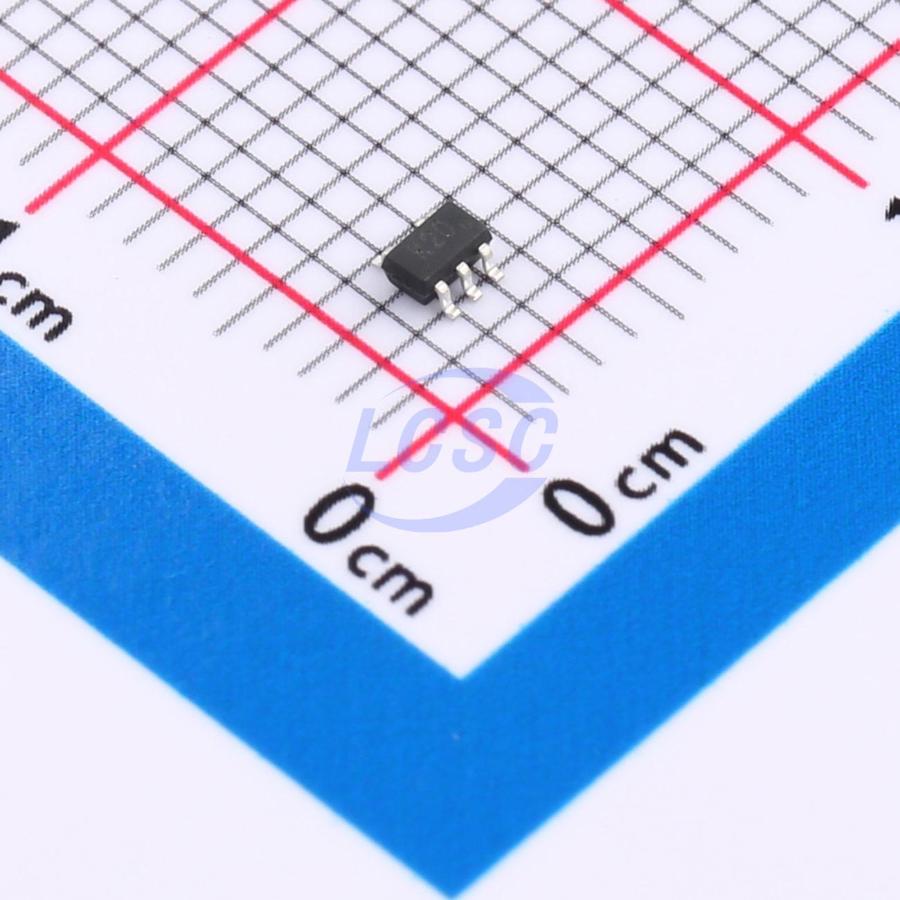

TSV6391ICT(UMW)

72mA 1 3mV 1.1V/us 1pA 80dB 60uA 2.4MHz Rail-to-Rail Input, Rail-to-Rail Output SC-70-5 Instrumentation, Op Amps, Buffer Amps

SC-70-5RoHSActive

Micropower (60 uA), wide bandwidth (2.4 MHz) CMOS operational amplifiers

Manufacturer: UMW
Manufacturer part #: TSV6391ICT(UMW)
Store part #: C22374963
Package / case: SC-70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,965 in stock

#C22374963

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹23.66	₹118.30
50+	₹20.68	₹1,034.00
150+	₹19.39	₹2,908.50
500+	₹17.80	₹8,900.00
3,000+	₹17.08	₹51,240.00
6,000+	₹16.65	₹99,900.00

Quantity (min 5, multiples of 5)

5 × ₹23.66

₹118.30

excl. GST

₹139.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TSV6391ICT(UMW)

₹118.30 for 5 + GST

Specifications

Output Current: 72mA
Number of Channels: 1
Vos - Input Offset Voltage: 3mV
Slew Rate: 1.1V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 80dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 60uA
Gain Bandwidth Product: 2.4MHz
Input Voltage Noise Density: 60nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.038 g

Overview

UMW TSV6390, TSV6391, and their "A" versions are single op-amps featuring low-voltage, low-power operation with rail-to-rail input and output. With ultralow input bias current and low offset voltage (500μV maximum for the A version), these devices are well suited for high-precision applications. Operating over a supply voltage range of 1.5V to 5.5V, they are ideal for battery-powered devices, helping to extend battery life.

Applications

Battery-powered applications
Portable devices
Signal conditioning
Active filtering
Medical instrumentation

Key features

Low offset voltage: 500μV max (A-grade)
Low quiescent current: 60μA typical (at 5V)
Low supply voltage: 1.5V - 5.5V
Gain bandwidth product: 2.4 MHz typical
Stable at gain configurations (-3 or 4)
Low-power shutdown mode: 5nA typical
High output current: 63mA (Vcc = 5V)
Low input bias current: 1pA typical
Rail-to-rail input and output
Extended operating temperature range: -40℃ to 125℃
4 kV human body model
