STDatasheet (PDF)

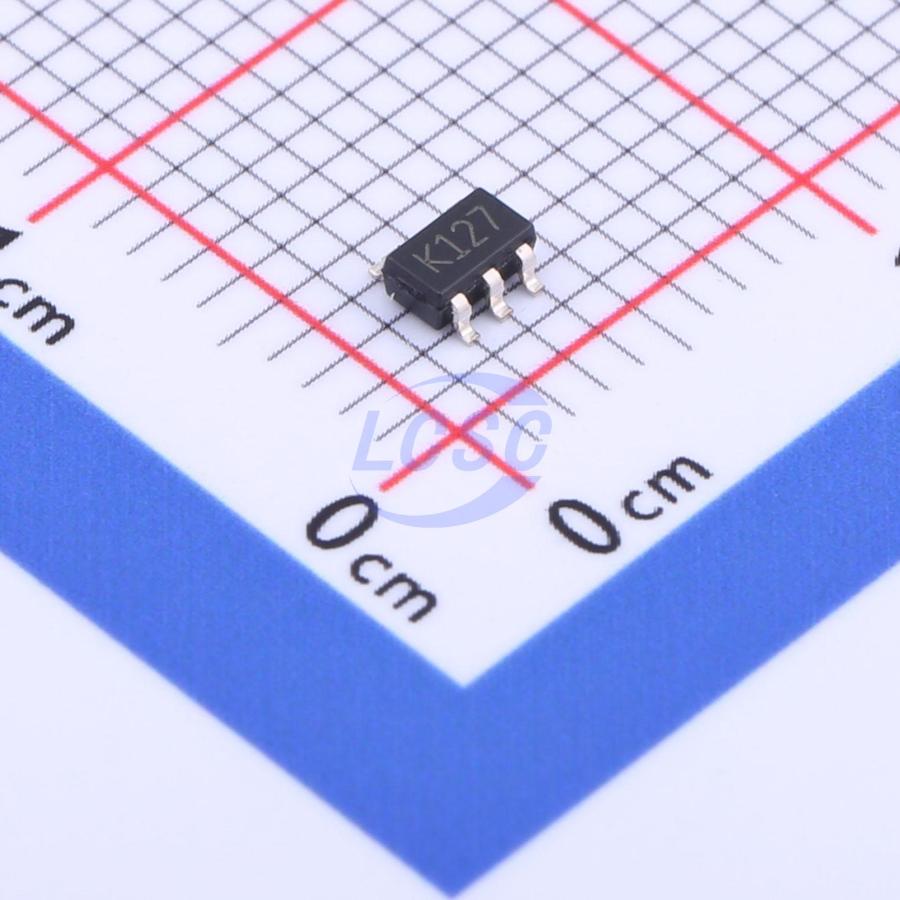

TSV911ILT
35mA 1 4.5mV 4.5V/us 82dB 1pA 780uA 8MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
Single, dual, and quad rail-to-rail input/output 8 MHz operational amplifiers
- Manufacturer
- ST
- Manufacturer part #
- TSV911ILT
- Store part #
- C672321
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,047 in stock
#C672321
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.51 | ₹55.51 |
| 10+ | ₹42.93 | ₹429.30 |
| 30+ | ₹37.73 | ₹1,131.90 |
| 100+ | ₹31.01 | ₹3,101.00 |
| 500+ | ₹27.98 | ₹13,990.00 |
| 1,000+ | ₹26.24 | ₹26,240.00 |
1 × ₹55.51
₹55.51
excl. GST
₹65.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TSV911ILT
₹55.51 for 1 + GST
Specifications
- Output Current
- 35mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 4.5mV
- Slew Rate
- 4.5V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 82dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Quiescent Current
- 780uA
- Gain Bandwidth Product
- 8MHz
- Features
- Built-in compensation;ESD protection
- Input Voltage Noise Density
- 21nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.039 g
Overview
The TSV91x and TSV91xA operational amplifiers (op amps) offer low voltage operation and rail-to-rail input and output, as well as an excellent speed/power consumption ratio, providing an 8 MHz gain-bandwidth product while consuming only 1.1 mA maximum at 5 V. The op amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, battery-supplied and portable applications, as well as active filtering.
Applications
- Battery-powered applications
- Portable devices
- Signal conditioning
- Active filtering
- Medical instrumentation
- Automotive applications
Key features
- Rail-to-rail input and output
- Wide bandwidth
- Low power consumption: 820 μA typ.
- Unity gain stability
- High output current: 35 mA
- Operating from 2.5 V to 5.5 V
- Low input bias current, 1 pA typ.
- Low input offset voltage: 1.5 mV max. (A grade)
- ESD internal protection ≥ 5 kV
- Latch-up immunity
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS621BXF#C2983746RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 465 | ₹28.52 · 465 in stock | View |
 | MSAD8605ARTZ-REEL7#C49208532MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 180 | ₹69.33 · 180 in stock | View |
 | COS721TR#C693056COSINE · SOT-23-5 | COSINE | SOT-23-5 | 11,605 | ₹19.33 · 11,605 in stock | View |
 | TSV911RILT#C2058295ST · SOT-23-5 | ST | SOT-23-5 | 20 | ₹441.70 · 20 in stock | View |
| TSV911IYLT#C2059032ST · SOT-23-5 | ST | SOT-23-5 | 1 | ₹132.86 · 1 in stock | View | |
