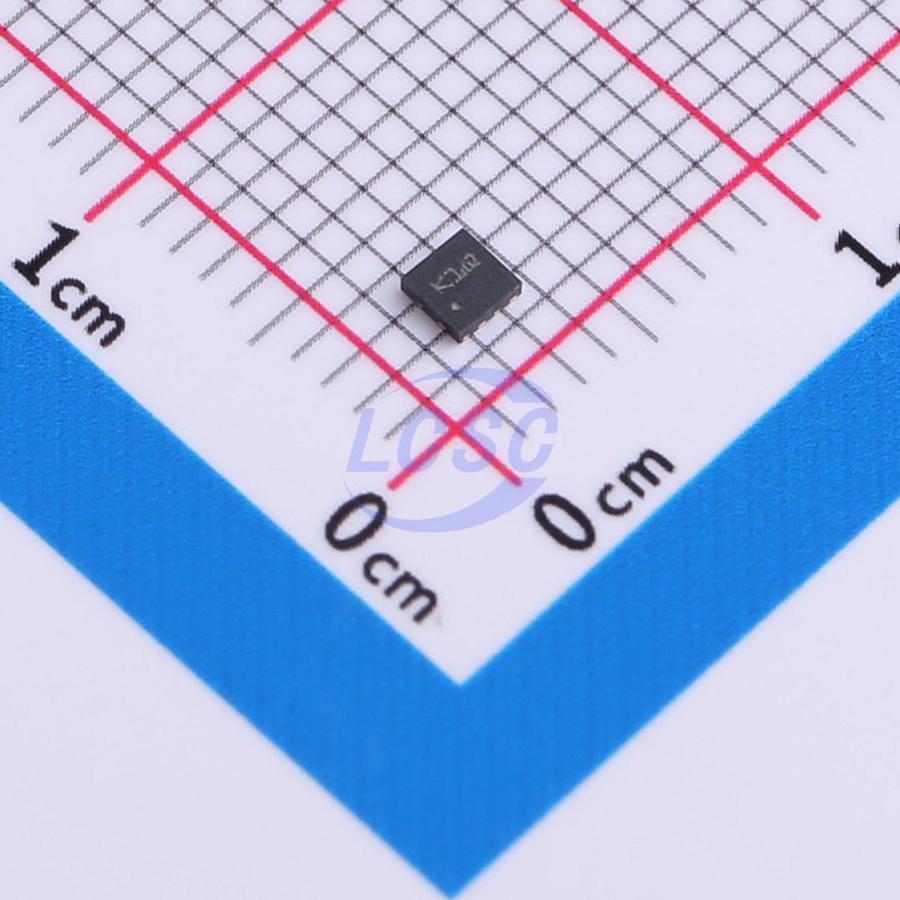

TSV912IQ2T

35mA 2 1.5mV 4.5V/us 75dB 100pA 1.1mA 8MHz Rail-to-Rail Input, Rail-to-Rail Output DFN-8(2x2) Instrumentation, Op Amps, Buffer Amps RoHS

DFN-8(2x2)ROHS3 CompliantActive

Single, dual, and quad rail-to-rail input/output 8 MHz operational amplifiers

Manufacturer: ST
Manufacturer part #: TSV912IQ2T
Store part #: C443986
Package / case: DFN-8(2x2)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11,478 in stock

#C443986

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹86.56	₹86.56
10+	₹69.87	₹698.70
30+	₹61.40	₹1,842.00
100+	₹50.55	₹5,055.00
500+	₹45.56	₹22,780.00
1,000+	₹42.96	₹42,960.00

Quantity (min 1)

1 × ₹86.56

₹86.56

excl. GST

₹102.14 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TSV912IQ2T

₹86.56 for 1 + GST

Specifications

Output Current: 35mA
Number of Channels: 2
Vos - Input Offset Voltage: 1.5mV
Slew Rate: 4.5V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 75dB
Ib - Input Bias Current: 100pA
Input Offset Voltage Drift(Vos TC): 5uV/℃
Quiescent Current: 1.1mA
Gain Bandwidth Product: 8MHz
Features: Built-in compensation;ESD protection
Input Voltage Noise Density: 21nV/√Hz@10kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.053 g

Overview

The TSV91x and TSV91xA operational amplifiers (op amps) offer low voltage operation and rail-to-rail input and output, as well as an excellent speed/power consumption ratio, providing an 8 MHz gain-bandwidth product while consuming only 1.1 mA maximum at 5 V. The op amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, battery-supplied and portable applications, as well as active filtering.

Applications

Battery-powered applications
Portable devices
Signal conditioning
Active filtering
Medical instrumentation
Automotive applications

Key features

Rail-to-rail input and output
Wide bandwidth
Low power consumption: 820 μA typ.
Unity gain stability
High output current: 35 mA
Operating from 2.5 V to 5.5 V
Low input bias current, 1 pA typ.
Low input offset voltage: 1.5 mV max. (A grade)
ESD internal protection ≥5 kV
Latch-up immunity
