STDatasheet (PDF)

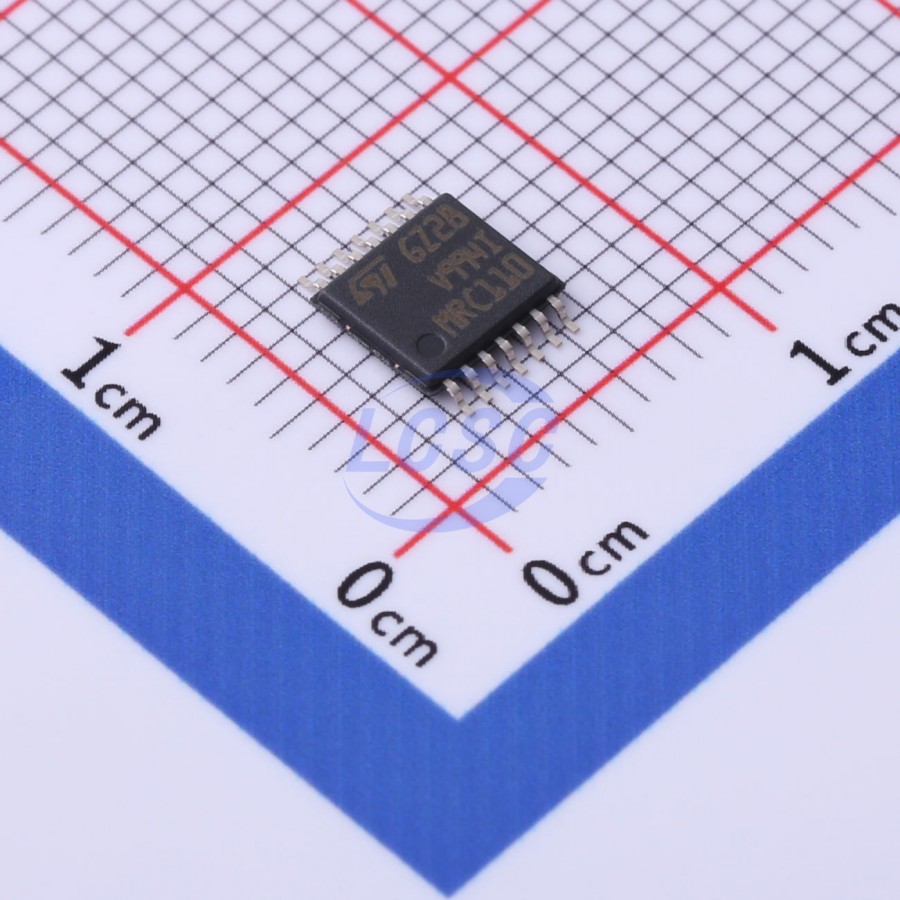

TSV994IPT
35mA 4 1.5mV 10V/us 82dB 100pA 780uA 20MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS3 CompliantActive
Rail-to-rail input/output 20 MHz GBP operational amplifiers
- Manufacturer
- ST
- Manufacturer part #
- TSV994IPT
- Store part #
- C503311
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,336 in stock
#C503311
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹520.97 | ₹520.97 |
| 10+ | ₹437.23 | ₹4,372.30 |
| 30+ | ₹384.81 | ₹11,544.30 |
| 100+ | ₹331.08 | ₹33,108.00 |
| 500+ | ₹306.94 | ₹1,53,470.00 |
| 1,000+ | ₹296.50 | ₹2,96,500.00 |
1 × ₹520.97
₹520.97
excl. GST
₹614.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TSV994IPT
₹520.97 for 1 + GST
Specifications
- Output Current
- 35mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 1.5mV
- Slew Rate
- 10V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 82dB
- Ib - Input Bias Current
- 100pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 780uA
- Gain Bandwidth Product
- 20MHz
- Features
- Decompensated stable
- Input Voltage Noise Density
- 21nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.184 g
Overview
The TSV99x and TSV99xA family of single, dual, and quad operational amplifiers offers low voltage operation and rail-to-rail input and output. These devices feature an excellent speed/power consumption ratio, offering a 20 MHz gain-bandwidth, stable for gains above 4 (100 pF capacitive load), while consuming only 1.1 mA maximum at 5 V. They also feature an ultra-low input bias current. These characteristics make the TSV99x family ideal for sensor interfaces, battery-supplied and portable applications, as well as active filtering.
Applications
- Battery-powered applications
- Portable devices
- Signal conditioning and active filtering
- Medical instrumentation
- Automotive applications
Key features
- Low input offset voltage: 1.5 mV max. (A grade)
- Rail-to-rail input and output
- Wide bandwidth 20 MHz
- Stable for gain ≥4 or ≤-3
- Low power consumption: 820 μA typ.
- High output current: 35 mA
- Operating from 2.5 V to 5.5 V
- Low input bias current, 1 pA typ.
- ESD internal protection ≥5 kV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS724XQ#C255447RUNIC · TSSOP-14 | RUNIC | TSSOP-14 | 3,944 | ₹129.20 · 3,944 in stock | View |
 | TSV994AIYPT#C2058316ST · TSSOP-14 | ST | TSSOP-14 | 20 | ₹332.71 · 20 in stock | View |
| TSV994IYPT#C2058223ST · TSSOP-14 | ST | TSSOP-14 | 10 | ₹304.05 · 10 in stock | View | |
 | AiP8034TA14.TR#C52953051Wuxi I-core Elec · TSSOP-14 | Wuxi I-core Elec | TSSOP-14 | 18 | ₹56.35 · 18 in stock | View |
 | OPA4354AIPWR#C527494TI · TSSOP-14 | TI | TSSOP-14 | 2,275 | ₹658.26 · 2,275 in stock | View |
