STDatasheet (PDF)

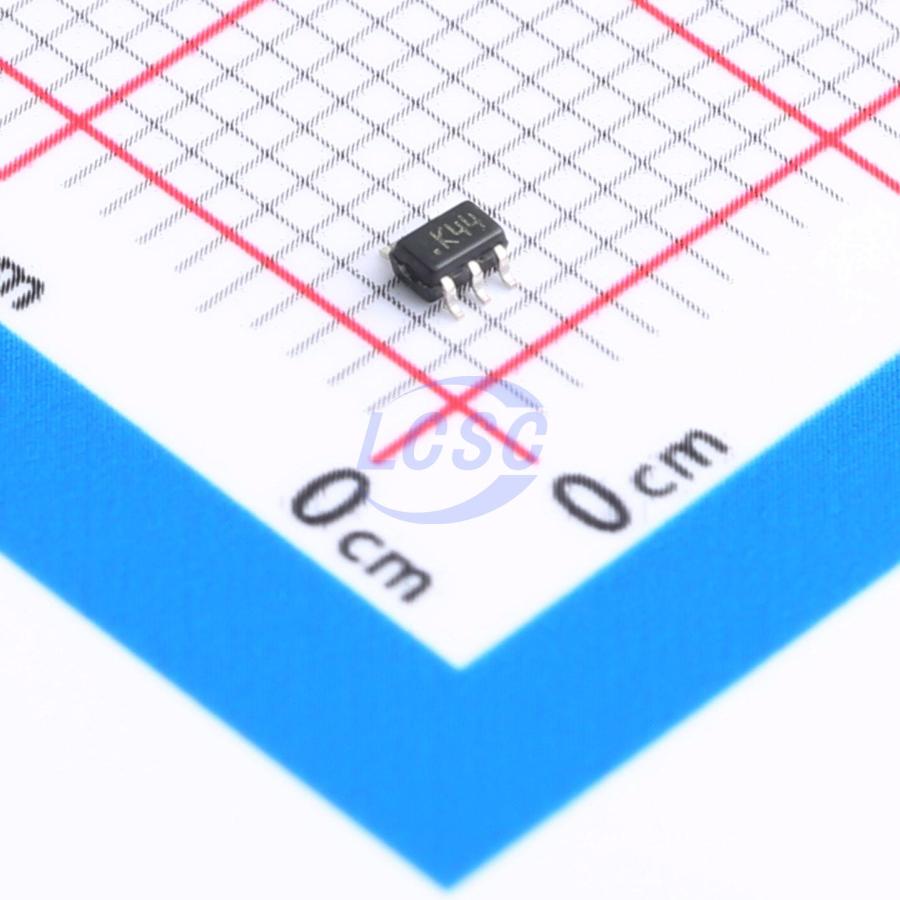

TSZ121ICT
7mA 1 1uV 0.19V/us 122dB 70pA 28uA 400kHz Rail-to-Rail Input, Rail-to-Rail Output SC-70-5 Instrumentation, Op Amps, Buffer Amps RoHS
SC-70-5ROHS3 CompliantActive
Very high accuracy zero drift micropower operational amplifiers
- Manufacturer
- ST
- Manufacturer part #
- TSZ121ICT
- Store part #
- C2058276
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,146 in stock
#C2058276
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹154.86 | ₹154.86 |
| 10+ | ₹128.54 | ₹1,285.40 |
| 30+ | ₹114.30 | ₹3,429.00 |
| 100+ | ₹97.89 | ₹9,789.00 |
| 500+ | ₹90.68 | ₹45,340.00 |
| 1,000+ | ₹87.44 | ₹87,440.00 |
1 × ₹154.86
₹154.86
excl. GST
₹182.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TSZ121ICT
₹154.86 for 1 + GST
Specifications
- Output Current
- 7mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1uV
- Slew Rate
- 0.19V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 122dB
- Ib - Input Bias Current
- 70pA
- Input Offset Voltage Drift(Vos TC)
- 10nV/℃
- Quiescent Current
- 28uA
- Gain Bandwidth Product
- 400kHz
- Features
- Zero drift / auto-zero;ESD protection
- Input Voltage Noise Density
- 60nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.095 g
Overview
The TSZ12x series of high precision operational amplifiers offer very low input offset voltages with virtually zero drift. TSZ121 is the single version, TSZ122 the dual version, and TSZ124 the quad version, with pinouts compatible with industry standards. The TSZ12x series offers rail-to-rail input and output, excellent speed/power consumption ratio, and 400 kHz gain bandwidth product, while consuming less than 40 μA at 5 V. The devices also feature an ultra-low input bias current. These features make the TSZ12x family ideal for sensor interfaces, battery-powered applications and portable applications.
Applications
- Battery-powered applications
- Portable devices
- Signal conditioning
- Medical instrumentation
Key features
- Very high accuracy and stability: offset voltage 5 μv max at 25 °C, 8 μV over full temperature range -40 °C to 125 °C.
- Rail-to-rail input and output
- Low supply voltage: 1.8 - 5.5 V
- Low power consumption: 40 μA max. at 5 V
- Gain bandwidth product: 400 kHz
- High tolerance to ESD: 4 kV HBM
- Extended temperature range: -40 to 125 °C
- Micro-packages: SC70-5, DFN8 2x2, and QFN16 3x3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| OA1ZHA22C#C2059923ST · SC-70-5 | ST | SC-70-5 | 19 | ₹351.36 · 19 in stock | View | |
| ISL28133FEZ-T7#C1857471RENESAS · SC-70-5 | RENESAS | SC-70-5 | 50 | ₹551.86 · 50 in stock | View | |
 | TLV333IDCKR#C181502TI · SC-70-5 | TI | SC-70-5 | 18,290 | ₹34.96 · 18,290 in stock | View |
 | NCV333ASQ3T2G#C892946onsemi · SC-88-5 | onsemi | SC-88-5 | 20 | ₹114.04 · 20 in stock | View |
 | NCV21871SQ3T2G#C892906onsemi · SC-88-5 | onsemi | SC-88-5 | 3 | ₹90.64 · 3 in stock | View |
