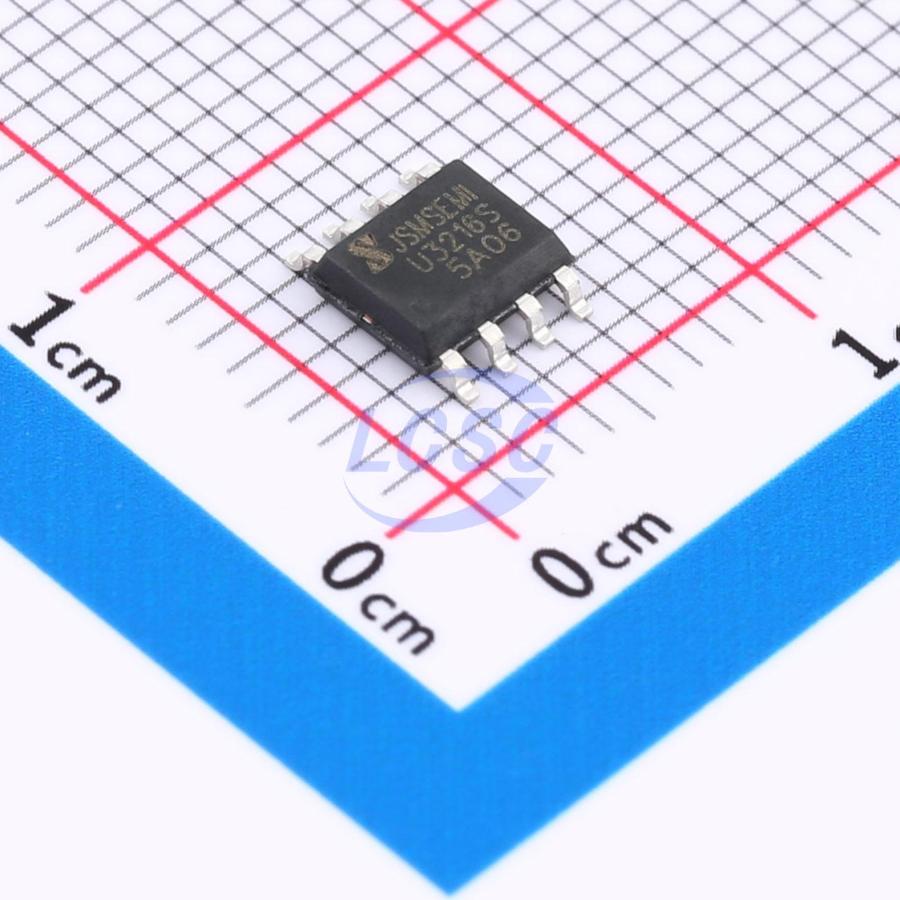

U3216S-JSM
Half-Bridge Gate Driver IC MOSFET IGBT SOP-8
4A 700V Integrated BSD Single-Phase High-Side and Low-Side In-Phase Gate Driver IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- U3216S-JSM
- Store part #
- C44606288
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,167 in stock
#C44606288
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.61 | ₹100.61 |
| 10+ | ₹79.37 | ₹793.70 |
| 30+ | ₹68.95 | ₹2,068.50 |
| 100+ | ₹58.33 | ₹5,833.00 |
| 500+ | ₹52.26 | ₹26,130.00 |
| 1,000+ | ₹49.00 | ₹49,000.00 |
1 × ₹100.61
₹100.61
excl. GST
₹118.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
U3216S-JSM
₹100.61 for 1 + GST
Specifications
- Quiescent Current
- 100uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 4A
- Rise Time
- 10ns
- Fall Time
- 6ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.105 g
Overview
The U3216S is a high-voltage, high-speed power MOSFET/IGBT high- and low-side gate driver IC with two independent propagation channels. It integrates protection circuits including high- and low-side UVLO and overvoltage clamp circuits, and features high-current pulse output capability. The logic input levels are compatible with CMOS or LSTTL logic outputs as low as 3.3V. The output current capability can reach up to 4A, and the floating channel supports a maximum operating voltage of 700V. It can be used to drive N-channel high-voltage power MOSFETs/IGBTs and other devices. Available in SOP-8 package, it operates over a temperature range of -40℃ to 125℃.
Applications
- Motor drive and control
- Power tools
- General-purpose inverters
- Power conversion systems
- Servo drives
- Refrigerators/Air conditioners
Key features
- Floating channel bootstrap operation
- Maximum operating voltage up to 700V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt immunity up to ±50V/nsec
- Vs negative voltage tolerance down to -9V
- Gate drive voltage: 10V to 20V
- High- and low-side UVLO
- UVLO positive threshold 6V
- UVLO negative threshold 5.5V
- Turn-on/turn-off propagation delay
- Ton/Toff = 150ns/150ns
- High- and low-side delay matching
- Drive current capability:
- Source/Sink = 4.0A/4.0A
- RoHS compliant
- SOP-8
