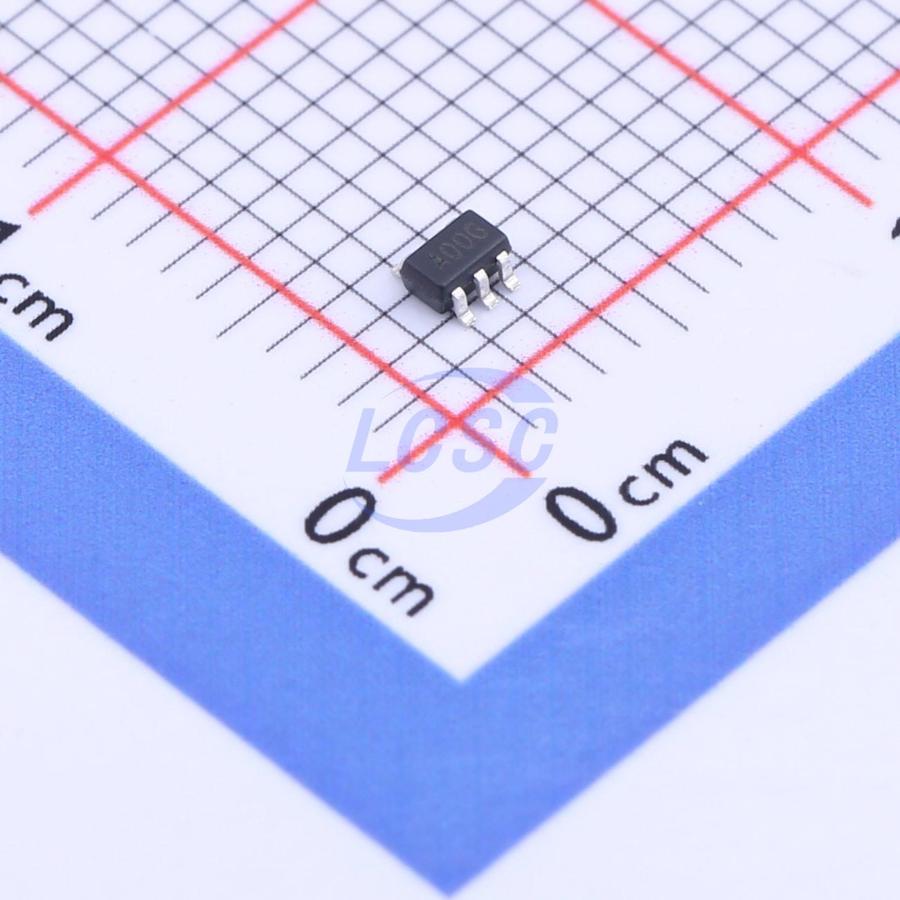

U74AHC1G00G-AL5-R
1uA 2V~5.5V 8.5ns@5V,50pF SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
- Manufacturer
- UTC
- Manufacturer part #
- U74AHC1G00G-AL5-R
- Store part #
- C2848649
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,160 in stock
#C2848649
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.81 | ₹78.10 |
| 100+ | ₹6.09 | ₹609.00 |
| 300+ | ₹5.23 | ₹1,569.00 |
| 3,000+ | ₹4.58 | ₹13,740.00 |
| 6,000+ | ₹4.05 | ₹24,300.00 |
| 9,000+ | ₹3.80 | ₹34,200.00 |
10 × ₹7.81
₹78.10
excl. GST
₹92.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
U74AHC1G00G-AL5-R
₹78.10 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Logic Family
- 74AHC
- Output Logic Level - High
- 1.9V;2.58V;3.94V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Propagation Delay
- 8.5ns@5V,50pF
- Output Logic Level - Low
- 100mV;440mV
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
This device is a 2-input NAND gate implementing the logic function Y = A × B (with overbar).
Key features
- Operating voltage range: 2~5.5V
- Low power consumption: Icc = 1.0μA (max)
- High speed: tPD = 4.3ns (typ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74VHC1G132DFT1G-TP#C53100498TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,160 | ₹6.34 · 2,160 in stock | View |
 | 74AHC1G00GW#C19829640TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 5,890 | ₹5.89 · 5,890 in stock | View |
 | TP74AHC1G00C5#C52205177TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,990 | ₹7.38 · 2,990 in stock | View |
 | 74AHC1G00SE-TP#C52098183TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,990 | ₹6.42 · 2,990 in stock | View |
 | SN74AHC1G00DCKR#C19829634TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 5,910 | ₹7.03 · 5,910 in stock | View |
