UTCDatasheet (PDF)

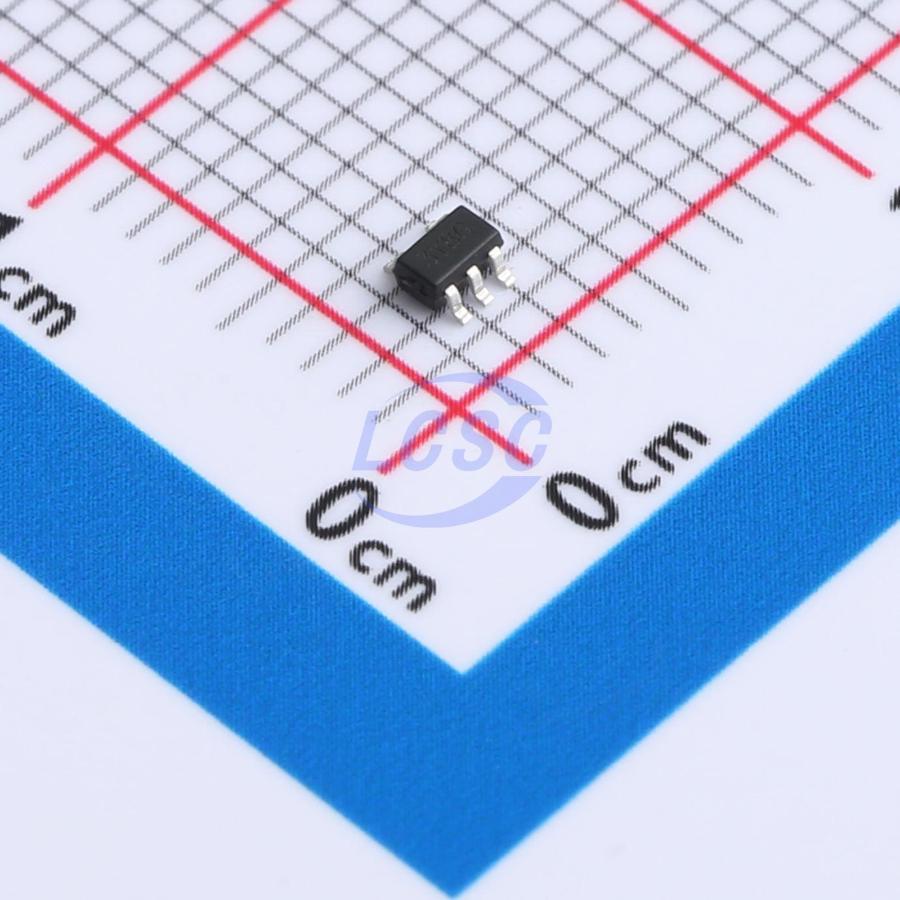

U74LVC1G08G
10uA 1.65V~5.5V 6ns@5V,50pF SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
2-INPUT AND GATE
- Manufacturer
- UTC
- Manufacturer part #
- U74LVC1G08G
- Store part #
- C7494898
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,855 in stock
#C7494898
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.69 | ₹63.45 |
| 50+ | ₹10.09 | ₹504.50 |
| 150+ | ₹8.80 | ₹1,320.00 |
| 500+ | ₹7.83 | ₹3,915.00 |
| 3,000+ | ₹7.05 | ₹21,150.00 |
| 6,000+ | ₹6.67 | ₹40,020.00 |
5 × ₹12.69
₹63.45
excl. GST
₹74.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
U74LVC1G08G
₹63.45 for 5 + GST
Specifications
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Input Logic Level - High
- 1.7V;2V
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 2;2
- Propagation Delay
- 6ns@5V,50pF
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.115 g
Overview
This device has power-down protective circuit to prevent device form destruction when it is powered down.
Key features
- The U74LVC1G08 is a 2-input AND gate which provides the Function Y = A × B.
- Operation Voltage Range: 1.65V ~ 5.5V
- Low Power Current: lCC = 10μA (Max.)
- ±24mA Output Drive (VCC = 3.0V)
- Power Down Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | U74LVC1G08G-AL5-R#C7435185UTC · SOT-353 | UTC | SOT-353 | 650 | ₹6.62 · 650 in stock | View |
 | SGM7SZ08YC5G/TR#C700332SGMICRO · SC-70-5 | SGMICRO | SC-70-5 | 5,550 | ₹25.93 · 5,550 in stock | View |
 | EM74LVC1G09GW#C49188141EnergyMath · SOT-353 | EnergyMath | SOT-353 | 3,000 | ₹7.26 · 3,000 in stock | View |
 | SN74LVC1G08DCKR#C5279048TWGMC · SC-70-5 | TWGMC | SC-70-5 | 180 | ₹8.78 · 180 in stock | View |
 | SN74AHC1G08DCKR-MS#C30602476MSKSEMI · SC-70-5 | MSKSEMI | SC-70-5 | 2,140 | ₹9.59 · 2,140 in stock | View |
