UTCDatasheet (PDF)

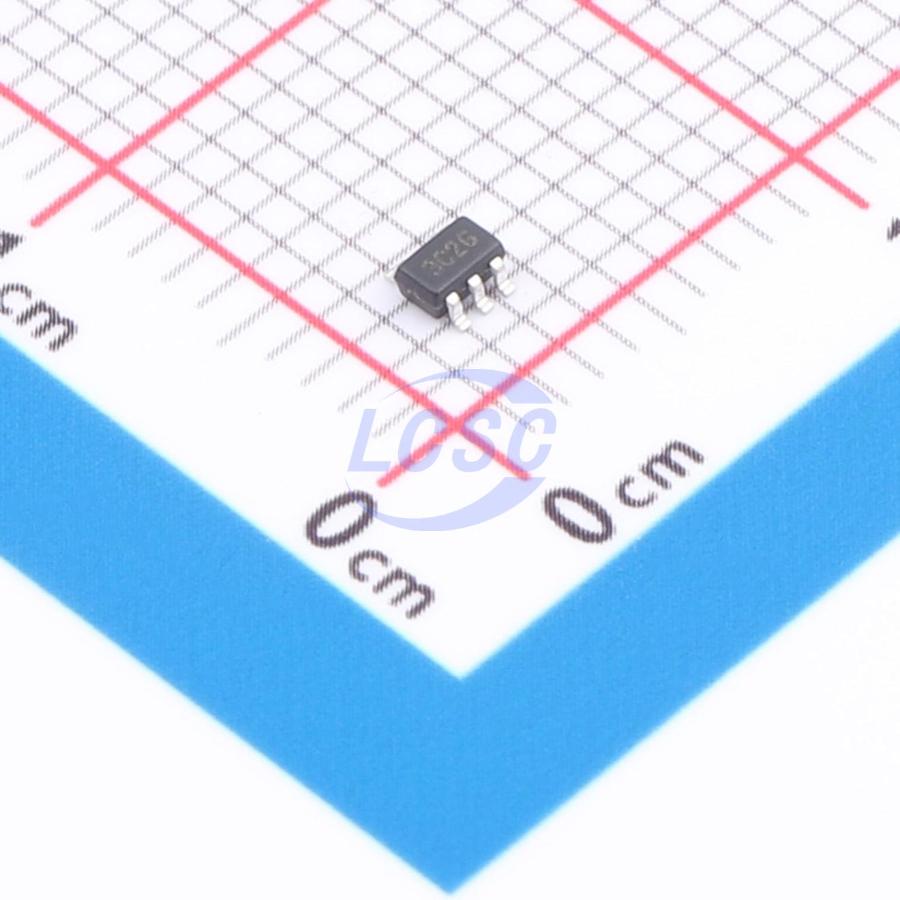

U74LVC1G32G-AL5-R
1.65V~5.5V 5ns@5V,15pF 10uA SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- UTC
- Manufacturer part #
- U74LVC1G32G-AL5-R
- Store part #
- C52177501
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,040 in stock
#C52177501
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.65 | ₹76.50 |
| 100+ | ₹6.10 | ₹610.00 |
| 300+ | ₹5.32 | ₹1,596.00 |
| 3,000+ | ₹4.74 | ₹14,220.00 |
| 6,000+ | ₹4.27 | ₹25,620.00 |
| 9,000+ | ₹4.05 | ₹36,450.00 |
10 × ₹7.65
₹76.50
excl. GST
₹90.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
U74LVC1G32G-AL5-R
₹76.50 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;300mV;400mV;450mV;550mV
- Propagation Delay
- 5ns@5V,15pF
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.3V;2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.138 g
Overview
U74LVC1G32 is a single 2-input OR gate that implements the function Y = A + B in positive logic circuits. The device features a power-off protection circuit to prevent damage during power-down conditions.
Key features
- Operating voltage range: 1.65V ~ 5.5V
- Low quiescent current: ICC = 10μA (max)
- ±24mA output drive (Vcc = 3.0V)
- Power-off protection
- Package types: SOT-23-5 (JEDEC TO-236), SOT-353, SOT-25, X1DFN14510-6, X2DFN1010-6
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MSN74LVC1G32DCKR#C42403094MSKSEMI · SC-70-5 | MSKSEMI | SC-70-5 | 1,810 | ₹7.25 · 1,810 in stock | View |
| SN74LVC1G32DCKT#C2867062TI · SC-70-5 | TI | SC-70-5 | 435 | ₹6.39 · 435 in stock | View | |
 | 74LVC1G32GW-Q100H#C548334Nexperia · TSSOP-5-1.3mm | Nexperia | TSSOP-5-1.3mm | 2,790 | ₹47.95 · 2,790 in stock | View |
 | SN74LVC1G32DCKR#C7840TI · SC-70-5 | TI | SC-70-5 | 37,220 | ₹9.30 · 37,220 in stock | View |
 | 74LVC1G32GW,125-JSM#C53114314JSMSEMI · SOT-353 | JSMSEMI | SOT-353 | 2,550 | ₹5.38 · 2,550 in stock | View |
