Global Connector TechnologyDatasheet (PDF)

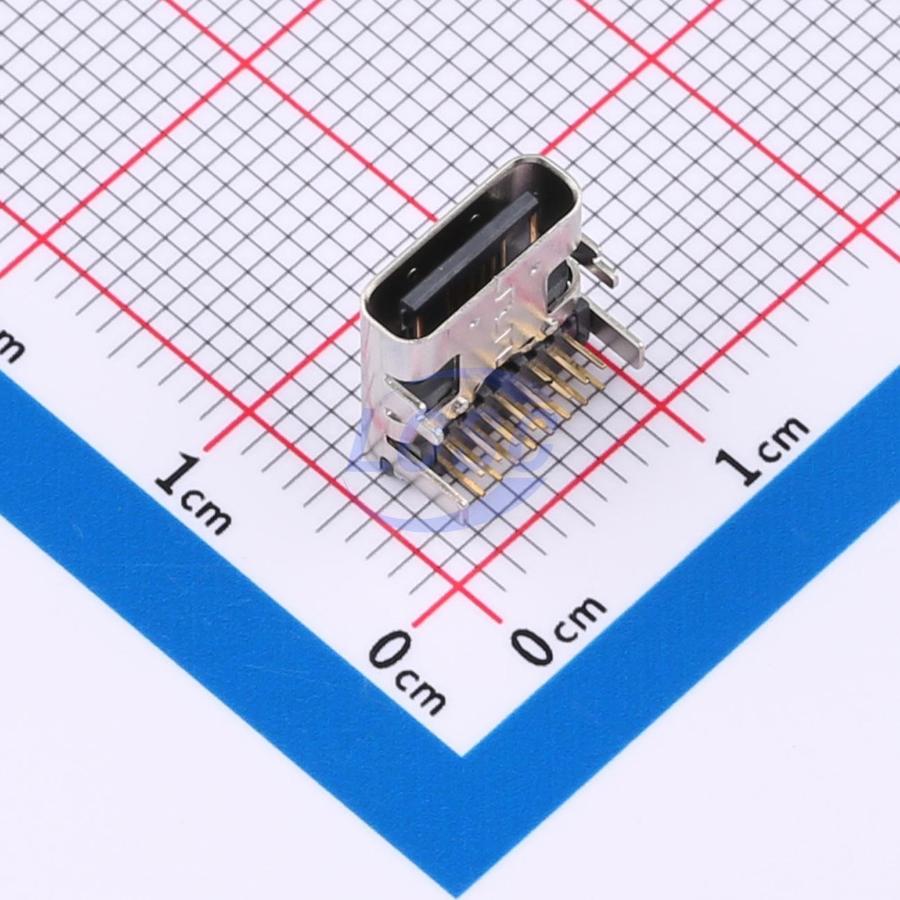

USB4085-GF-A
USB 2.0 1 -40℃~+85℃ Right Angle Through Hole USB, DVI, HDMI Connector Assemblies RoHS
PopularThrough HoleROHS3 CompliantActive
USB 2.0 Type C Receptacle, Dip Type, PCB Top Mount
- Manufacturer
- Global Connector Technology
- Manufacturer part #
- USB4085-GF-A
- Store part #
- C7095263
- Package / case
- Through Hole
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,650 in stock
#C7095263
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹187.09 | ₹187.09 |
| 10+ | ₹155.61 | ₹1,556.10 |
| 30+ | ₹138.25 | ₹4,147.50 |
| 100+ | ₹118.71 | ₹11,871.00 |
| 700+ | ₹110.03 | ₹77,021.00 |
| 1,400+ | ₹106.13 | ₹1,48,582.00 |
1 × ₹187.09
₹187.09
excl. GST
₹220.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 700 per reel
USB4085-GF-A
₹187.09 for 1 + GST
Specifications
- Protocol Standard
- USB 2.0
- Number of Ports
- 1
- Connector Type
- Type-C
- Voltage Rating
- 48V
- Operating Temperature
- -40℃~+85℃
- Gender
- Female
- Mounting Type
- Right Angle
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 700 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.08 g
Overview
Key features
- Insulator: LCP, UL 94V-0, black
- Contacts: copper alloy (T = 0.15mm)
- Shell: stainless steel (T = 0.30mm)
- Inner ground shielding shell: stainless steel (T = 0.10mm)
- Mid plate: stainless steel (T = 0.15mm)
- Contact mating area plating: see ordering grid
- Contact solder tail plating: flash gold
- Contact underplating: 50μm nickel minimum
- Shell plating: 50μm nickel minimum
- Inner ground shielding shell and mid plate plating: clear
- Current rating: VBus pins 5.00A total; GND pins 6.25A total; A5/B5 pins 1.25A; all other pins 0.25A per pin
- Voltage rating: 48V DC
- Power rating: 240W
- Contact resistance: 40mΩ max initial; 50mΩ max after testing
- Dielectric withstanding voltage: 100V AC
- Insulation resistance: 100MΩ minimum
- Operating temperature: -40°C ~ 85°C
- Mating force: insertion force 5 ~ 20N; withdrawal force after testing 6 ~ 20N
- Durability: 20,000 cycles
- Carrier tape material: polystyrene (PS)
- Top tape material: PE
- Reel material: polystyrene (PS)
- Bag material: PE
