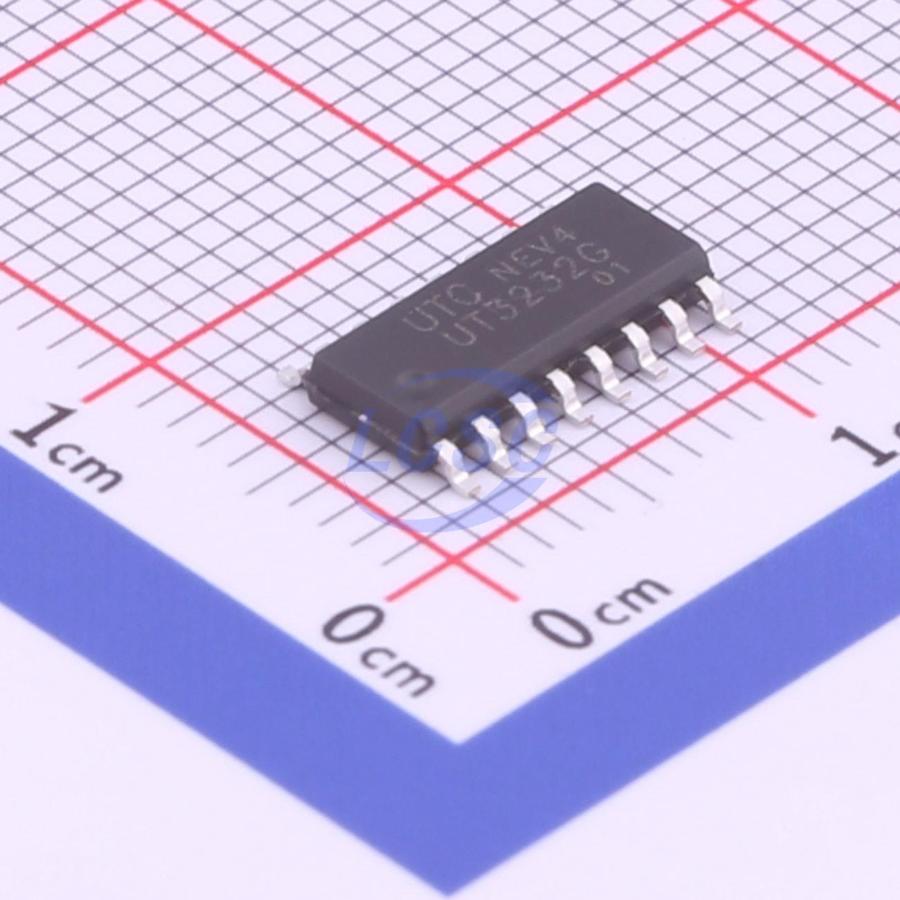

UT3232G-S16-R
Transceiver 3V~5.5V 250Kbps SOP-16 Drivers, Receivers, Transceivers
SOP-16RoHSActive
UT3232 3.0V TO 5.5V LOW POWER MULTICHANNEL RS-232 LINE TRANSCEIVERS USING FOR 0.1uF EXTERNAL CAPACITORS
- Manufacturer
- UTC
- Manufacturer part #
- UT3232G-S16-R
- Store part #
- C84913
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45,005 in stock
#C84913
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.92 | ₹219.60 |
| 50+ | ₹35.01 | ₹1,750.50 |
| 150+ | ₹31.18 | ₹4,677.00 |
| 500+ | ₹26.41 | ₹13,205.00 |
| 2,500+ | ₹23.93 | ₹59,825.00 |
| 5,000+ | ₹22.66 | ₹1,13,300.00 |
5 × ₹43.92
₹219.60
excl. GST
₹259.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UT3232G-S16-R
₹219.60 for 5 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- 0℃~+70℃
- ESD Protect
- ±8kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 0.3mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.354 g
Overview
The UTC UT3232 has two receivers and two drivers, and a dual charge-pump circuit. The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3.0V to 5.5V supply. The device operates at data signaling rates up to 250kbit/s and a maximum of 35V/μs driver output slew rate.
Key features
- Exceeds ±8KV ESD Protection(HBM) for RS-232 I/O Pins
- Meets the Requirements of TIA/EIA-232-F and ITU V.28 Standards
- Operates With 3.0V to 5.5V VCC Supply
- Operates Up To 250kbit/s Data Rate
- Two Drivers and Two Receivers
- External Capacitors 4×0.1μF
- Accepts 5.0V Logic Input With 3.3V Supply
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP3232EEN#C6396155JSMSEMI · SOP-16 | JSMSEMI | SOP-16 | 27,405 | ₹39.88 · 27,405 in stock | View |
 | MAX3232CDR(UMW)#C5721293UMW · SOP-16 | UMW | SOP-16 | 1,880 | ₹40.43 · 1,880 in stock | View |
 | MAX3232IDR(UMW)#C5721296UMW · SOP-16 | UMW | SOP-16 | 6,190 | ₹42.27 · 6,190 in stock | View |
 | TRS3232ECDR#C2867695TI · SOIC-16 | TI | SOIC-16 | 3,355 | ₹170.89 · 3,355 in stock | View |
 | MAX3232IDR-JSM#C41382480JSMSEMI · SOP-16 | JSMSEMI | SOP-16 | 505 | ₹41.99 · 505 in stock | View |
