SiChangeDatasheet (PDF)
XC101S051

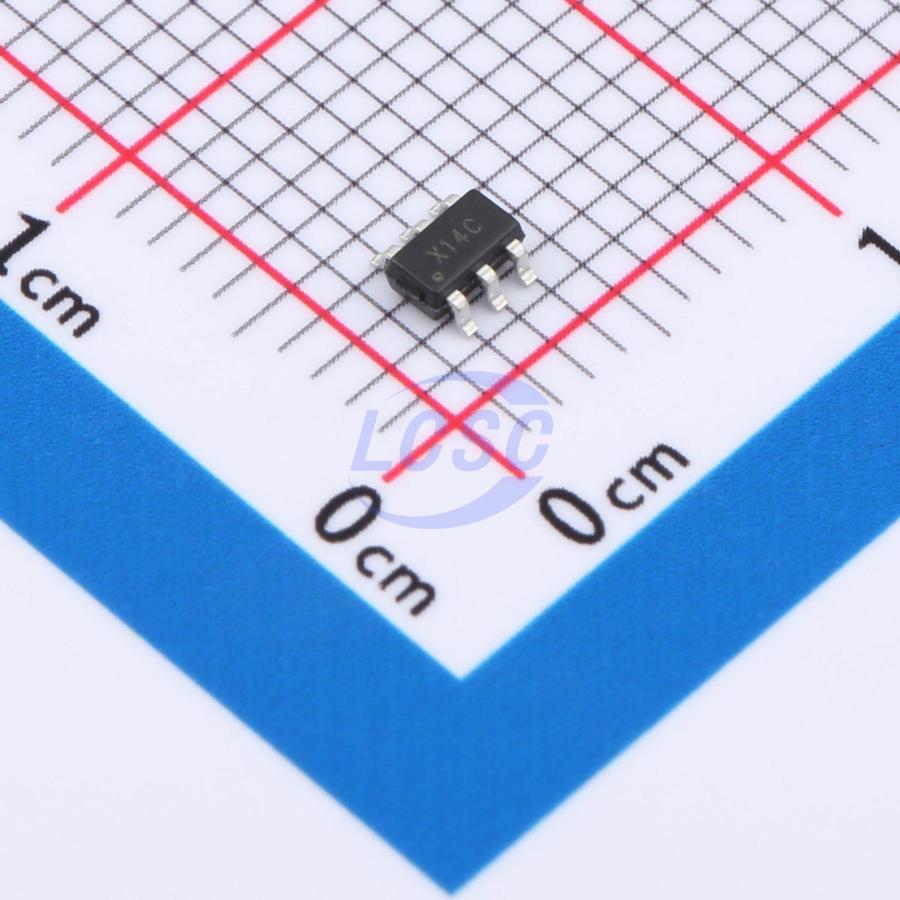

10 Bit Analog to Digital Converter 1 Input SAR SOT-23-6
SOT-23-6RoHSActive
Ultra-low-power 10-bit SAR analog-to-digital converter
- Manufacturer
- SiChange
- Manufacturer part #
- XC101S051
- Store part #
- C23377937
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,020 in stock
#C23377937
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.16 | ₹136.16 |
| 10+ | ₹112.53 | ₹1,125.30 |
| 30+ | ₹99.74 | ₹2,992.20 |
| 100+ | ₹85.00 | ₹8,500.00 |
| 500+ | ₹78.49 | ₹39,245.00 |
| 1,000+ | ₹75.68 | ₹75,680.00 |
1 × ₹136.16
₹136.16
excl. GST
₹160.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC101S051
₹136.16 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Quiescent Current (Iq)
- 480uA
- Voltage - Supply
- 3.3V~5.25V
- Number of Channels
- 1
- Integral non - linearity
- 1LSB
- Voltage Reference
- External
- Clock/Oscillator
- External
- Clock Frequency
- 10MHz
- Resolution(Bits)
- 10;200kHz
- S/N Ratio
- 61.4dB
- ADC architecture
- SAR
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
The XC101S051 is an ultra- low power, small size, single- channel 10- bit analog- to- digital converter with a high speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the XC101S051 is fully specified over a sample rate range of 200 KSPS to 500 KSPS. The converter is based upon a successive- approximation register architecture with an internal track- and- hold circuit. The XC101S051 is available in a 6- pin SOT- 23 package and has an operating temperature range of - 40℃ to 85℃. The XC101S051 is a drop- in replacement for the ADC101S051 and consumes only half dynamic power of their counterpart.
Applications
- Battery Powered Systems
- Instrumentation and Control Systems
- Remote Data Acquisition
- Portable Systems
Key features
- Single Power Supply Range: 3.3V to 5.25V
- Specified Over a Range of Sample Rates Throughput Rate: 200 - 500 KSPS
- ±1 LSB INL, ±0.75 USB DNL
- Zero Latency
- SPI/DSP/MICROWIRE/QSPI Compatible Serial Interface
- Variable Power Management
- Low Power (XC101S051 typical): 1.60mW (3.3V, 500KSPS), 3.80mW (5V, 500KSPS)
- Second- Source for ADC101S051
- 6- Pin SOT- 23 Package
