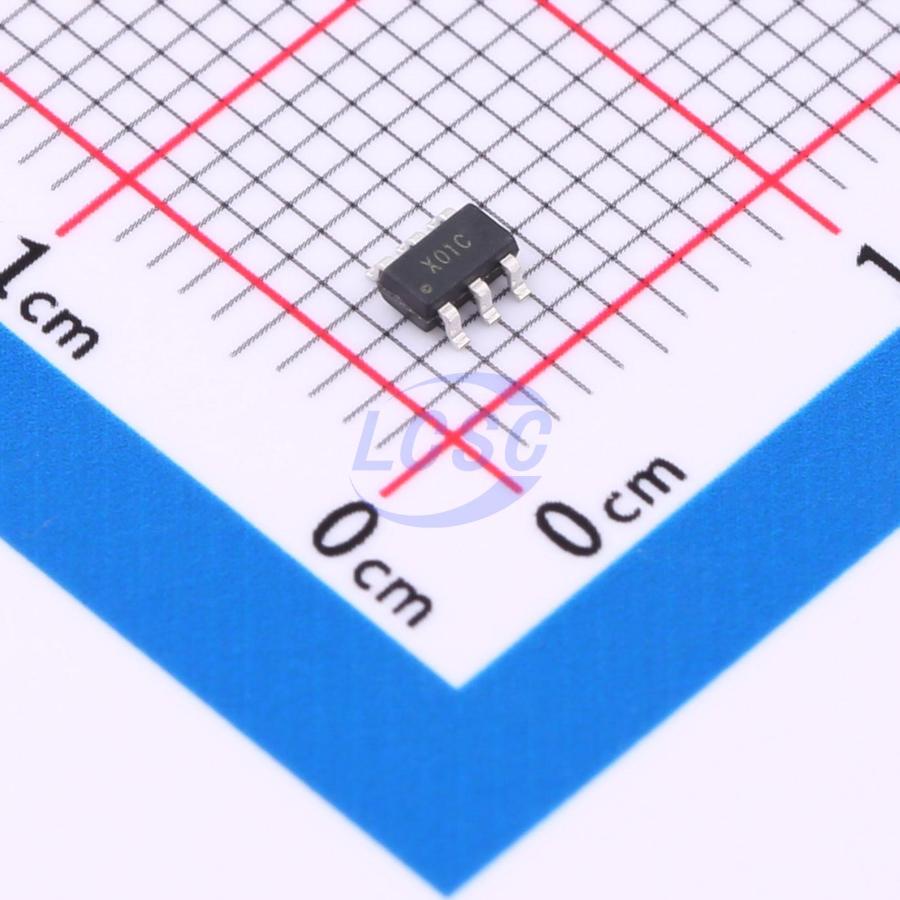

XC121S101
SPI 4V~5.25V SOT-23-6 Analog to Digital Converters (ADC)
SOT-23-6RoHSActive
500 to 800 KSPS, Ultra Low Power, 12-Bit SAR Analog-to-Digital Converter
- Manufacturer
- SiChange
- Manufacturer part #
- XC121S101
- Store part #
- C23377933
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,470 in stock
#C23377933
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹167.52 | ₹167.52 |
| 10+ | ₹138.40 | ₹1,384.00 |
| 30+ | ₹122.54 | ₹3,676.20 |
| 100+ | ₹104.50 | ₹10,450.00 |
| 500+ | ₹96.47 | ₹48,235.00 |
| 1,000+ | ₹92.78 | ₹92,780.00 |
1 × ₹167.52
₹167.52
excl. GST
₹197.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC121S101
₹167.52 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Voltage - Supply
- 4V~5.25V
- Number of Channels
- 1
- Integral non - linearity
- 1.25LSB
- Voltage Reference
- External
- Clock/Oscillator
- External
- Resolution(Bits)
- 12;500kHz
- S/N Ratio
- 72.5dB
- ADC architecture
- SAR
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
The XC121S101 is an ultra- low power, small size, single- channel 12- bit analog- to- digital converter with a high speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the XC121S101 is fully specified over a sample rate range of 500 KSPS to 800 KSPS from a single 4 V to 5.25 V supply. The converter is based upon a successive- approximation register architecture with an internal track- and- hold circuit. The XC121S101 is available in a 6- pin SOT- 23 package and has an operating temperature range of - 40℃ to 85℃. The XC121S101 is a drop- in replacement for the ADC121S101 and consumes only half dynamic power of their counterpart.
Applications
- Battery Powered Systems
- Base Band Converters in Radio Communication
- Portable Systems
- Remote Data Acquisition
- Instrumentation and Control Systems
Key features
- Single 4V to 5.25V Supply Operation for XC121S101
- Throughput Rate: 500 to 800 KSPS for XC121S101
- Specified Over a Range of Sample Rates
- ±1.25 LSB INL, ±1.5 SB DNL (XC121S101)
- Zero Latency
- SPI/DSP/MICROWIREM/QSPIM Compatible Serial Interface
- Variable Power Management
- Low Power (XC121S101 typical): 3.60mW (4V,800 KSPS), 6.05mW (5V,800 KSPS)
- Second- Source for ADC121S101
- 6- Pin SOT- 23 Package
