SiChangeDatasheet (PDF)

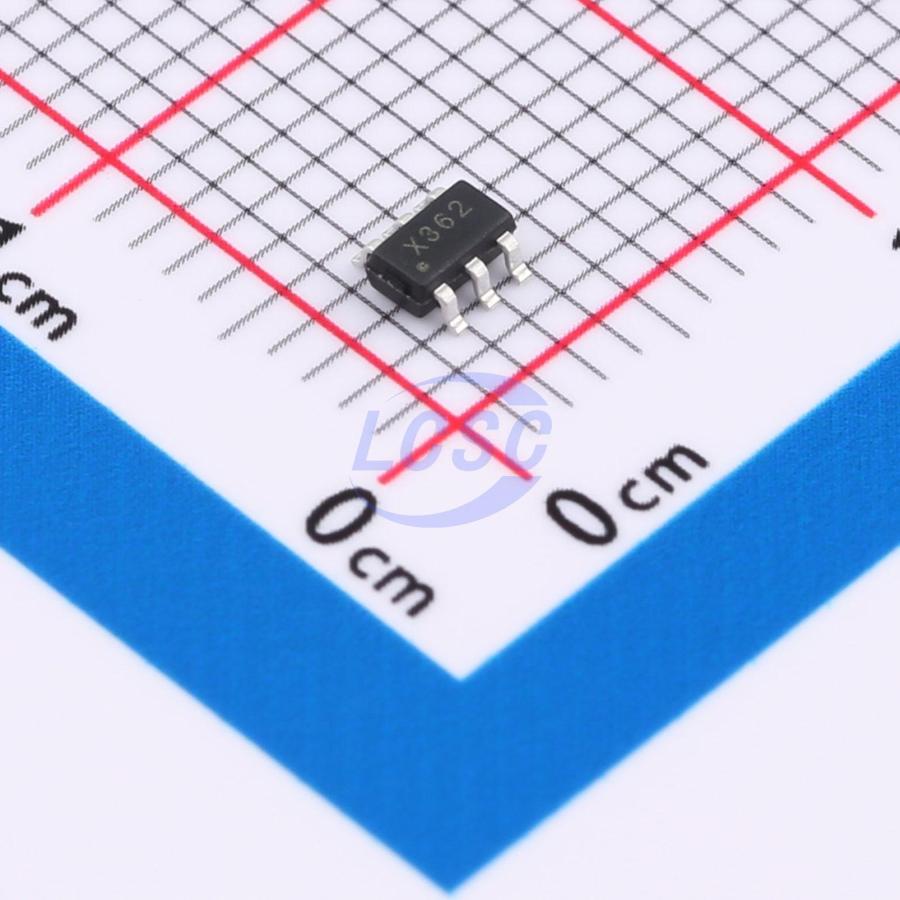

XC2362
12 Bit Analog to Digital Converter 1 Input SAR SOT-23-6
SOT-23-6RoHSActive
500 ksps, 3.3V - 5.25V, ultra-low power consumption, 12-bit SAR analog-to-digital converter
- Manufacturer
- SiChange
- Manufacturer part #
- XC2362
- Store part #
- C23377959
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,007 in stock
#C23377959
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹246.79 | ₹246.79 |
| 10+ | ₹208.88 | ₹2,088.80 |
| 30+ | ₹185.05 | ₹5,551.50 |
| 100+ | ₹160.77 | ₹16,077.00 |
| 500+ | ₹149.72 | ₹74,860.00 |
| 1,000+ | ₹144.96 | ₹1,44,960.00 |
1 × ₹246.79
₹246.79
excl. GST
₹291.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC2362
₹246.79 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Quiescent Current (Iq)
- 500uA
- Voltage - Supply
- 3.3V~5.25V
- Number of Channels
- 1
- Integral non - linearity
- 0.5LSB
- Clock/Oscillator
- External
- Clock Frequency
- 10MHz
- Features
- Power-on reset
- Resolution(Bits)
- 12;500kHz
- S/N Ratio
- 72.2dB
- DNL (LSB)
- 0.5LSB
- ADC architecture
- SAR
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
The XC2362 is a 12- bit, high speed, low power, and small- sized Successive- Approximation- Register (SAR) ADC. The supply current drops at lower sampling rates because the device automatically power down after conversion. The full- scale input of the XC2362 is 0 V to VDD or VREF. This device can operate from a single 3.3 V to 5.25 V supply with a 500 KSPS throughput. The XC2362 is available in a 6- pin SOT- 23 package and has an operating temperature range of - 40℃ to 85℃ The XC2362 is a drop- in replacement for the LTC2362 and consumes only one third dynamic power of their counterpart.
Applications
- Communication Systems
- Data Acquisition Systems
- Handheld Portable Devices
- Uninterrupted Power Supplies
- Battery- Operated Systems
- Automotive
Key features
- 12- Bit Resolution
- Low Power (XC2362 typical): 1.68mW (3.3V, 500 KSPS), 2.50mW (4.0V, 500 KSPS)
- Single 3.3 V to 5.25 V Supply Operation for XC2362
- Fast Throughput Rate: 500 KSPS for XC2362
- ±0.5 LSB INL, ±0.5 LSB DNL
- No Data Latency
- SPI/MICROWIRE Compatible Serial Interface
- Guaranteed Operation from - 40°C to 85°C
- 6- Pin SOT- 23 Package
- Second- Source for LTC2362
