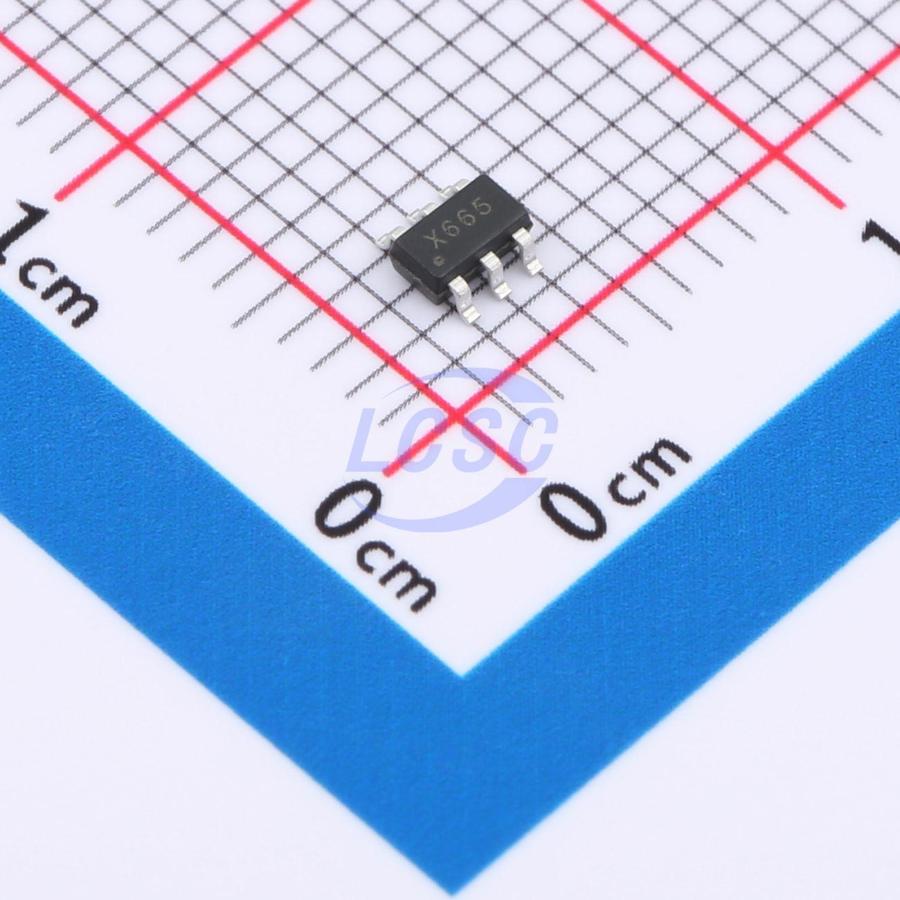

XC11665
SPI 3.3V~5.25V SOT-23-6 Analog to Digital Converters (ADC)
SOT-23-6RoHSActive
500-KSPS, ULTRALOW POWER, 3.3V - 5.25V, 12-BIT SAR ANALOG-TO-DIGITAL CONVERTER
- Manufacturer
- SiChange
- Manufacturer part #
- XC11665
- Store part #
- C23377963
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,099 in stock
#C23377963
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹264.35 | ₹264.35 |
| 10+ | ₹242.03 | ₹2,420.30 |
| 30+ | ₹228.16 | ₹6,844.80 |
| 100+ | ₹213.86 | ₹21,386.00 |
| 500+ | ₹207.37 | ₹1,03,685.00 |
| 1,000+ | ₹204.55 | ₹2,04,550.00 |
1 × ₹264.35
₹264.35
excl. GST
₹311.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC11665
₹264.35 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Voltage - Supply
- 3.3V~5.25V
- Number of Channels
- 1
- Integral non - linearity
- 0.5LSB
- Voltage Reference
- External
- Clock/Oscillator
- External
- Clock Frequency
- 10MHz
- Features
- Auto calibration
- Resolution(Bits)
- 12;500kHz
- S/N Ratio
- 72dB
- DNL (LSB)
- 0.5LSB
- ADC architecture
- SAR
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
The XC11665 is a 12- bit, high speed, low power, and small- sized Successive- Approximation- Register (SAR) ADC. The supply current drops at lower sampling rates because the device automatically power down after conversion. The XC11665 version can operate from a single 3.3V to 5.25V supply with a 500- KSPS throughput. The XC11665 is available in a 6- pin SOT- 23 package and has an operating temperature range of - 40℃ to 85℃ The XC11665 is a drop- in replacement for the MAX11665 and consumes only half dynamic power of their counterpart.
Applications
- Data Acquisition
- Portable Data Logging
- Medical Instrumentation
- Battery- Operated Systems
- Communication Systems
- Automotive
Key features
- Single 3.3V to 5.25V Supply Operation for XC11665
- Fast Throughput Rate: 500 KSPS
- 12- Bit Resolution
- Low Power (XC11665 typical): 1.60mW (3.3 V, 500 KSPS) 2.40mW (4.0 V, 500 KSPS)
- ±0.5 LSB INL, ±0.5 LSB DNL
- No Data Latency
- SPI/QSPI/MICROWIRE Compatible Serial Interface
- Guaranteed Operation from - 40°C to 85°C
- 6- Pin SOT- 23 Package
- Second- Source for MAX11665
