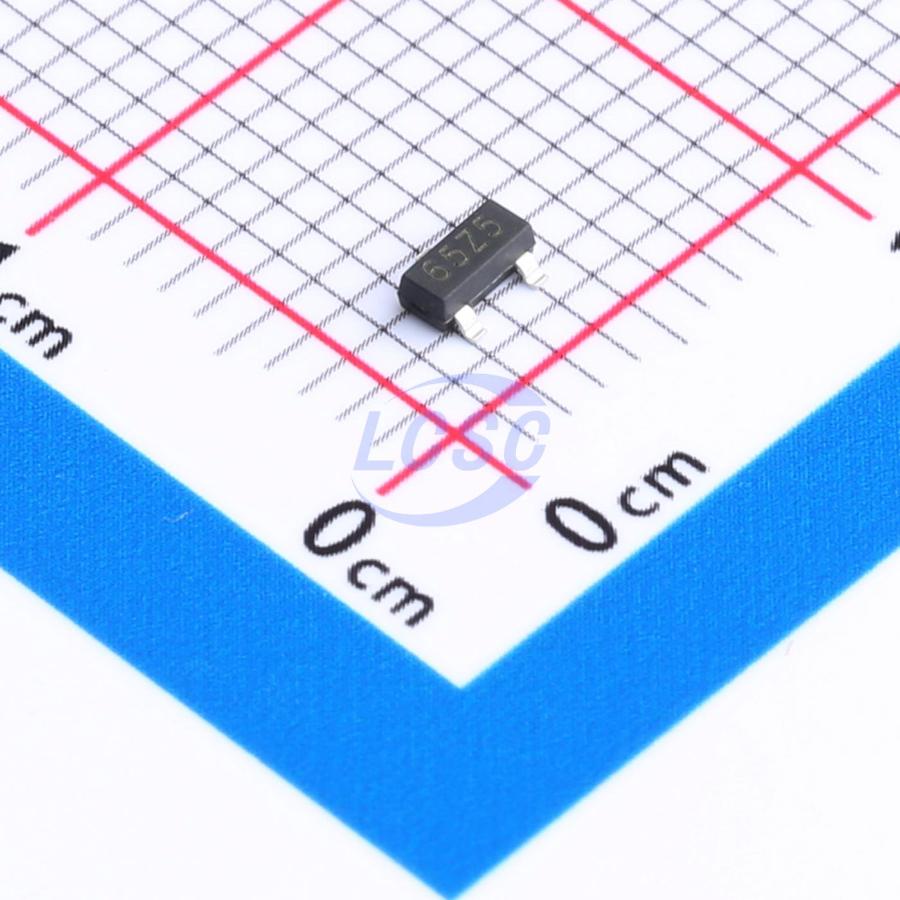

XC6206P302MR-MS
3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
High-precision, low-power 3-terminal positive voltage regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- XC6206P302MR-MS
- Store part #
- C5252898
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,600 in stock
#C5252898
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.32 | ₹66.40 |
| 200+ | ₹2.61 | ₹522.00 |
| 600+ | ₹2.21 | ₹1,326.00 |
| 3,000+ | ₹1.89 | ₹5,670.00 |
| 9,000+ | ₹1.68 | ₹15,120.00 |
| 21,000+ | ₹1.57 | ₹32,970.00 |
20 × ₹3.32
₹66.40
excl. GST
₹78.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6206P302MR-MS
₹66.40 for 20 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+85℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 6.5V
- Output Current
- 250mA
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.034 g
Overview
XC6206PXXXMR-MS series are a highly precise, lower consumption, 3 terminal, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6206PXXXMR-MS consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltages are internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 3.6V. XC6206PXXXMR-MS series are available in SOT-23 packages.
Applications
- Battery-powered equipment
- Reference voltage sources
- Cameras, video cameras
- Portable AV systems
- Mobile phones
- Portable games
Key features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
- Low Quiescent Current: 8uA at 6V
- Output voltage accuracy: tolerance ±2.5%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7330-A-MS#C7434224MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 2,150 | ₹7.55 · 2,150 in stock | View |
 | HT7330-1-MS#C7434221MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 1,130 | ₹8.93 · 1,130 in stock | View |
 | MCP1700T-3002E/TT(MS)#C20627189MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 1,360 | ₹19.53 · 1,360 in stock | View |
 | AP2125N-3.0TRG1(MS)#C22365434MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 3,000 | ₹14.80 · 3,000 in stock | View |
