SiChangeDatasheet (PDF)

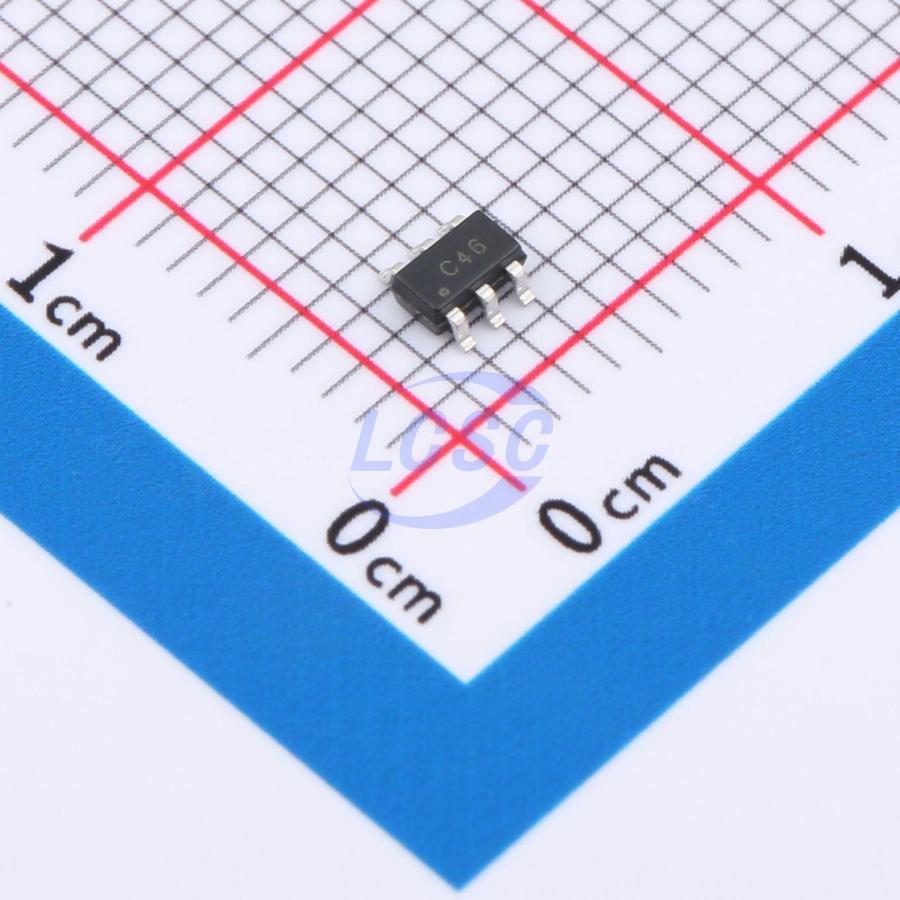

XC7477
SPI 4V~5.25V SOT-23-6 Analog to Digital Converters (ADC)
SOT-23-6RoHSActive
800-KSPS,4V-5.25V,10-BIT SAR ANALOG-TO-DIGITAL CONVERTER
- Manufacturer
- SiChange
- Manufacturer part #
- XC7477
- Store part #
- C23377946
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
995 in stock
#C23377946
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹209.23 | ₹209.23 |
| 10+ | ₹173.02 | ₹1,730.20 |
| 30+ | ₹153.30 | ₹4,599.00 |
| 100+ | ₹130.75 | ₹13,075.00 |
| 500+ | ₹120.78 | ₹60,390.00 |
| 1,000+ | ₹116.23 | ₹1,16,230.00 |
1 × ₹209.23
₹209.23
excl. GST
₹246.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC7477
₹209.23 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Quiescent Current (Iq)
- 870uA
- Voltage - Supply
- 4V~5.25V
- Number of Channels
- 1
- Integral non - linearity
- 1LSB
- Clock/Oscillator
- External
- Clock Frequency
- 16MHz
- Resolution(Bits)
- 10;800kHz
- S/N Ratio
- 61.5dB
- ADC architecture
- SAR
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.046 g
Overview
The XC7477 is a 10-bit, high speed, low power, and small-sized Successive-Approximation-Register (SAR) ADC. This device can operate from a single 4 V to 5.25 V supply with an 800-KSPS throughput. The XC7477 is available in a 6-pin SOT-23 package and has an operating temperature range of -40℃ to 85℃. The XC7477 is a drop-in replacement for the AD7477 and consumes only half dynamic power of their counterpart.
Applications
- Battery Powered Systems
- Personal digital assistants
- Medical instruments
- Mobile communications
- Instrumentation and Control Systems
- Data Acquisition Systems
- High Speed Modems
- Optical Sensors
Key features
- Single 4V to 5.25V Supply Operation for XC7477
- Fast Throughput Rate: 800 KSPS for XC7477
- ±1 LSB INL, ±1 LSB DNL
- No Pipeline Delays
- SPI/DSP/MICROWIRE/QSPI Compatible Serial Interface
- Variable Power Management
- Low Power (XC7477 typical): 3.45mW (4V, 800KSPS), 5.25mW (5V, 800KSPS)
- Second-Source for AD7477
- 6-Pin SOT-23 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC7887#C23377952SiChange · SOT-23-6 | SiChange | SOT-23-6 | 1,000 | ₹134.56 · 1,000 in stock | View |
 | XCS7477#C23377955SiChange · SOT-23-6 | SiChange | SOT-23-6 | 800 | ₹166.95 · 800 in stock | View |
 | XC7887E#C41383378SiChange · SOT-23-6 | SiChange | SOT-23-6 | 934 | ₹250.43 · 934 in stock | View |
 | XC7477E#C41383375SiChange · SOT-23-6 | SiChange | SOT-23-6 | 998 | ₹218.77 · 998 in stock | View |
 | XC101S101E#C41383372SiChange · SOT-23-6 | SiChange | SOT-23-6 | 942 | ₹218.77 · 942 in stock | View |
