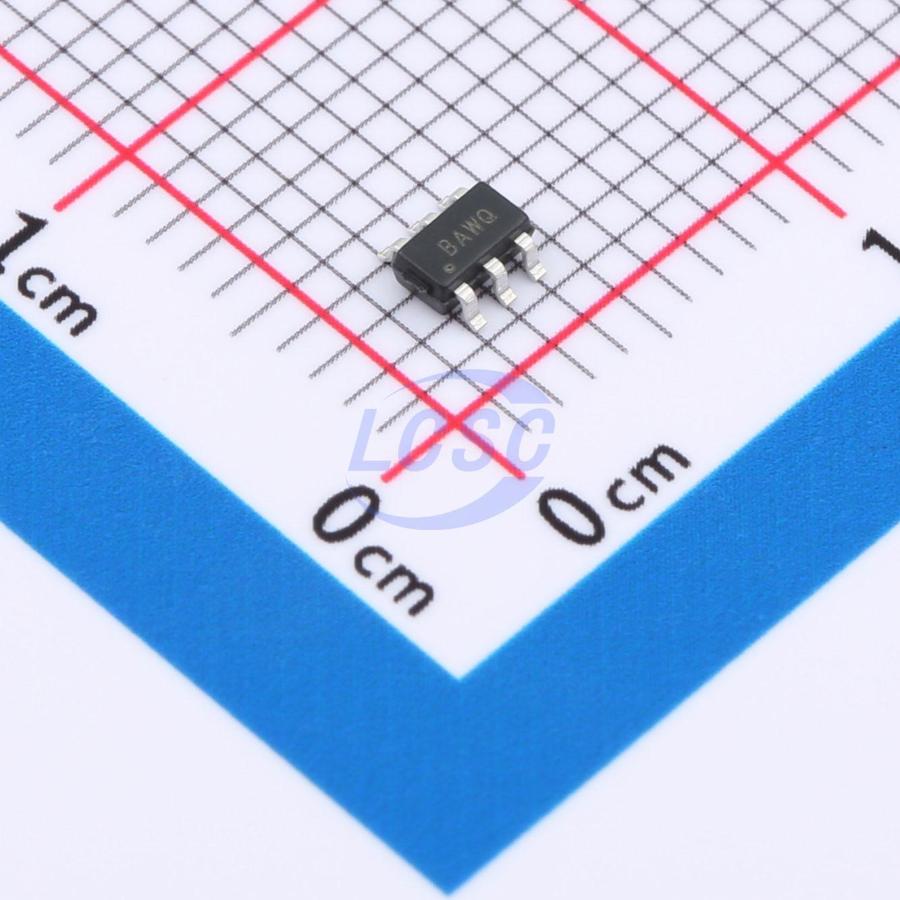

XC7887
10 Bit Analog to Digital Converter 1 Input SAR SOT-23-6
SOT-23-6RoHSActive
800-ksps, ultra-low power, 10-bit, miniature SAR analog-to-digital converter
- Manufacturer
- SiChange
- Manufacturer part #
- XC7887
- Store part #
- C23377952
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C23377952
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.56 | ₹134.56 |
| 10+ | ₹111.28 | ₹1,112.80 |
| 30+ | ₹98.55 | ₹2,956.50 |
| 100+ | ₹84.10 | ₹8,410.00 |
| 500+ | ₹77.63 | ₹38,815.00 |
| 1,000+ | ₹74.83 | ₹74,830.00 |
1 × ₹134.56
₹134.56
excl. GST
₹158.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC7887
₹134.56 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Quiescent Current (Iq)
- 910uA
- Voltage - Supply
- 4V~5.25V
- Number of Channels
- 1
- Integral non - linearity
- 1LSB
- Voltage Reference
- Built-in
- Clock/Oscillator
- External
- Clock Frequency
- 16MHz
- Resolution(Bits)
- 10;800kHz
- S/N Ratio
- 61.5dB
- DNL (LSB)
- 0.75LSB
- ADC architecture
- SAR
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.046 g
Overview
The XC7887 is a 10- bit, high speed, low power, and small- sized Successive- Approximation- Register (SAR) ADC. This device can operate from a single 4 V to 5.25 V supply with an 800 KSPS throughput. The XC7887 is available in a 6- pin SOT- 23 package and has an operating temperature range of - 40℃ to 85℃. The XC7887 is a drop- in replacement for the ADS7887 and consumes only half dynamic power of their counterpart.
Applications
- Base Band Converters in Radio Communication
- Optical Networking
- Optical Sensors
- Medical Instrumentations
- Battery- Powered Systems
- High- speed Closed- Loop Systems
- High- Speed Data Acquisition Systems
Key features
- Fast Throughput Rate: 800 KSPS for XC7887
- Single 4V to 5.25V Supply Operation for XC7887
- Zero Latency
- ±1 LSB INL, ±0.7 LSB DNL
- 16MHz Serial Interface
- Variable Power Management
- Low Power (XC7887 typical): 3.10mW (4V, 800 KSPS), 5.10mW (5V, 800 KSPS)
- Second- Source for ADS7887
- 6- Pin SOT- 23 Package
