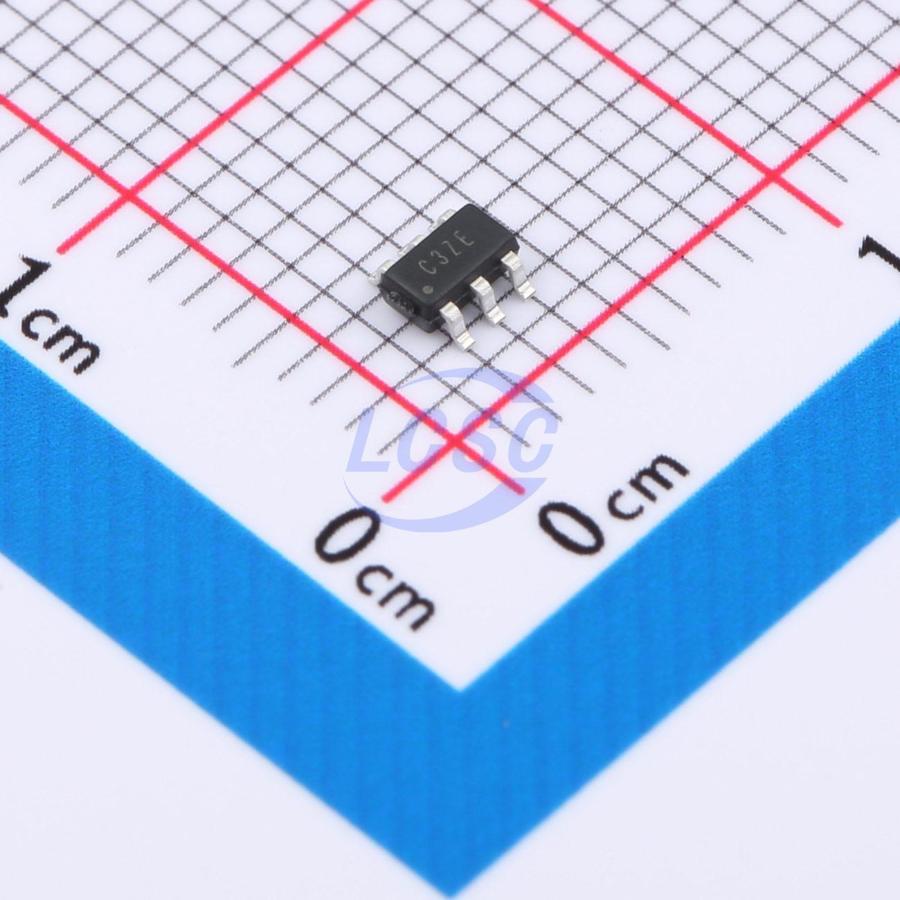

XC7478E
8 Bit Analog to Digital Converter 1 Input SAR SOT-23-6
SOT-23-6RoHSActive
1-MSPS, 3.3V - 4.8V, Ultra-low power consumption, 8-bit SAR analog-to-digital converter
- Manufacturer
- SiChange
- Manufacturer part #
- XC7478E
- Store part #
- C41383376
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C41383376
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹180.39 | ₹180.39 |
| 10+ | ₹149.17 | ₹1,491.70 |
| 30+ | ₹132.05 | ₹3,961.50 |
| 100+ | ₹112.75 | ₹11,275.00 |
| 500+ | ₹104.08 | ₹52,040.00 |
| 1,000+ | ₹100.18 | ₹1,00,180.00 |
1 × ₹180.39
₹180.39
excl. GST
₹212.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC7478E
₹180.39 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Quiescent Current (Iq)
- 1.54mA
- Voltage - Supply
- 3.3V~4.8V
- Number of Channels
- 1
- Integral non - linearity
- 0.5LSB
- Clock/Oscillator
- External
- Clock Frequency
- 20MHz
- Resolution(Bits)
- 1MHz;8
- S/N Ratio
- 49.5dB
- DNL (LSB)
- 0.5LSB
- ADC architecture
- SAR
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The XC7478E is an 8- bit, high speed, low power, and small- sized Successive- Approximation- Register (SAR) ADC. This device can operate from a single 3.3 V to 4.8 V supply with a 1- MSPS throughput. The XC7478E is available in a 6- pin SOT- 23 package and has an operating temperature range of - 40℃ to 85℃. The XC7478E is a drop- in replacement for the AD7478.
Applications
- Battery Powered Systems
- Personal digital assistants
- Medical instruments
- Mobile communications
- Instrumentation and Control Systems
- Data Acquisition Systems
- High Speed Modems
- Optical Sensors
Key features
- Single 3.3V to 4.8V Supply Operation for XC7478E
- Fast Throughput Rate: 1 MSPS for XC7478E
- ±0.5LSB INL, ±0.5LSB DNL
- No Pipeline Delays
- SPI/DSP/MICROWIREM/QSPIM Compatible Serial Interface
- Variable Power Management
- Low Power (XC7478E typical): 2.20mW (3.3V, 1MSPS); 9.60mW (4.5V, 1MSPS)
- Second- Source for AD7478
- 6- Pin SOT- 23 Package
