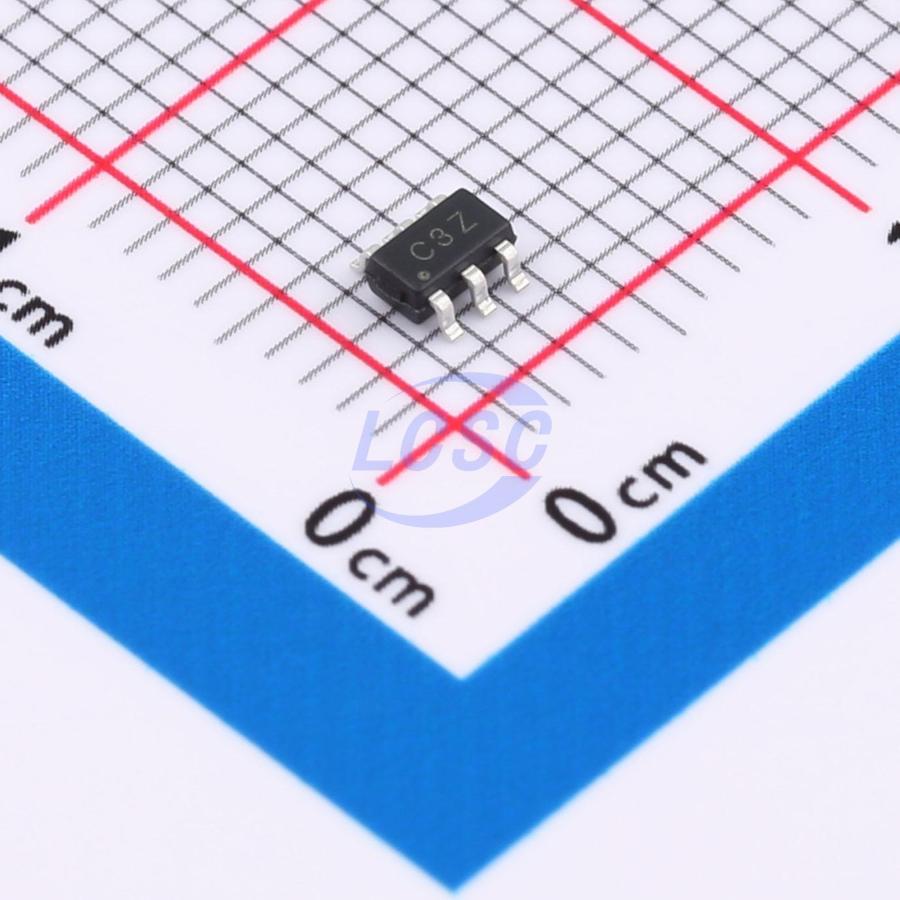

XC7478
8 Bit Analog to Digital Converter 1 Input SAR SOT-23-6
SOT-23-6RoHSActive
800-ksps, 4 V - 5.25 V, ultra-low power consumption, 8-bit SAR analog-to-digital converter
- Manufacturer
- SiChange
- Manufacturer part #
- XC7478
- Store part #
- C23377947
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C23377947
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹137.79 | ₹137.79 |
| 10+ | ₹110.84 | ₹1,108.40 |
| 30+ | ₹97.48 | ₹2,924.40 |
| 100+ | ₹84.31 | ₹8,431.00 |
| 500+ | ₹76.34 | ₹38,170.00 |
| 1,000+ | ₹72.25 | ₹72,250.00 |
1 × ₹137.79
₹137.79
excl. GST
₹162.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC7478
₹137.79 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Quiescent Current (Iq)
- 760uA
- Voltage - Supply
- 4V~5.25V
- Number of Channels
- 1
- Integral non - linearity
- 0.5LSB
- Clock/Oscillator
- External
- Clock Frequency
- 16MHz
- Resolution(Bits)
- 8;800kHz
- S/N Ratio
- 49.5dB
- ADC architecture
- SAR
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.046 g
Overview
The XC7478 is an 8-bit, high speed, low power, and small-sized Successive-Approximation-Register (SAR) ADC. This device can operate from a single 4 V to 5.25 V supply with an 800-KSPS throughput. The XC7478 is available in a 6-pin SOT-23 package and has an operating temperature range of -40℃ to 85℃. The XC7478 is a drop-in replacement for the AD7478 and consumes only half dynamic power of their counterpart.
Applications
- Battery Powered Systems
- Personal digital assistants
- Medical instruments
- Mobile communications
- Instrumentation and Control Systems
- Data Acquisition Systems
- High Speed Modems
- Optical Sensors
Key features
- Single 4V to 5.25V Supply Operation for XC7478
- Fast Throughput Rate: 800 KSPS for XC7478
- ±0.5 LSB INL, ±0.5 LSB DNL
- No Pipeline Delays
- SPI/DSP/MICROWIRE/QSPI Compatible Serial Interface
- Variable Power Management
- Low Power (XC7478 typical): 3.05mW (4V, 800KSPS), 4.95mW (5V, 800KSPS)
- Second-Source for AD7478
- 6-Pin SOT-23 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XCS7478#C23377956SiChange · SOT-23-6 | SiChange | SOT-23-6 | 1,439 | ₹51.46 · 1,439 in stock | View |
 | XC7888#C23377953SiChange · SOT-23-6 | SiChange | SOT-23-6 | 1,000 | ₹310.72 · 1,000 in stock | View |
 | XC7478E#C41383376SiChange · SOT-23-6 | SiChange | SOT-23-6 | 1,000 | ₹180.39 · 1,000 in stock | View |
 | XC7888E#C41383379SiChange · SOT-23-6 | SiChange | SOT-23-6 | 941 | ₹259.10 · 941 in stock | View |
 | XCS7478E#C41383381SiChange · SOT-23-6 | SiChange | SOT-23-6 | 591 | ₹119.93 · 591 in stock | View |
