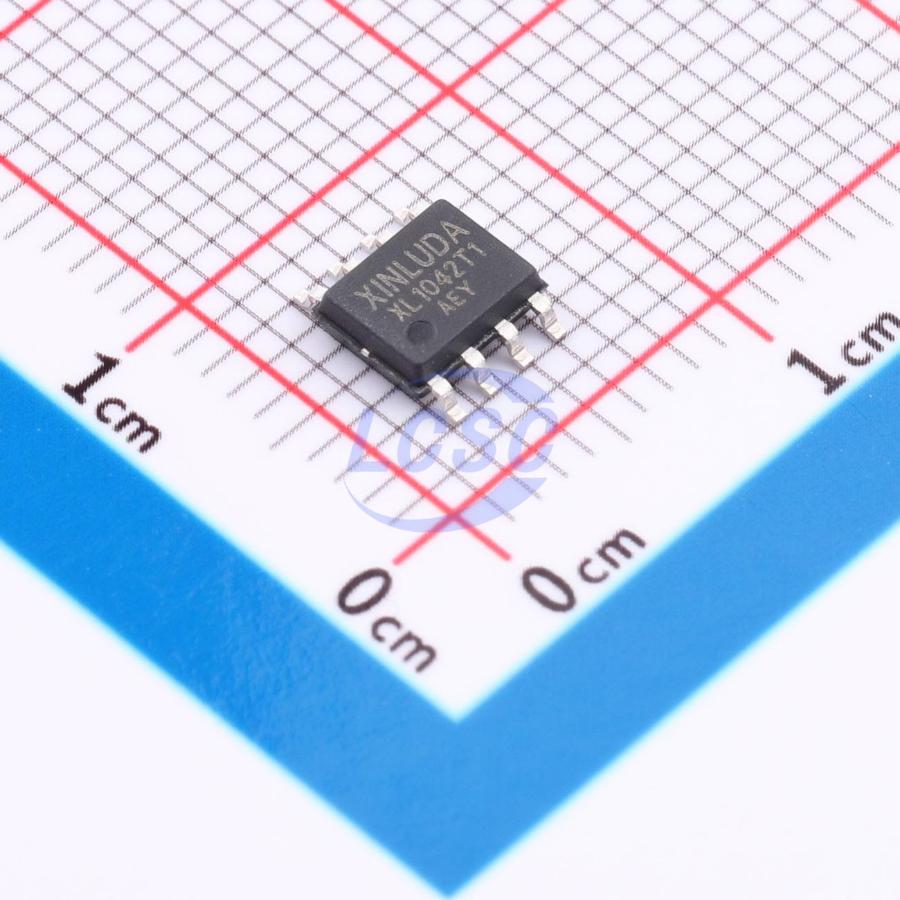

XLA1042T/1

The XLA1042 high-speed CAN transceiver provides an interface between a CAN protocol controller and the physical two-wire CAN bus. Designed for high-speed CAN applications in the automotive industry, it offers differential transmit and receive capabilities for CAN protocol controllers. As a third-generation high-speed CAN transceiver, the XLA1042 delivers significant improvements, including enhanced EMC and ESD performance, along with the following features: ideal passive behavior on the CAN bus when the supply voltage is off; an ultra-low-current standby mode with bus wake-up capability; and variants with a VIO pin for direct interfacing with microcontrollers operating at supply voltages from 3.3 V to 5 V. The XLA1042 implements the CAN physical layer as defined in ISO 11898-2:2016 and SAE J2284-1 through SAE J2284-5. This implementation supports reliable communication at data rates up to 5 Mbit/s during the CAN FD fast phase.

Key features

• Fully compliant with ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5
• Guaranteed timing at CAN FD fast-phase data rates up to 5 Mbit/s
• Suitable for 12 V and 24 V systems
• Low EME and high EMI according to recommended EMC standards IEC 62228-3 and SAE J2962-2
• VIO pin variants allow direct interfacing with 3.3 V to 5 V microcontrollers
• SPLIT voltage output on XLA1042 for stabilizing the recessive bus level
• Green product
• Ultra-low current standby mode with local and bus wake-up capability
• Predictable functional behavior under all supply conditions
• Transceiver disconnected from bus when supply voltage falls below the power-off undervoltage threshold
• Transmit data dominant timeout
• Bus dominant timeout in standby mode
• Undervoltage detection on VCC and VIO pins
• High ESD handling capability on bus pins
• High voltage tolerance on CAN pins
• Bus pins protected against transients in automotive environments
• Thermal protection
