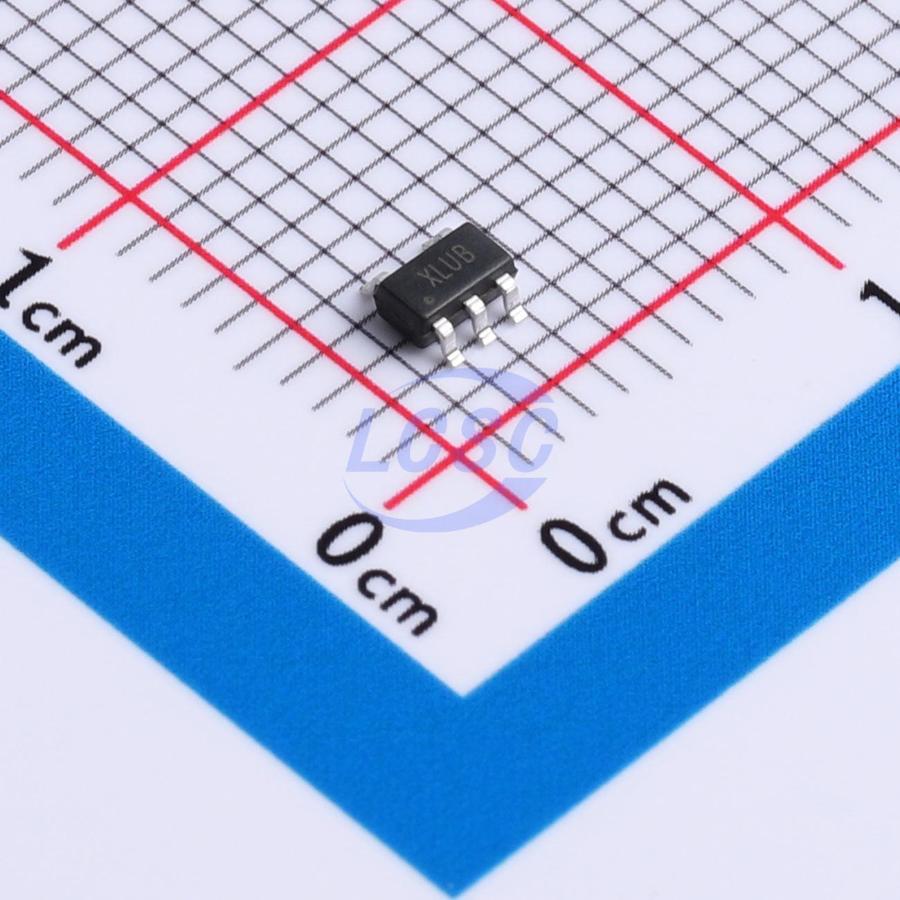

XLP5907MFX-1.8-XC

XLP5907MFX-1.8 is an ultra-low noise, ultra-low quiescent current LDO regulator operating from a 2.2V to 5.5V supply, capable of delivering up to 250mA output current at a fixed 1.8V output voltage. Utilizing innovative design techniques, its quiescent current as low as 15μA at no load makes it well suited for battery-powered portable devices. Excellent noise rejection is achieved without additional noise bypass capacitors, while maintaining outstanding PSRR as well as line and load transient response. The combination of ultra-low noise and extremely low quiescent current maximizes battery life in portable applications. Compatible with 1μF input and output ceramic capacitors for space-constrained, high-performance applications. Available in a 5-pin SOT-23 package with an operating temperature range of -40°C to 125°C.

Applications

• Smartphones
• Tablets
• Communication equipment
• Digital cameras
• Factory automation

Key features

• Ultra-low noise: 9μVrms, output voltage independent
• Ultra-low quiescent current (no load): 15μA
• Maximum output current: 250mA
• Input voltage range: 2.2V to 5.5V
• Fixed output voltage: 1.8V
• Output voltage accuracy: ±1%
• Low shutdown current: < 1μA
• Low dropout voltage: 240mV (typical)
• Power supply rejection ratio: 62dB at 1kHz
• No additional noise bypass capacitor required
• Stable performance with 1μF ceramic input and output capacitors
• Current limiting and thermal overload protection
• Logic-controlled enable
• 5-pin SOT-23 package
