4056A

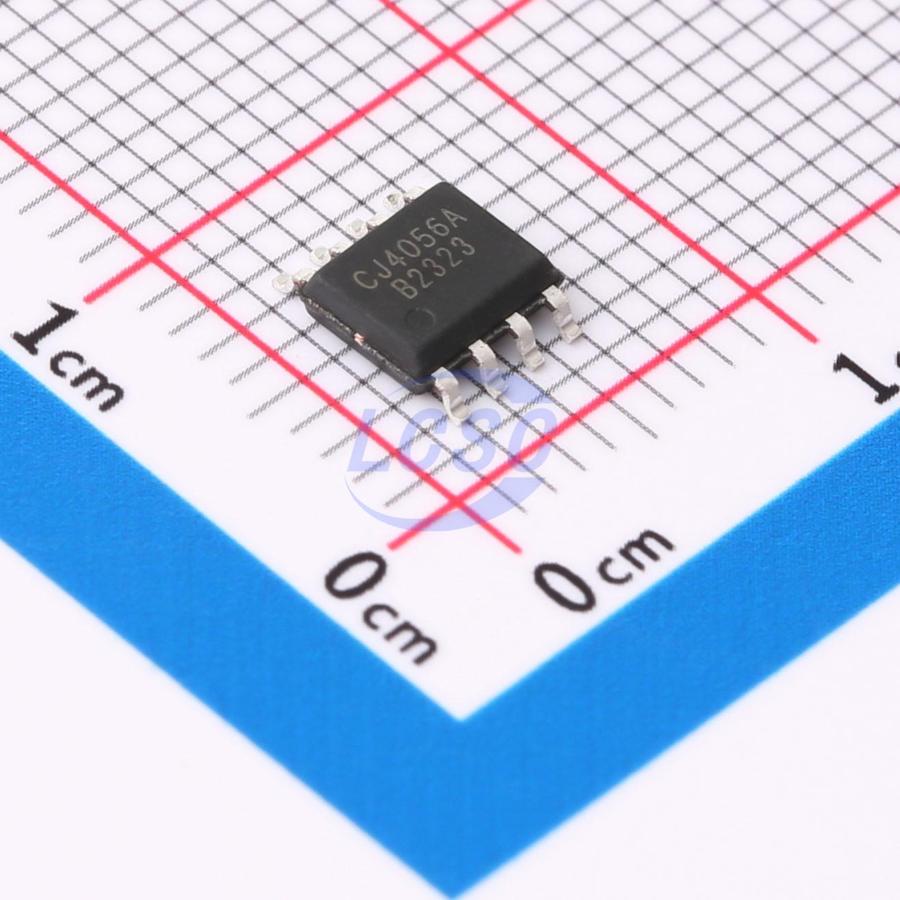

Battery Charging IC Lithium-ion/Polymer ESOP-8
Linear lithium battery charging chip with reverse polarity protection function
- Manufacturer
- HL
- Manufacturer part #
- 4056A
- Store part #
- C7431438
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,430 in stock
#C7431438
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.30 | ₹56.50 |
| 50+ | ₹9.95 | ₹497.50 |
| 150+ | ₹9.29 | ₹1,393.50 |
| 500+ | ₹8.78 | ₹4,390.00 |
| 2,500+ | ₹8.37 | ₹20,925.00 |
| 4,000+ | ₹8.18 | ₹32,720.00 |
5 × ₹11.30
₹56.50
excl. GST
₹66.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
4056A
₹56.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 70uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.2V~9V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.157 g
Overview
4056A is a complete single-cell lithium-ion battery charger featuring constant-current/constant-voltage linear charging, with battery polarity reversal protection and 5V input power supply polarity reversal protection. The ESOP8 package with an exposed thermal pad on the bottom, combined with a minimal external component count, makes the 4056A an ideal choice for portable applications. The 4056A is compatible with both USB power sources and adapter power supplies. It employs an internal PMOSFET architecture with anti-backflow circuitry, eliminating the need for an external isolation diode. Thermal feedback adaptively regulates the charge current to limit the die temperature during high-power operation or elevated ambient temperature conditions. The full-charge cutoff voltage is selectable between two levels: 4.2V and 4.35V. The charge current can be programmed externally via a single resistor. When the charge current drops to 1/10 of the programmed value after the final float voltage is reached, the 4056A automatically terminates the charge cycle. When the input voltage is removed, the 4056A automatically enters a low-current state, reducing battery leakage current to below 0.2μA. Additional features of the 4056A include power supply adaptive control, battery temperature monitoring, undervoltage lockout, automatic recharge, and two LED status pins for indicating charging and charge completion states.
Applications
- Mobile phones, PADs
- Digital cameras, electronic dictionaries
- GPS portable devices, various chargers
Key features
- Li-ion battery reverse polarity protection (positive/negative terminals)
- Vcc input reverse polarity protection
- Power supply adaptive
- Programmable charge current up to 1000mA
- Constant current/constant voltage
- Temperature-adaptive for maximum charge rate optimization
- Preset charge voltage accuracy ±1%
- Automatic recharge
- Dual charge status output, battery absent and fault status indication
- C/10 charge termination
- Quiescent current 70uA in standby mode
- 2.9V trickle charge
- Soft-start inrush current limiting
- Battery temperature monitoring
- 8-pin ESOP package
