4056V

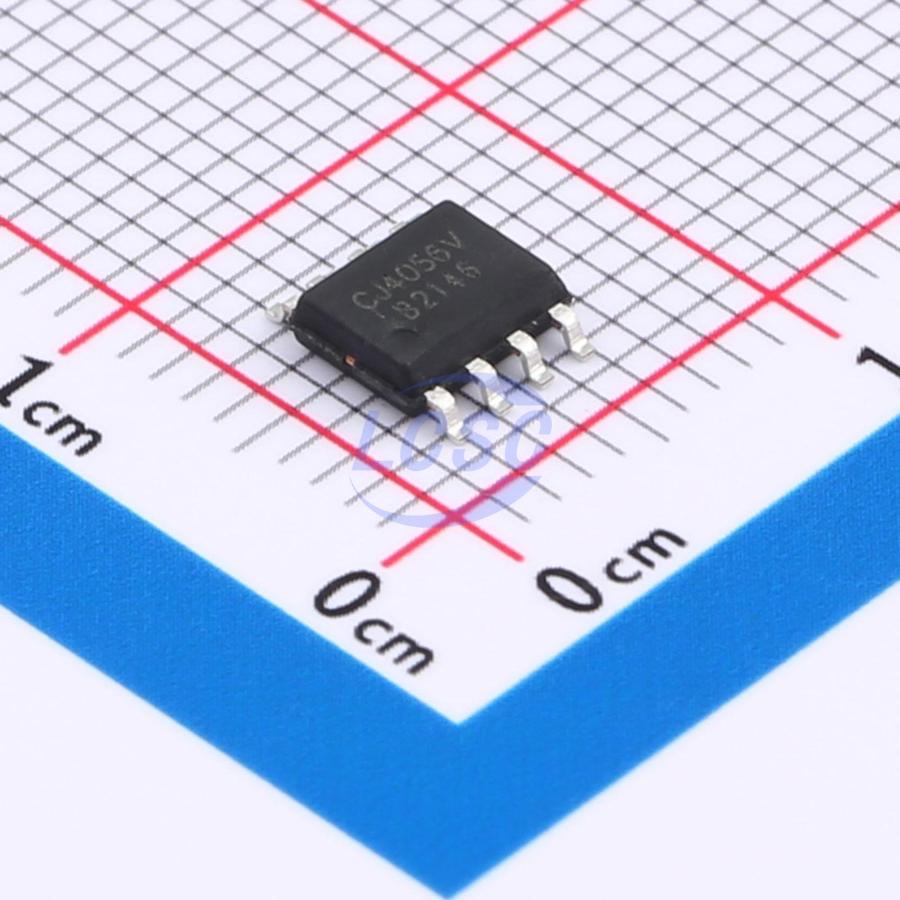

Battery Charging IC Lithium-ion/Polymer ESOP-8
Fully protected 1.2A fast-charging linear lithium battery charging chip
- Manufacturer
- HL
- Manufacturer part #
- 4056V
- Store part #
- C7431439
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,390 in stock
#C7431439
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.97 | ₹54.85 |
| 50+ | ₹9.63 | ₹481.50 |
| 150+ | ₹8.96 | ₹1,344.00 |
| 500+ | ₹8.45 | ₹4,225.00 |
| 2,500+ | ₹8.06 | ₹20,150.00 |
| 4,000+ | ₹7.86 | ₹31,440.00 |
5 × ₹10.97
₹54.85
excl. GST
₹64.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
4056V
₹54.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 50uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.2V~10V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Reverse current blocking;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.169 g
Overview
4056V is a single-cell lithium battery charger IC featuring input overvoltage protection (OVP), input power supply 5V positive/negative polarity reversal protection, and battery positive/negative polarity reversal protection. Its optimized fast constant high-current/fast constant-voltage charging mode enables faster charging speeds. The ESOP8/DFN2×2-8 package with a bottom heat sink pad, combined with a minimal external component count, makes the 4056V an ideal choice for portable applications. The 4056V is compatible with USB power supplies, adapter power supplies, and solar cell power sources. Featuring a built-in PMOSFET architecture with an anti-reverse charging circuit, no external isolation diode is required. Thermal feedback adaptively regulates the charging current to limit die temperature during high-power operation or elevated ambient temperature conditions. The charge current is externally programmable via a single resistor. When the charge current drops to 1/10 of the set value after reaching the final float voltage, the 4056V automatically terminates the charge cycle. When the input voltage is removed, the 4056V automatically enters a low-current state, reducing battery leakage current to below 0.2uA. Additional features of the 4056V include power supply adaptive tracking, battery temperature monitoring, input undervoltage lockout, automatic recharge, and two LED status pins indicating charging and charge completion.
Applications
- Magnetic connector devices
- Wearable devices
- Fast charging applications
Key features
- 6.5V OVP input overvoltage protection
- Vcc input 5V reverse polarity protection
- Lithium battery reverse polarity protection
- Programmable charge current up to 1200mA
- Constant high-current fast charging
- Short constant-voltage phase for rapid full charge
- Power adapter adaptive
- On-chip thermal regulation for maximum charge rate
- Preset charge voltage accuracy ±1%
- Automatic recharge
- Dual charge status output with battery absence and fault indication
- C/10 charge termination
- 2.9V trickle charging
- Soft-start inrush current limiting
- Battery temperature monitoring
- Available in 8-pin ESOP and DFN2*2 packages
