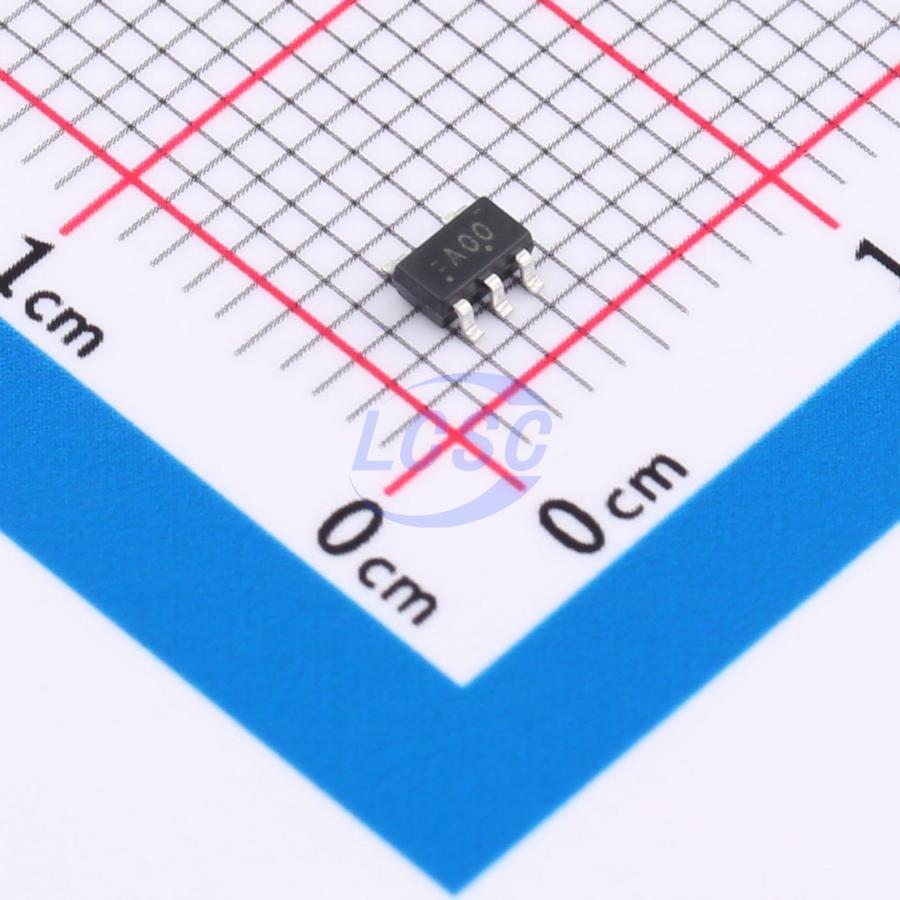

74AHC1G00GV
2V~5.5V 9.5ns@5V,50pF 1uA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
Single 2-Input NAND Gate
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AHC1G00GV
- Store part #
- C19829583
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,270 in stock
#C19829583
Stock & price checked 17 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.22 | ₹72.20 |
| 100+ | ₹5.66 | ₹566.00 |
| 300+ | ₹4.88 | ₹1,464.00 |
| 3,000+ | ₹4.29 | ₹12,870.00 |
| 6,000+ | ₹3.82 | ₹22,920.00 |
| 9,000+ | ₹3.59 | ₹32,310.00 |
10 × ₹7.22
₹72.20
excl. GST
₹85.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G00GV
₹72.20 for 10 + GST
Specifications
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 9.5ns@5V,50pF
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V;2.58V;3.94V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The 74AHC1G00 is a 2-input NAND gate which provides the Function Y(overline)=A×B
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs, Networking, Notebooks, Netbooks, PDAs, Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operation Voltage Range: 2~5.5V
- Low Power Dissipation: ICC = 1.0μA (Max)
- High Speed: tPD = 4.33ns (Typ)
- SOT23-5 Package Available
- SOT353 Package Available
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A) - 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74VHC1G132DTT1G-TP#C53100487TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,700 | ₹6.18 · 2,700 in stock | View |
 | MC74VHC1G00DTT1G-TP#C53100494TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,960 | ₹5.74 · 2,960 in stock | View |
 | SN74AHC1G00DBVR#C19829665TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,530 | ₹6.03 · 3,530 in stock | View |
 | 74AHC1G00W5-TP#C52098173TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,950 | ₹5.89 · 2,950 in stock | View |
 | TP74AHC1G00S5#C52205178TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,980 | ₹6.77 · 2,980 in stock | View |
