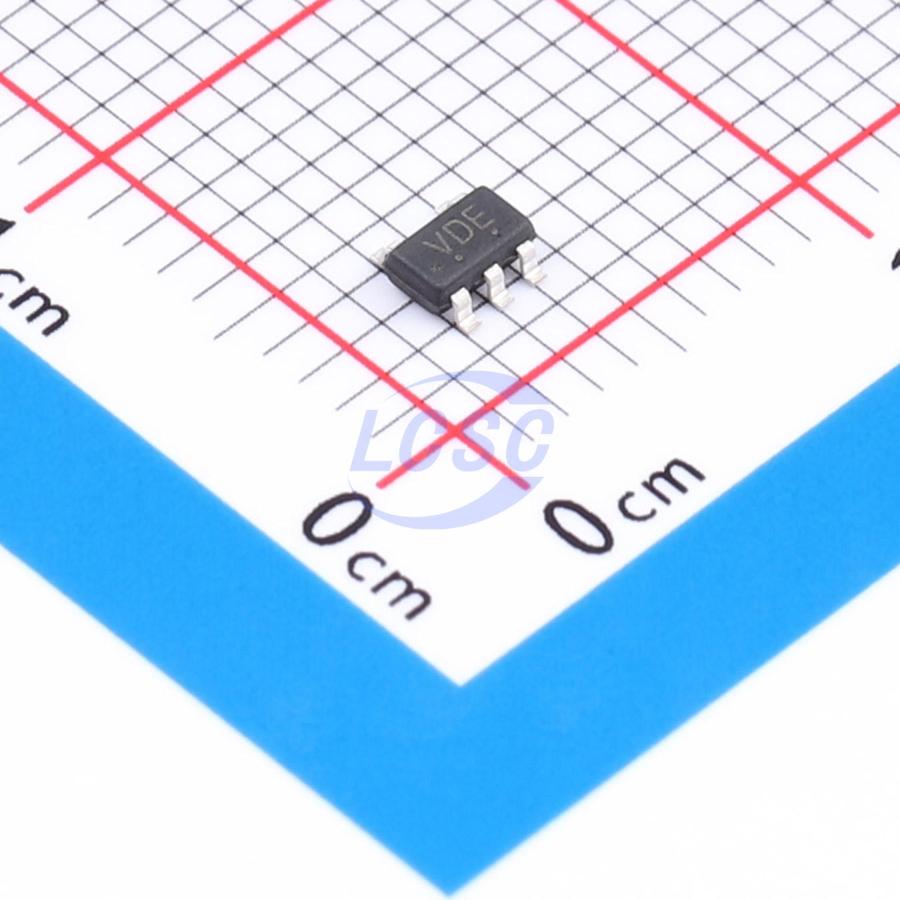

MC74VHC1G132DTT1G-TP
2V~5.5V 7.5ns@5V,50pF 1uA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MC74VHC1G132DTT1G-TP
- Store part #
- C53100487
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,700 in stock
#C53100487
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.18 | ₹61.80 |
| 100+ | ₹4.92 | ₹492.00 |
| 300+ | ₹4.29 | ₹1,287.00 |
| 3,000+ | ₹3.81 | ₹11,430.00 |
| 6,000+ | ₹3.44 | ₹20,640.00 |
| 9,000+ | ₹3.24 | ₹29,160.00 |
10 × ₹6.18
₹61.80
excl. GST
₹72.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MC74VHC1G132DTT1G-TP
₹61.80 for 10 + GST
Specifications
- Logic Family
- 74VHC
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 7.5ns@5V,50pF
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V;2.58V;3.94V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
MC74VHC1G132 is a 2-input NAND gate with the function Y = A×B (overline).
Key features
- Operating voltage range: 2~5.5V
- Low power consumption: ICC = 1.0μA (max)
- High speed: tPD' = 4.3ns (typical)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74VHC1G00DTT1G-TP#C53100494TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,960 | ₹5.74 · 2,960 in stock | View |
 | SN74AHC1G00DBVR#C19829665TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,530 | ₹6.03 · 3,530 in stock | View |
 | 74AHC1G00W5-TP#C52098173TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,960 | ₹5.89 · 2,960 in stock | View |
 | TP74AHC1G00S5#C52205178TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,980 | ₹6.77 · 2,980 in stock | View |
 | 74AHC1G00GV#C19829583TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,270 | ₹7.22 · 2,270 in stock | View |
