TECH PUBLICDatasheet (PDF)

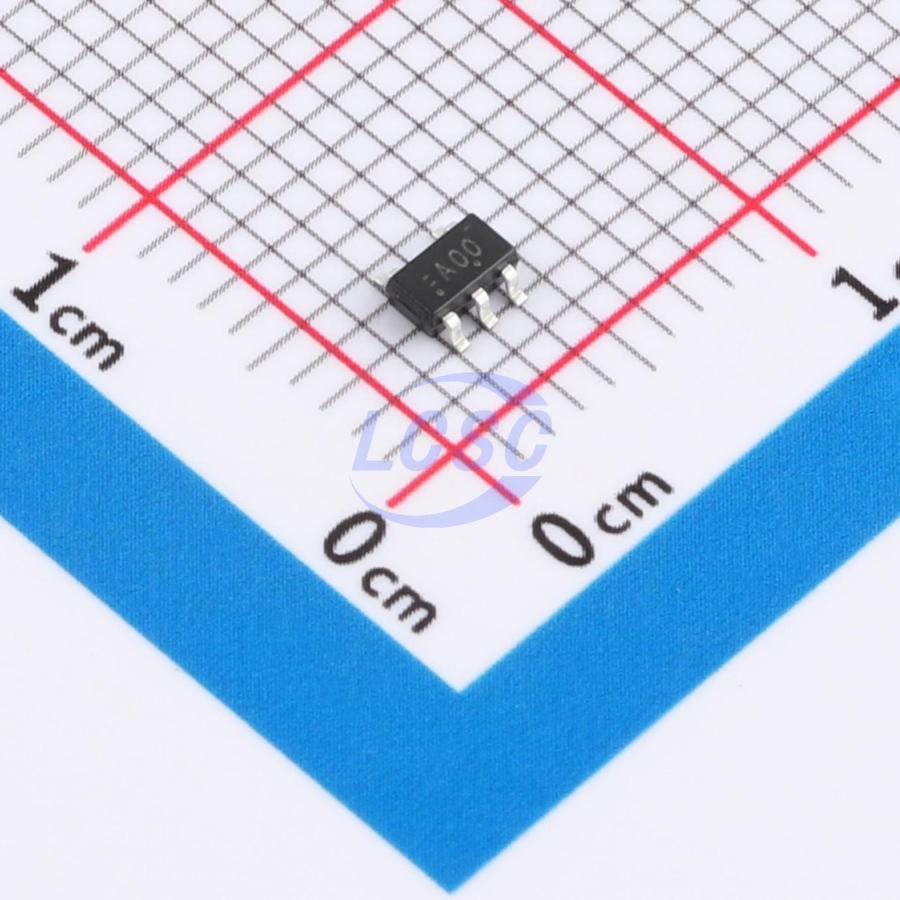

74AHC1G00W5-TP
2V~5.5V 7.5ns@5V,50pF 1uA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AHC1G00W5-TP
- Store part #
- C52098173
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,960 in stock
#C52098173
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.89 | ₹58.90 |
| 100+ | ₹4.63 | ₹463.00 |
| 300+ | ₹4.00 | ₹1,200.00 |
| 3,000+ | ₹3.53 | ₹10,590.00 |
| 6,000+ | ₹3.15 | ₹18,900.00 |
| 9,000+ | ₹2.96 | ₹26,640.00 |
10 × ₹5.89
₹58.90
excl. GST
₹69.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G00W5-TP
₹58.90 for 10 + GST
Specifications
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 7.5ns@5V,50pF
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
This device is a 2-input NAND gate that implements the logic function Y = NOT(A AND B).
Applications
- Voltage level translation
- General-purpose logic circuits
- Power-off signal isolation
- PCs, network equipment, laptops, netbooks, PDAs
- Tablets, e-readers
- Computer peripherals, hard disk drives, CD/DVD optical drives
- TVs, DVD players, DVRs, set-top boxes
- Mobile phones, personal navigation/GPS devices
- MP3 players, cameras, camcorders
Key features
- Operating voltage range: 2~5.5V
- Low power: maximum operating current 1.0μA
- High speed: typical propagation delay 4.3 ns
- Available in SOT23-5 package
- Available in SOT353 package
- ESD protection exceeds JESD 22 standard
- HBM: 2000V
- CDM: 1000V
