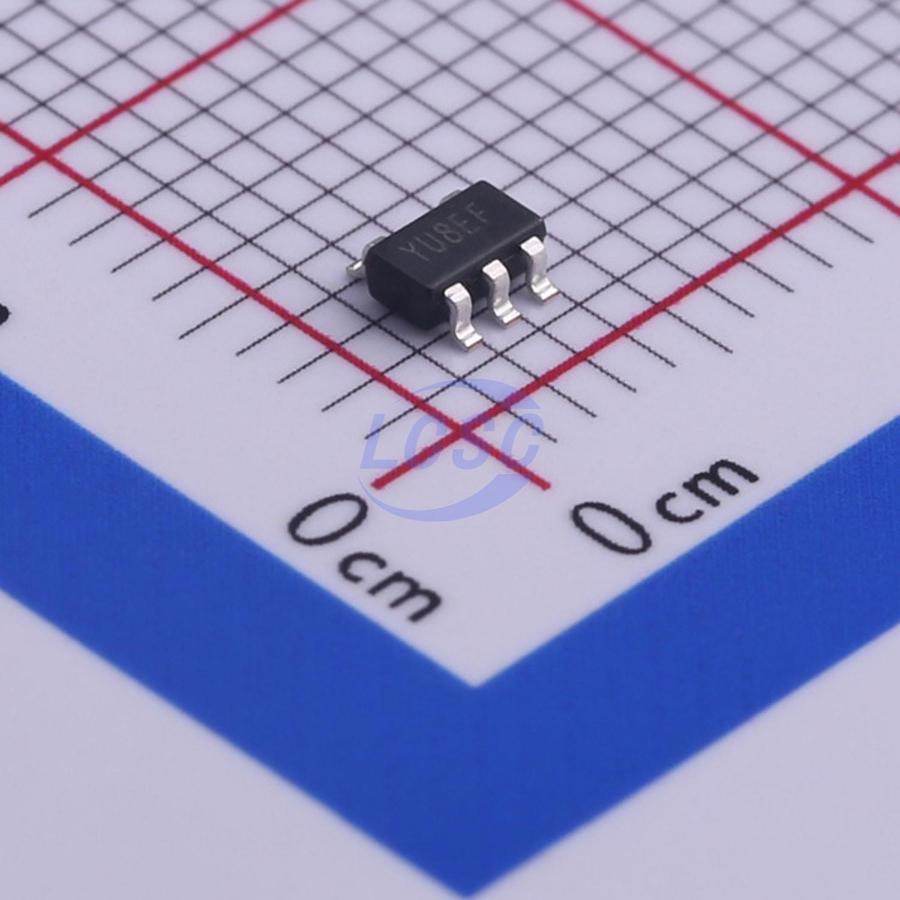

74AHC1G08W5-7

Schmitt trigger 2V~5.5V 7.9ns@5V,50pF 1uA SOT-25 Gates and Inverters RoHS

SOT-25ROHS3 CompliantActive

SINGLE 2 INPUT POSITIVE AND GATE

Manufacturer: DIODES
Manufacturer part #: 74AHC1G08W5-7
Store part #: C460487
Package / case: SOT-25
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,775 in stock

#C460487

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹13.63	₹68.15
50+	₹10.91	₹545.50
150+	₹9.57	₹1,435.50
500+	₹8.55	₹4,275.00
3,000+	₹7.74	₹23,220.00
6,000+	₹7.33	₹43,980.00

Quantity (min 5, multiples of 5)

5 × ₹13.63

₹68.15

excl. GST

₹80.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AHC1G08W5-7

₹68.15 for 5 + GST

Specifications

Input Type: Schmitt trigger
output type: Push-pull
Logic Family: 74AHC Series
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 100mV;550mV
Propagation Delay: 7.9ns@5V,50pF
Input Logic Level - Low: 500mV~1.65V
Input Logic Level - High: 1.5V~3.85V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.9V;2.58V;3.94V
Quiescent Current(Iq): 1uA
Current - Output High(IOH): 8mA
Number of Channels: 1;2
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.023 g

Overview

The 74AHC1G08 is a single 2-input positive AND gate with a standard push-pull output. The device is designed for operation with a power supply range of 2.0V to 5.5V. The gate performs the positive Boolean function.

Applications

General Purpose Logic
Wide array of products such as:
PCs, networking, notebooks, netbooks, PDAs
Computer peripherals, hard drives, CD/DVD ROM
TV, DVD, DVR, set top box
Personal Navigation / GPS
MP3 players, Cameras, Video Recorders

Key features

Supply Voltage Range from 2.0V to 5.5V
±8 mA Output Drive at 5.0V
CMOS low power consumption
Schmitt Trigger Action at All Inputs Make the Circuit Tolerant for Slower Input Rise and Fall Time
ESD Protection per JESD 22:
Exceeds 200-V Machine Model (A115-A)
Exceeds 2000-V Human Body Model (A114-A)
Exceeds 1000-V Charged Device Model (C101C)
Latch-Up Exceeds 100mA per JESD 78, Class II
SOT25 and SOT353: Assembled with “Green” Molding Compound (no Br, Sb)
Lead Free Finish / RoHS Compliant
