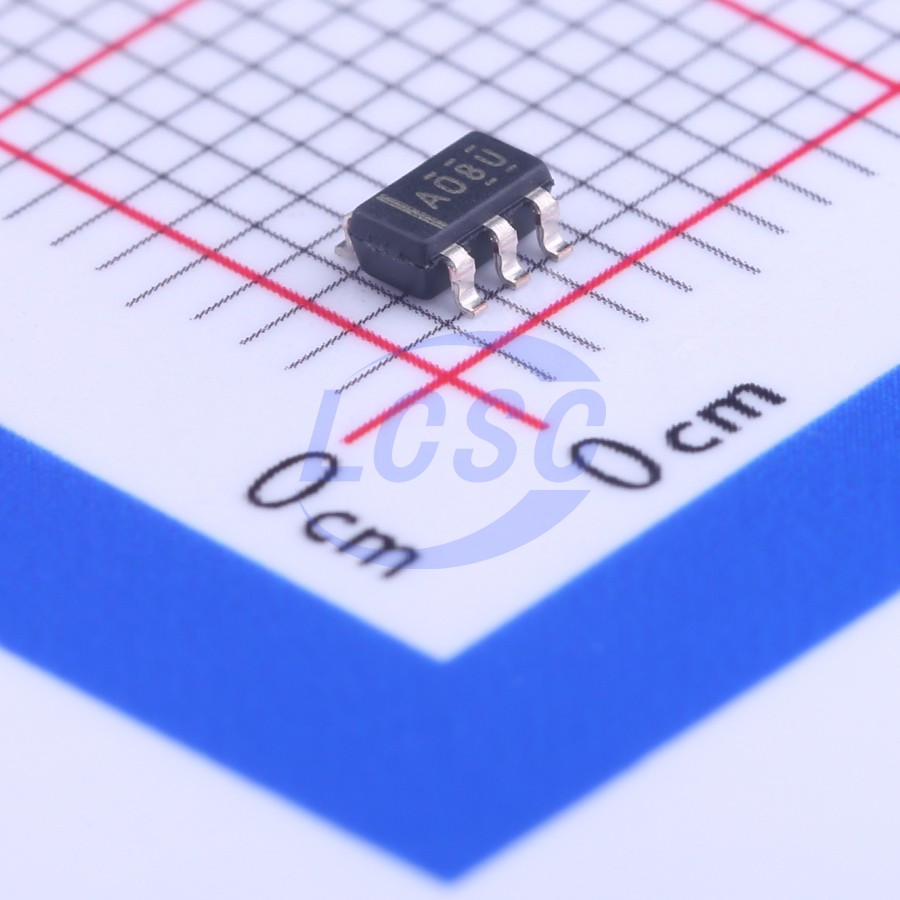

SN74AHC1G08QDBVRQ1
Schmitt trigger 2V~5.5V 7.9ns@5V,50pF 1uA SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS3 CompliantActive
SINGLE 2-INPUT POSITIVE-AND GATE
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC1G08QDBVRQ1
- Store part #
- C133547
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,075 in stock
#C133547
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.93 | ₹114.65 |
| 50+ | ₹17.94 | ₹897.00 |
| 150+ | ₹15.81 | ₹2,371.50 |
| 500+ | ₹13.14 | ₹6,570.00 |
| 3,000+ | ₹11.96 | ₹35,880.00 |
| 6,000+ | ₹11.25 | ₹67,500.00 |
5 × ₹22.93
₹114.65
excl. GST
₹135.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G08QDBVRQ1
₹114.65 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- output type
- Push-pull
- Logic Family
- 74AHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;520mV
- Propagation Delay
- 7.9ns@5V,50pF
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The SN74AHC1G08 is a single 2- input positive- AND gate. The device performs the Boolean function Y = A • B or Y = (A(overline) + B(overline))(overline) in positive logic.
Applications
- Automotive
- Digital logic circuit applications
Key features
- Qualified for Automotive Applications
- Operating Range of 2 V to 5.5 V
- Max tpd of 9 ns at 5 V
- Low Power Consumption, 20-μA Max Icc
- ±8-mA Output Drive at 5 V
- Schmitt Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time
- ESD Protection Level Per AEC-Q100 Classification
- 2000-V (H2) Human-Body Model
- 200-V (M3) Machine Model
- 1000-V (C5) Charged-Device Model
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHC1G08W5-7#C460487DIODES · SOT-25 | DIODES | SOT-25 | 6,775 | ₹13.63 · 6,775 in stock | View |
 | SN74AHC1G08DB(LX)#C22469963lingxingic · SOT-23-5 | lingxingic | SOT-23-5 | 2,370 | ₹6.91 · 2,370 in stock | View |
 | 74AHC1G08GV-Q100,1#C554279Nexperia · SOT-753 | Nexperia | SOT-753 | 2,810 | ₹25.84 · 2,810 in stock | View |
 | SN74AHC1G08DBVR#C7467TI · SOT-23-5 | TI | SOT-23-5 | 55,600 | ₹8.96 · 55,600 in stock | View |
 | 74AHC1G08GV,125#C12487Nexperia · SC-74A | Nexperia | SC-74A | 1,780 | ₹30.71 · 1,780 in stock | View |
