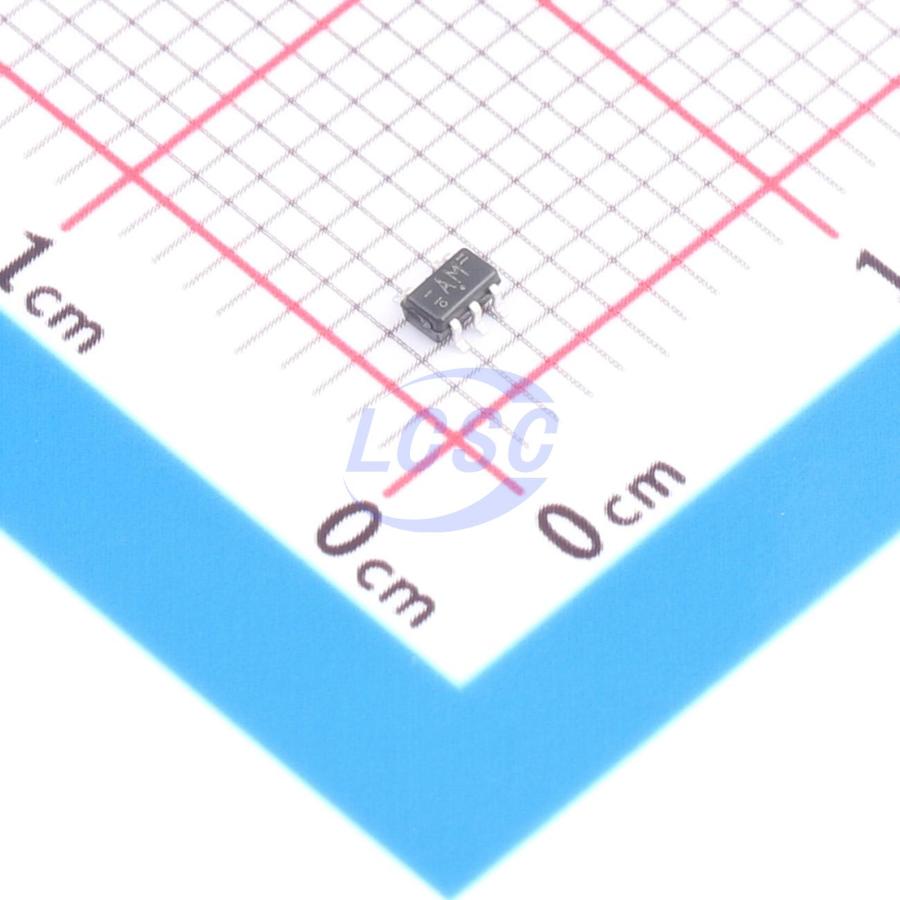

74AHC1G125GW-Q100H
StandardCMOS 2V~5.5V 1 1 9.5ns@5.5V,50pF TSSOP-5-1.3mm Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-5-1.3mmROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHC1G125GW-Q100H
- Store part #
- C554287
- Package / case
- TSSOP-5-1.3mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,140 in stock
#C554287
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.00 | ₹100.00 |
| 50+ | ₹15.62 | ₹781.00 |
| 150+ | ₹13.75 | ₹2,062.50 |
| 500+ | ₹11.40 | ₹5,700.00 |
| 3,000+ | ₹10.37 | ₹31,110.00 |
| 6,000+ | ₹9.74 | ₹58,440.00 |
5 × ₹20.00
₹100.00
excl. GST
₹118.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G125GW-Q100H
₹100.00 for 5 + GST
Specifications
- Input type
- StandardCMOS
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Function
- Output enable;Level shifting
- Current - Output High(IOH)
- 8mA
- Series
- 74AHC
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 9.5ns@5.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
Applications
- Automotive applications
- Voltage converters
- Data transmission
- Signal buffers
- Line drivers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHC1G126SE-TP#C52098174TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,890 | ₹6.42 · 2,890 in stock | View |
| CAHC1G126QDCKRQ1#C35355885TI · SC-70-5 | TI | SC-70-5 | 225 | ₹65.41 · 225 in stock | View | |
| AiP74AHC1G125GC353.TR#C52121064Wuxi I-core Elec · SOT-353 | Wuxi I-core Elec | SOT-353 | 2,795 | ₹12.49 · 2,795 in stock | View | |
 | SN74AHC1G125DCK3#C2861175TI · SC-70-5 | TI | SC-70-5 | 1,000 | ₹32.59 · 1,000 in stock | View |
 | EM74AHC1G126GW#C49188274EnergyMath · SOT-353 | EnergyMath | SOT-353 | 10 | ₹7.45 · 10 in stock | View |
