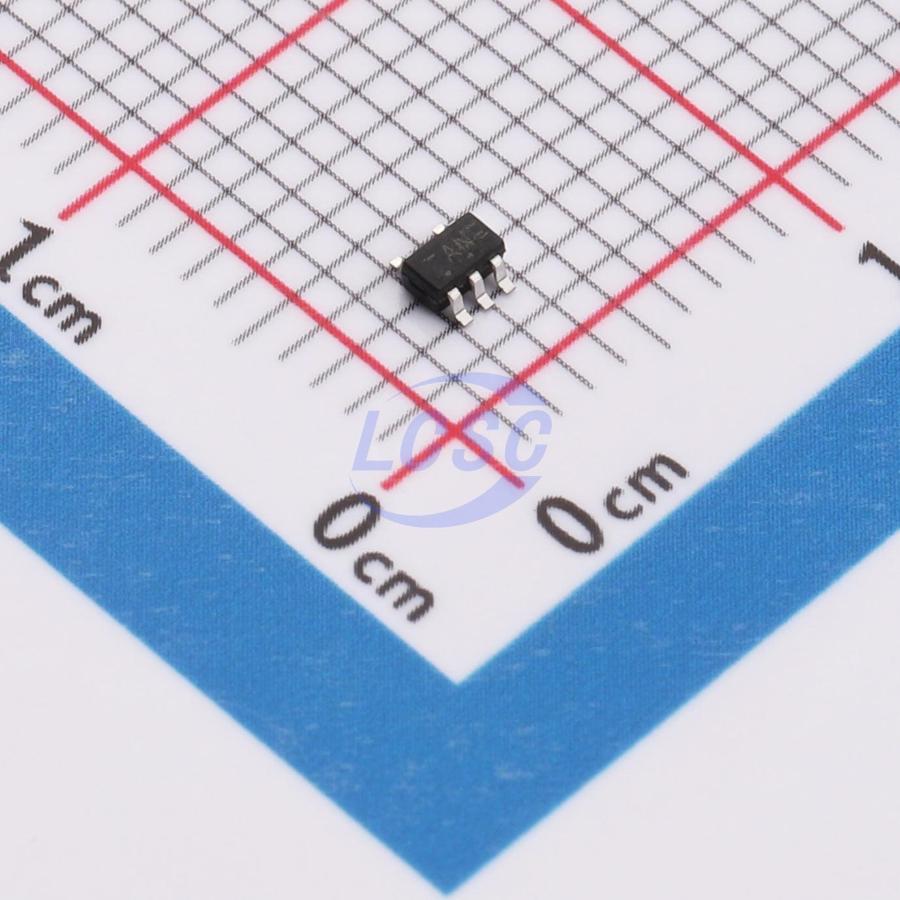

74AHC1G126SE-TP
Schmitt trigger 2V~5.5V 1 1 9.5ns@5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AHC1G126SE-TP
- Store part #
- C52098174
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,890 in stock
#C52098174
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.42 | ₹64.20 |
| 100+ | ₹5.05 | ₹505.00 |
| 300+ | ₹4.37 | ₹1,311.00 |
| 3,000+ | ₹3.85 | ₹11,550.00 |
| 6,000+ | ₹3.44 | ₹20,640.00 |
| 9,000+ | ₹3.23 | ₹29,070.00 |
10 × ₹6.42
₹64.20
excl. GST
₹75.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G126SE-TP
₹64.20 for 10 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 8mA
- Input type
- Schmitt trigger
- Series
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 9.5ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The 74AHC1G126 is a single non-inverting buffer/bus driver with 3-state output. When a low level is applied to the output enable pin, the output enters a high-impedance state. The device is designed to operate over a supply voltage range of 2.0V to 5.5V.
Applications
- General Logic
- PCs, network equipment, notebooks, netbooks, PDAs
- Computer peripherals, HDDs, CD/DVD ROM
- TVs, DVDs, DVRs, set-top boxes
- PNDs/GPS
- MP3 players, cameras, camcorders
Key features
- Supply voltage range: 2.0V to 5.5V
- ±8 mA output drive capability at 5.0V
- CMOS low power consumption
- Schmitt-trigger inputs on all pins for tolerance to slower input rise and fall times
- ESD protection per JESD 22: exceeds 200-V machine model, exceeds 2000-V human body model, exceeds 1000-V charged device model
- Latch-up current exceeds 100 mA per JESD 78 Class II
- SOT23-5 and SOT353 packages assembled with "green" molding compound
- Lead-free process, RoHS compliant
