TIDatasheet (PDF)

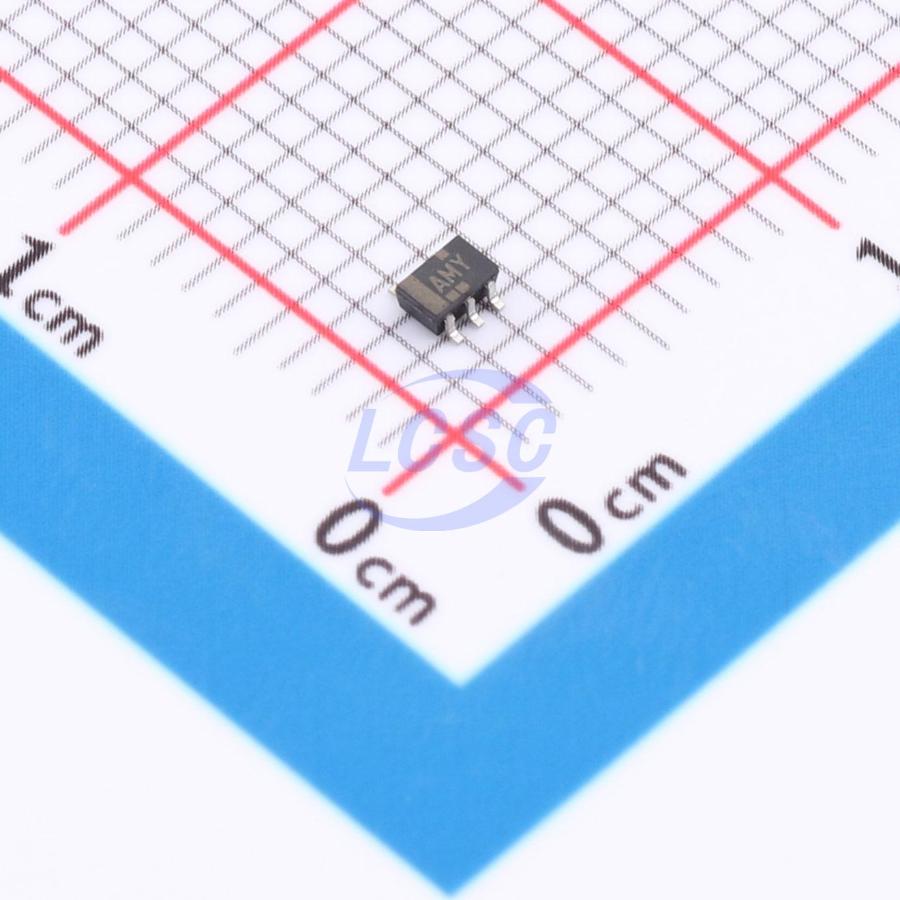

SN74AHC1G125DCK3
2V~5.5V 1 1 9.5ns@5V,50pF SC-70-5 Buffers, Drivers, Receivers, Transceivers RoHS
SC-70-5ROHS3 CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC1G125DCK3
- Store part #
- C2861175
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C2861175
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.59 | ₹162.95 |
| 50+ | ₹25.57 | ₹1,278.50 |
| 150+ | ₹22.16 | ₹3,324.00 |
| 500+ | ₹19.12 | ₹9,560.00 |
| 3,000+ | ₹18.27 | ₹54,810.00 |
| 6,000+ | ₹17.77 | ₹1,06,620.00 |
5 × ₹32.59
₹162.95
excl. GST
₹192.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G125DCK3
₹162.95 for 5 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Output enable;Level shifting
- Current - Output High(IOH)
- 8mA
- Series
- 74AHC
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 9.5ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.137 g
Overview
The SN74AHC1G125 device is a single bus buffer gate/line driver with 3-state output. The output is disabled when the output-enable (OE) input is high. When OE is low, true data is passed from the A input to the Y output.
Applications
- Projectors
- TVs
- Servers
- Motor Controls: AC Induction
- Patient Monitoring Electronic Points of Sale
Key features
- Operating Range of 2 V to 5.5 V
- Max tpd of 6 ns at 5 V
- Low Power Consumption, 10-µA Max ICC
- ±8-mA Output Drive at 5 V
- Wide operating voltage range – Operates from 2 V to 5.5 V
- Allows down-voltage translation – Inputs accept voltages to 5.5 V
