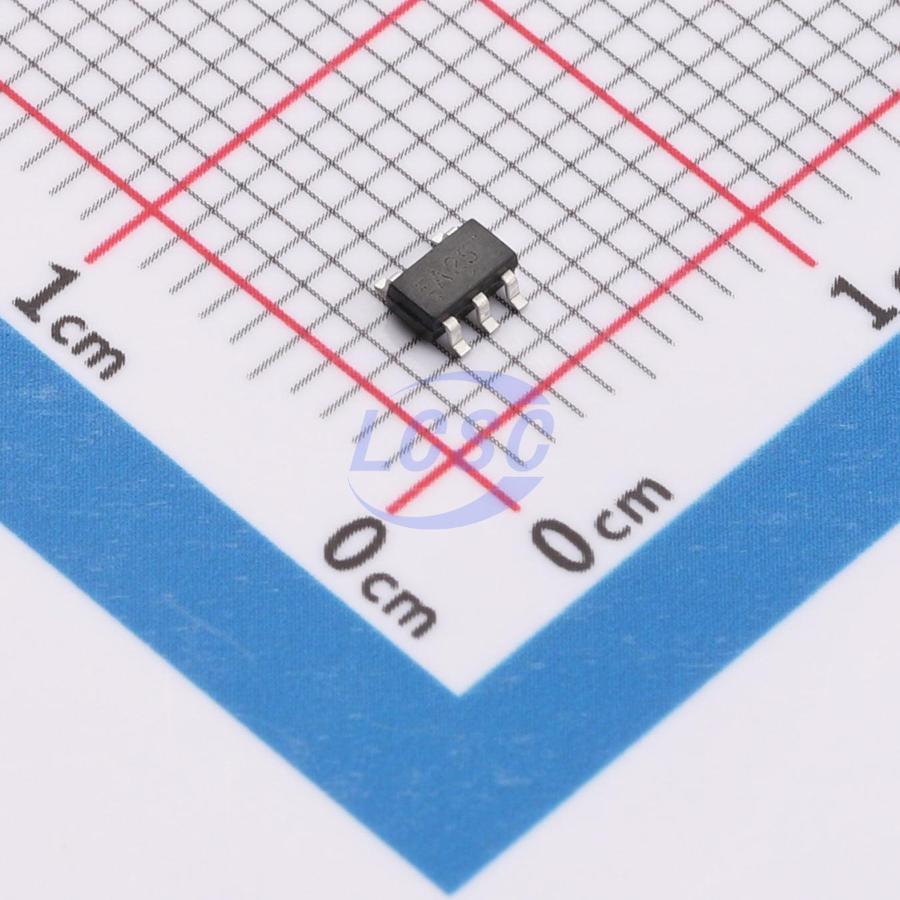

74AHC1G125W5-TP
StandardCMOS 2V~5.5V 1 1 9ns@5V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AHC1G125W5-TP
- Store part #
- C52098165
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,780 in stock
#C52098165
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.85 | ₹58.50 |
| 100+ | ₹4.59 | ₹459.00 |
| 300+ | ₹3.97 | ₹1,191.00 |
| 3,000+ | ₹3.51 | ₹10,530.00 |
| 6,000+ | ₹3.14 | ₹18,840.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
10 × ₹5.85
₹58.50
excl. GST
₹69.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G125W5-TP
₹58.50 for 10 + GST
Specifications
- Input type
- StandardCMOS
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 32mA
- Series
- 74AHC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 9ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
This device is a single bus buffer/line driver with tri-state outputs. When the output enable (OE) is high, the outputs are disabled. Conversely, when OE is low, true data is propagated from the A input to the Y output. The device features a power-off protection circuit to prevent damage during power-down conditions.
Applications
- Audio docking stations
- Blu-ray players and home theaters
- Personal digital assistants
- Telecom/server AC/DC power supplies: single controller: analog and digital
- SSDs: client and enterprise
- Wireless headsets, keyboards, and mice
Key features
- Operating voltage range: 2.0V to 5.5V
- Inputs tolerant up to 5.5V
- High noise immunity
- Low power consumption
- ESD protection exceeds JESD 22
- Human Body Model (A114-A): 2000V
- Machine Model (A115-A): 200V
- Charged Device Model (C101): 1000V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHC1G125GV-TP#C47117508TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,720 | ₹6.14 · 2,720 in stock | View |
 | TC7SH125F-TP#C54195013TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,000 | ₹5.81 · 3,000 in stock | View |
 | TC7SH126F-TP#C54195015TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,000 | ₹5.81 · 3,000 in stock | View |
 | TC7SH17F-TP#C54195019TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,700 | ₹5.81 · 2,700 in stock | View |
 | 74AHC1G126W5-TP#C52098164TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 870 | ₹5.85 · 870 in stock | View |
