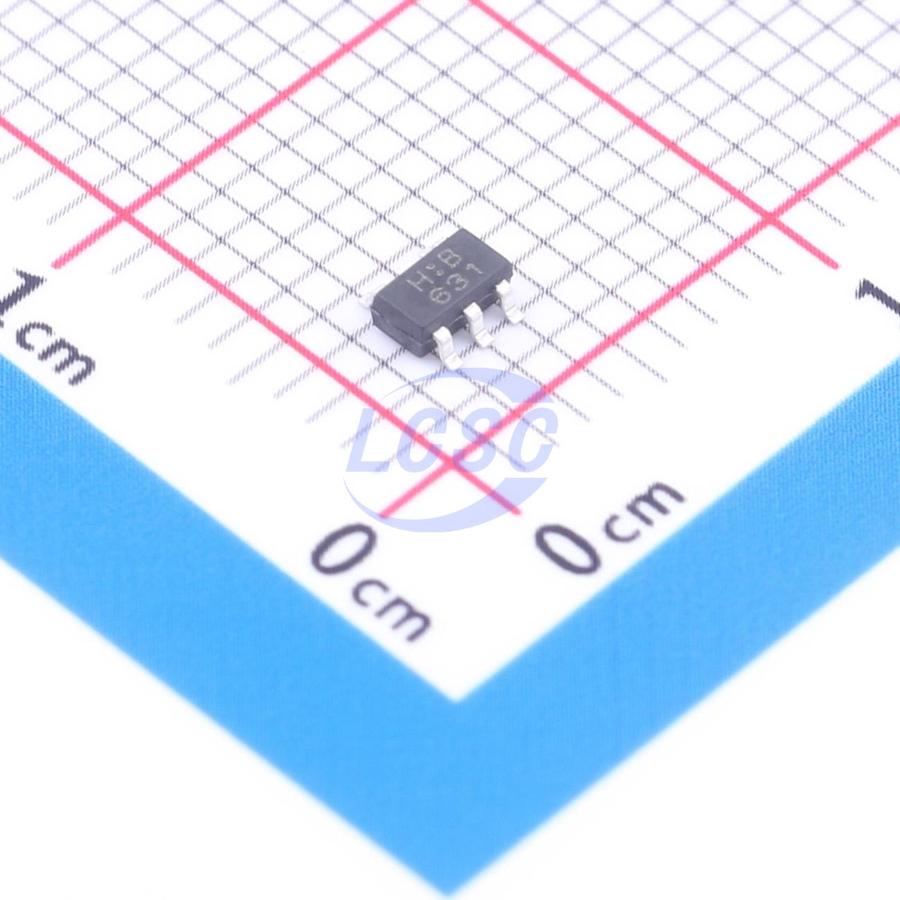

TC7SH125F-TP

The TC7SH125 is a single bus buffer gate. The device is designed for operation with Vcc from 2 V to 5.5 V and can be driven by 3.3 V or 5 V devices. This feature allows these devices to be used as translators in mixed 3.3 V and 5 V environments. The TC7SH125 is a single line driver with three-state outputs. When the output enable (OE) input is high, the output is disabled. This CMOS device maintains low quiescent power consumption over a wide Vcc operating range while providing high output drive capability. The TC7SH125 is available in SOT23-5 and SOT353 packages.

Applications

• Active Noise Cancellation (ANC)
• Blood Pressure Monitor
• Embedded PC
• SSD: Client and Enterprise
• TV: LCD/Digital and HDTV
• Tablet: Enterprise
• Video Analytics: Server
• Wireless Headsets, Keyboards and Mice
• Power Supply: Telecom/Server AC/DC Controller

Key features

• Wide supply voltage range: 2 V to 5.5 V
• Maximum propagation delay of 4.5 ns at Vcc = 3.3 V
• Low power consumption, maximum ICC of 10 μA
• Output drive current of ±24 mA at Vcc = 3.3 V
• Latch-up performance exceeds 100 mA per JESD 78 Class I
• ESD protection exceeds JESD 22
• HBM ESD protection 2000 V (A114-A)
• CDM ESD protection 1000 V (C101)
• Operating temperature range: -40°C to 125°C
• Available packages: SOT23-5 and SOT353
