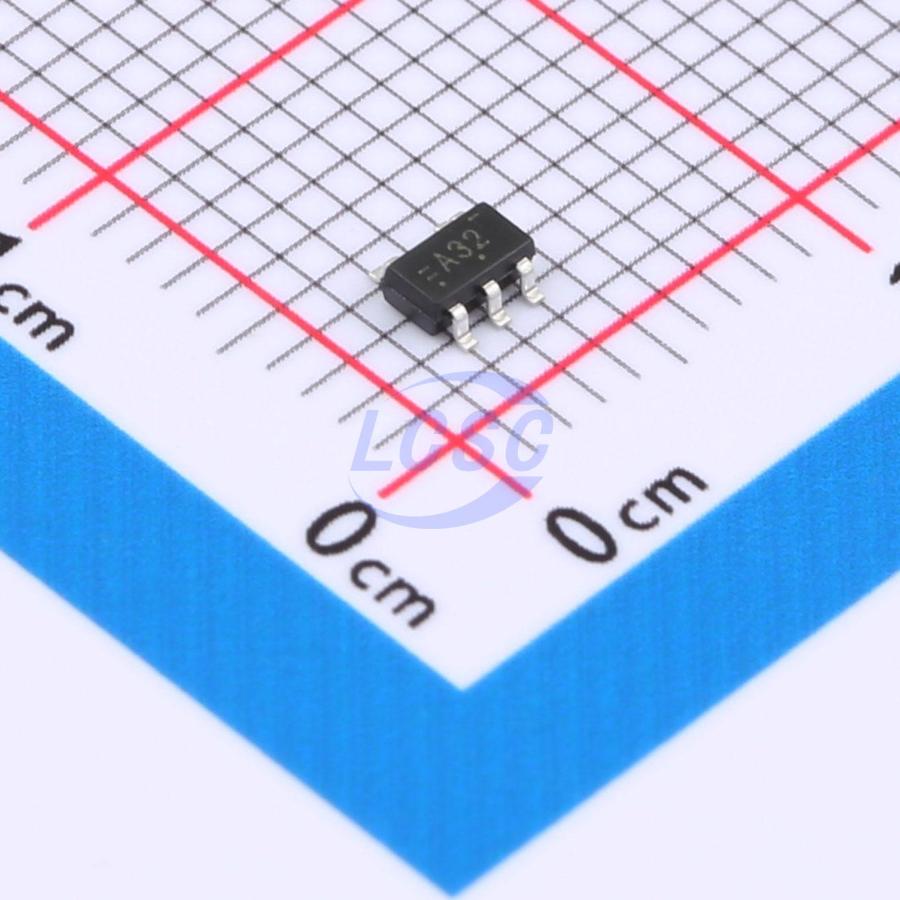

74AHC1G32GV
1uA 2V~5.5V 7.5ns@5V,50pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
SINGLE 2-INPUT POSITIVE-OR GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AHC1G32GV
- Store part #
- C19829587
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,890 in stock
#C19829587
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.46 | ₹74.60 |
| 100+ | ₹5.90 | ₹590.00 |
| 300+ | ₹5.12 | ₹1,536.00 |
| 3,000+ | ₹4.54 | ₹13,620.00 |
| 6,000+ | ₹4.06 | ₹24,360.00 |
| 9,000+ | ₹3.82 | ₹34,380.00 |
10 × ₹7.46
₹74.60
excl. GST
₹88.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G32GV
₹74.60 for 10 + GST
Specifications
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Logic Family
- 74AHC
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~2V;2.9V~3V;4.4V~4.5V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 7.5ns@5V,50pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The 74AHC1G32 is a single 2 - input positive - or gate, which provides the function Y = A + B in positive logic.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E - readers Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set - Top Box
- Cell Phones, Personal Navigation / GPS MP3 Players, Cameras, Video Recorders
Key features
- Operate from 2V to 5.5V
- Max t pD of 5.5ns at 5 V
- ESD Protection Exceeds JESD22
- 2000 - V Human - Body Model (A114 - A)
- 1000 - V Charged - Device Model (C101)
- SOT23 - 5 Package Available
- SOT353 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHC1G32DBVR#C19829669TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 7,030 | ₹7.09 · 7,030 in stock | View |
 | 74AHC1G32W5-TP#C52098168TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,770 | ₹5.85 · 2,770 in stock | View |
 | TP74AHC1G32S5#C52205198TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,990 | ₹6.77 · 2,990 in stock | View |
 | MC74VHC1G32DTT1G-TP#C53100489TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,550 | ₹5.82 · 1,550 in stock | View |
 | TC7S32F#C19829493TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,970 | ₹7.46 · 4,970 in stock | View |
