TECH PUBLICDatasheet (PDF)

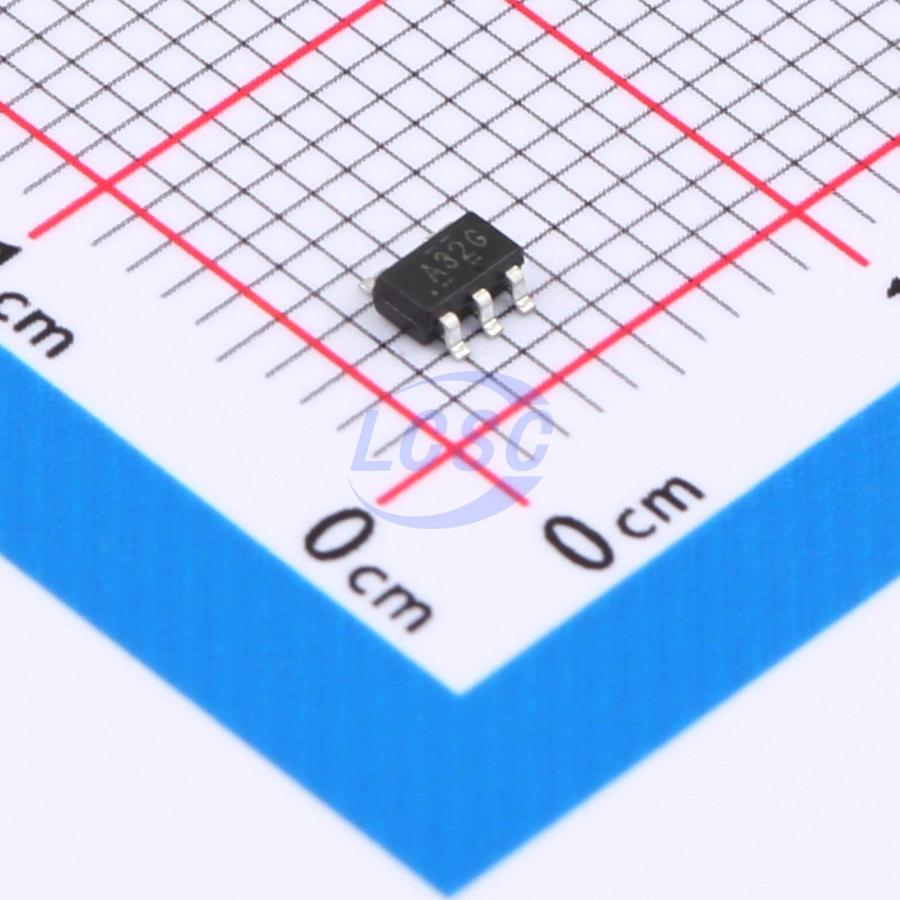

SN74AHC1G32DBVR
1uA 2V~5.5V 7.5ns@5V,50pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
SINGLE 2-INPUT POSITIVE-OR GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AHC1G32DBVR
- Store part #
- C19829669
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,130 in stock
#C19829669
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.09 | ₹70.90 |
| 100+ | ₹5.53 | ₹553.00 |
| 300+ | ₹4.75 | ₹1,425.00 |
| 3,000+ | ₹4.17 | ₹12,510.00 |
| 6,000+ | ₹3.69 | ₹22,140.00 |
| 9,000+ | ₹3.47 | ₹31,230.00 |
10 × ₹7.09
₹70.90
excl. GST
₹83.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G32DBVR
₹70.90 for 10 + GST
Specifications
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Logic Family
- 74AHC
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~2V;2.9V~3V;4.4V~4.5V;2.58V;3.94V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Propagation Delay
- 7.5ns@5V,50pF
- Output Logic Level - Low
- 100mV;360mV
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
Voltage Level Shifting General Purpose Logic Power Down Signal Isolation Wide array of products such as: PCs, Networking, Notebooks, Netbooks, PDAs Tablet Computers, E-readers Computer Peripherals, Hard Drives, CD/DVD ROM TV, DVD, DVR, Set-Top Box Cell Phones, Personal Navigation / GPS MP3 Players, Cameras, Video Recorders The SN74AHC1G32 is a single 2-input positive-or gate, which provides the function Y = A + B in positive logic.
Applications
- PCs
- Networking
- Notebooks
- Netbooks
- PDAs
- Tablet Computers
- E-readers
- Computer Peripherals
- Hard Drives
- CD/DVD ROM
- TV
- DVD
- DVR
- Set-Top Box
- Cell Phones
- Personal Navigation / GPS
- MP3 Players
- Cameras
- Video Recorders
Key features
- Operate from 2V to 5.5V
- Max t pD of 5.5ns at 5 V
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
- SOT353 Package Available
