TECH PUBLICDatasheet (PDF)

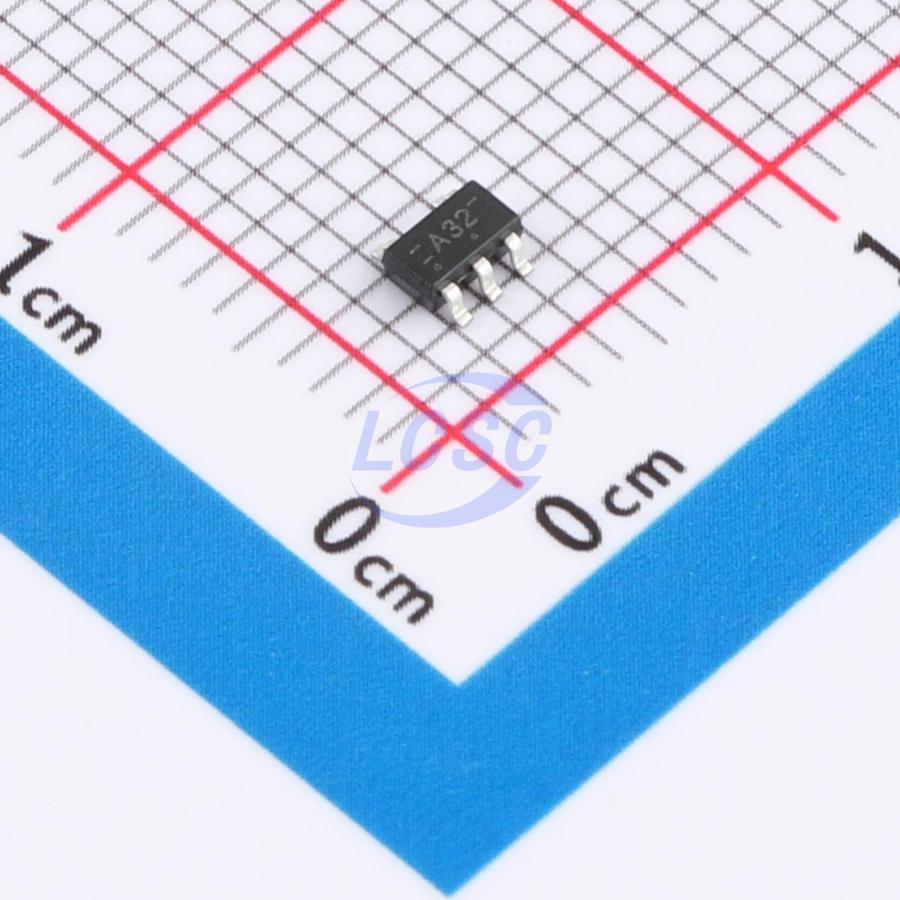

74AHC1G32W5-TP
1uA 2V~5.5V 7.5ns@5V,50pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AHC1G32W5-TP
- Store part #
- C52098168
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,770 in stock
#C52098168
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.85 | ₹58.50 |
| 100+ | ₹4.59 | ₹459.00 |
| 300+ | ₹3.97 | ₹1,191.00 |
| 3,000+ | ₹3.51 | ₹10,530.00 |
| 6,000+ | ₹3.14 | ₹18,840.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
10 × ₹5.85
₹58.50
excl. GST
₹69.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G32W5-TP
₹58.50 for 10 + GST
Specifications
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Logic Family
- 74AHC
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V;2.58V;3.94V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 7.5ns@5V,50pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
This device is a single 2-input positive-OR gate that implements the function Y = A + B in positive logic.
Applications
- Voltage level translation
- General-purpose logic circuits
- Power-off signal isolation
- Computers and peripherals
- Communication equipment
Key features
- Operating voltage range: 2V to 5.5V
- Maximum propagation delay of 5.5ns at 5V
- ESD protection exceeds JESD 22 standard
- Human Body Model: 2000V
- Charged Device Model: 1000V
- Available in SOT23-5 package
- Available in SOT353 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHC1G32DBVR#C19829669TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 7,130 | ₹7.09 · 7,130 in stock | View |
 | 74AHC1G32GV#C19829587TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 5,910 | ₹7.46 · 5,910 in stock | View |
 | TP74AHC1G32S5#C52205198TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,990 | ₹6.77 · 2,990 in stock | View |
 | MC74VHC1G32DTT1G-TP#C53100489TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,550 | ₹5.82 · 1,550 in stock | View |
 | TC7SH32F-TP#C54195021TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,000 | ₹5.81 · 3,000 in stock | View |
