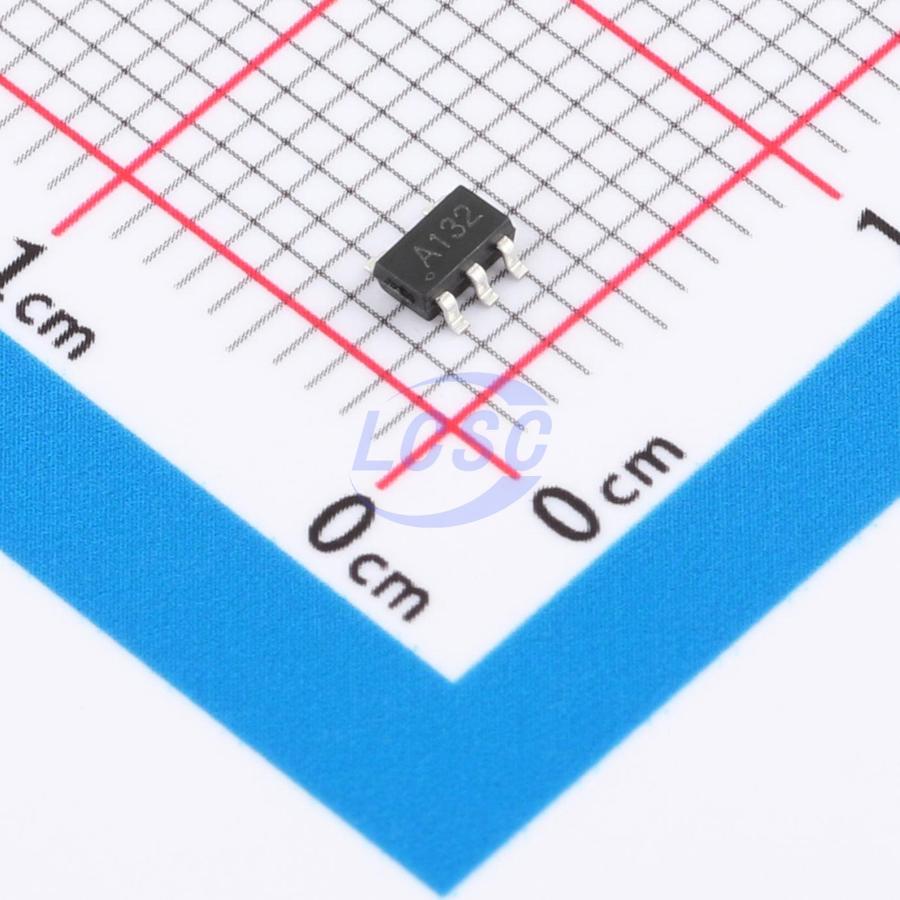

TP74AHC1G32S5
1uA 2V~5.5V 7.5ns@5V,50pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AHC1G32S5
- Store part #
- C52205198
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C52205198
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.77 | ₹67.70 |
| 100+ | ₹5.33 | ₹533.00 |
| 300+ | ₹4.62 | ₹1,386.00 |
| 3,000+ | ₹4.09 | ₹12,270.00 |
| 6,000+ | ₹3.65 | ₹21,900.00 |
| 9,000+ | ₹3.44 | ₹30,960.00 |
10 × ₹6.77
₹67.70
excl. GST
₹79.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AHC1G32S5
₹67.70 for 10 + GST
Specifications
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Logic Family
- 74AHC
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.58V;3.94V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 360mV
- Propagation Delay
- 7.5ns@5V,50pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
TP74AHC1G32 is a single 2-input positive-OR gate that performs the function Y = A + B in positive logic.
Key features
- Operating voltage range: 2V ~ 5.5V
- Maximum propagation delay of 5.5ns at 5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHC1G32GV#C19829587TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 5,910 | ₹7.46 · 5,910 in stock | View |
 | SN74AHC1G32DBVR#C19829669TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 7,130 | ₹7.09 · 7,130 in stock | View |
 | 74AHC1G32W5-TP#C52098168TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,770 | ₹5.85 · 2,770 in stock | View |
 | MC74VHC1G32DTT1G-TP#C53100489TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,550 | ₹5.82 · 1,550 in stock | View |
 | TC7SH32F-TP#C54195021TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,000 | ₹5.81 · 3,000 in stock | View |
