TECH PUBLICDatasheet (PDF)

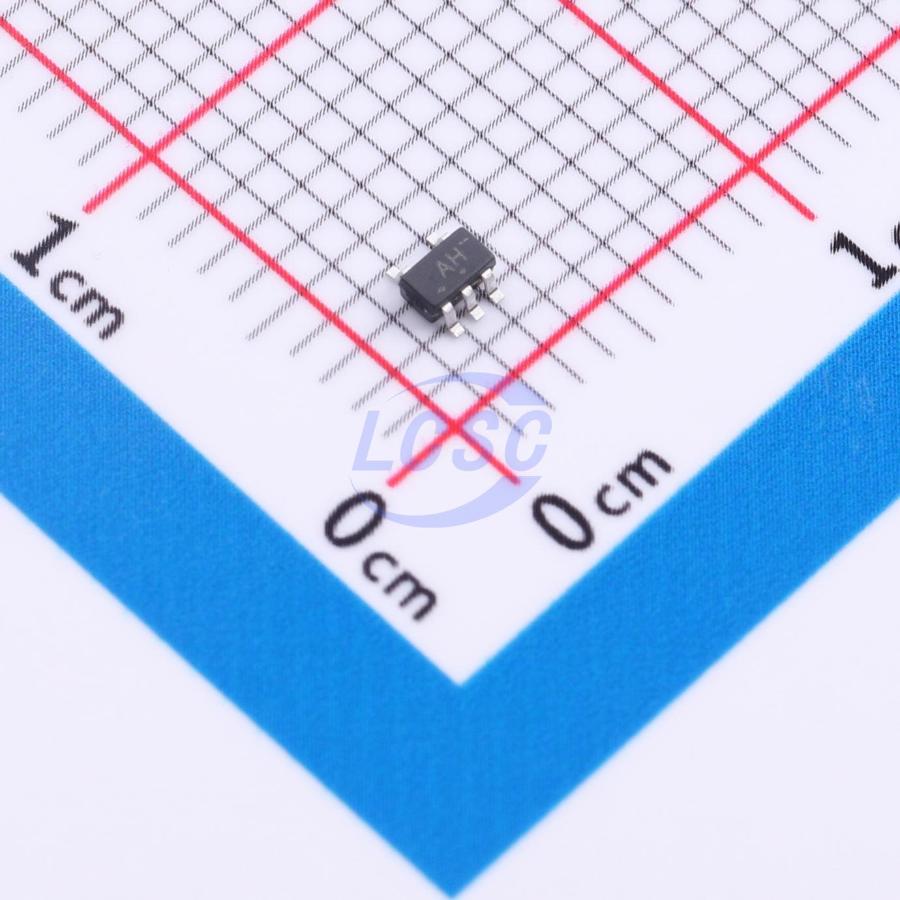

74AHC1G86SE-TP
4uA 2V~5.5V 8.8ns@5V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AHC1G86SE-TP
- Store part #
- C52098176
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C52098176
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.42 | ₹64.20 |
| 100+ | ₹5.05 | ₹505.00 |
| 300+ | ₹4.37 | ₹1,311.00 |
| 3,000+ | ₹3.85 | ₹11,550.00 |
| 6,000+ | ₹3.44 | ₹20,640.00 |
| 9,000+ | ₹3.23 | ₹29,070.00 |
10 × ₹6.42
₹64.20
excl. GST
₹75.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G86SE-TP
₹64.20 for 10 + GST
Specifications
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Logic Family
- 74AHC
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V
- Quiescent Current(Iq)
- 4uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Propagation Delay
- 8.8ns@5V,50pF
- Output Logic Level - Low
- 100mV;360mV
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
74AHC1G86 2-input XOR gate providing Y = A ⊕ B function.
Applications
- Voltage level translation
- General-purpose logic
- Power-down signal isolation
- PCs, networking equipment, laptops, netbooks, PDAs
- Tablets, e-readers
- Computer peripherals, hard disk drives, CD/DVD optical drives
- TVs, DVDs, digital video recorders, set-top boxes
- Mobile phones, personal navigation/GPS devices
- MP3 players, cameras, camcorders
Key features
- Operating voltage range: 2~5.5V
- Low power consumption: ICC = 10 mA (max)
- High speed: tPD = 4.3ns (typical)
- ESD protection exceeds JESD 22 standard
- 2000V Human Body Model (A114-A)
- 1000V Charged Device Model (C101)
- Available in SOT23-5 package
- Available in SOT353 package
Alternatives
Similar parts — check the datasheet before substituting.
