TECH PUBLICDatasheet (PDF)

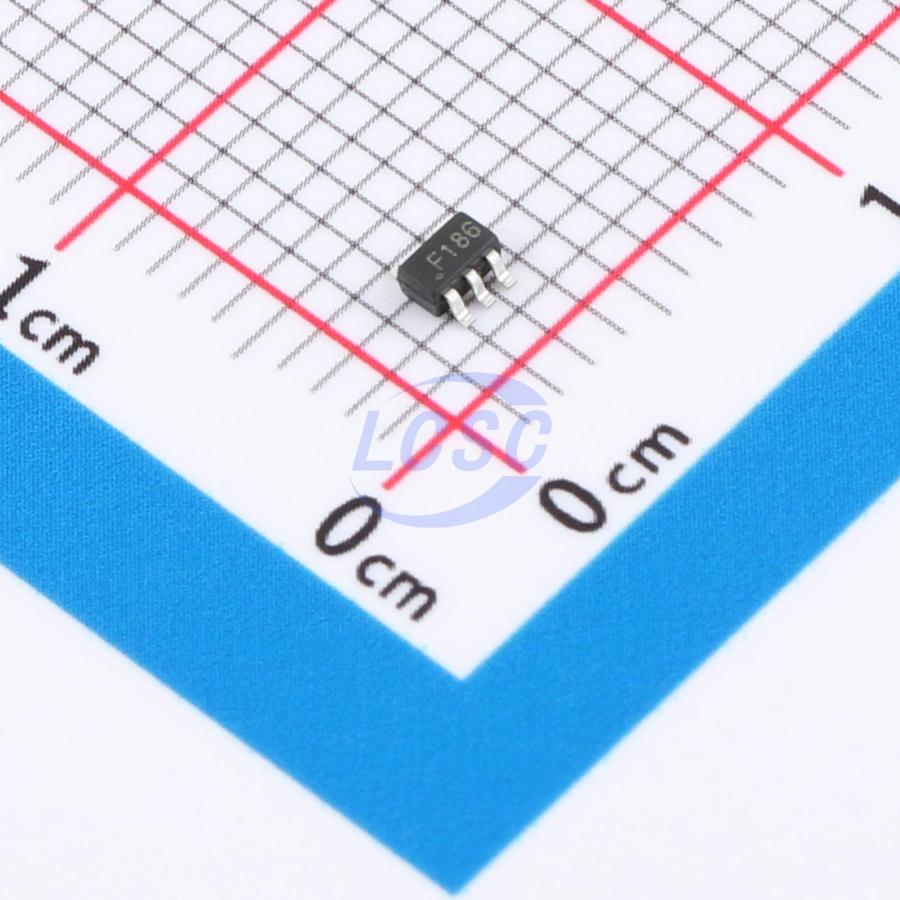

TP74AHC1G86C5
1uA 2V~5.5V SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AHC1G86C5
- Store part #
- C52205199
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C52205199
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.38 | ₹73.80 |
| 100+ | ₹5.82 | ₹582.00 |
| 300+ | ₹5.04 | ₹1,512.00 |
| 3,000+ | ₹4.46 | ₹13,380.00 |
| 6,000+ | ₹3.98 | ₹23,880.00 |
| 9,000+ | ₹3.74 | ₹33,660.00 |
10 × ₹7.38
₹73.80
excl. GST
₹87.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AHC1G86C5
₹73.80 for 10 + GST
Specifications
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Logic Family
- 74AHC
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~2V;2.58V;3.94V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~5.5V
- Number of Channels
- 1;2
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 14.5ns@3.3V,50pF;8.8ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
TP74AHC1G86 is a 2-input XOR gate with logic function Y = A XOR B.
Key features
- Operating voltage range: 2 ~ 5.5V
- Low supply current: Icc = 10μA (max)
- High speed: tpd = 4.3ns (typ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHC1G86DCKR#C19829639TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 4,320 | ₹5.48 · 4,320 in stock | View |
 | NC7S86P5X-TP#C42460216TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,960 | ₹6.39 · 2,960 in stock | View |
 | 74AHC1G86GW-TP#C52098177TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,680 | ₹6.38 · 2,680 in stock | View |
 | MC74VHC1G86DFT1G-TP#C53100499TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹6.28 · 3,000 in stock | View |
 | 74AHC1G86SE-TP#C52098176TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹6.42 · 3,000 in stock | View |
