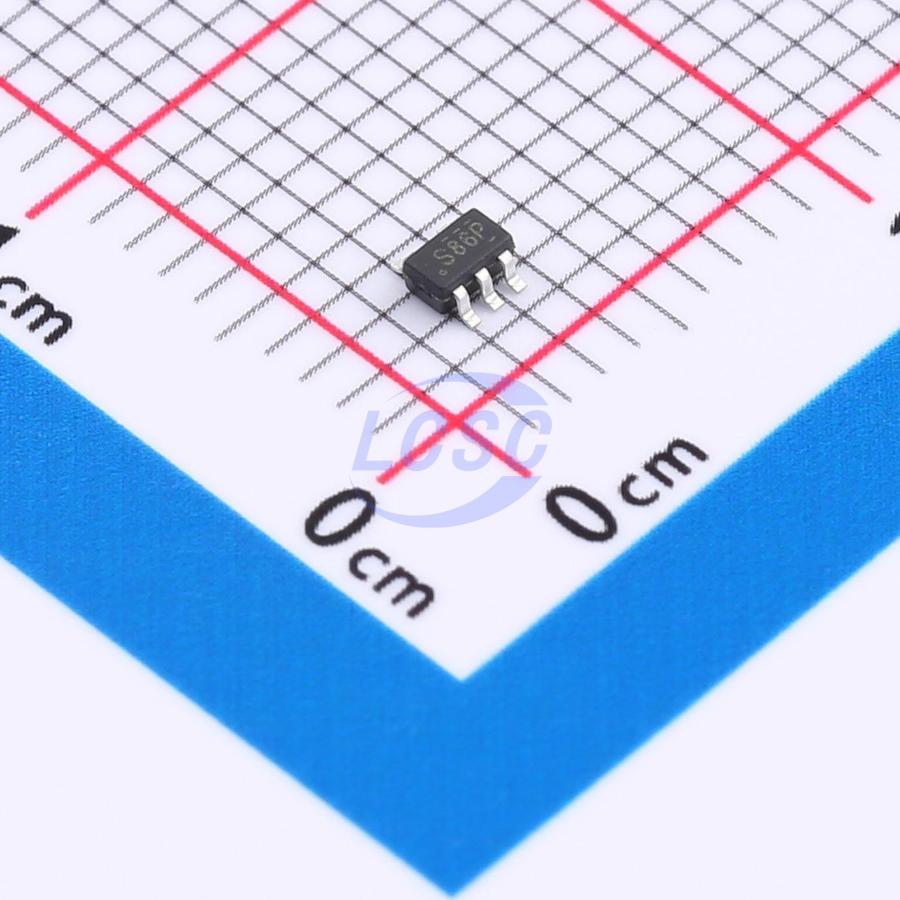

NC7S86P5X-TP
1uA 2V~5.5V 8.8ns@5V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
2-INPUT EXCLUSIVE-OR GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7S86P5X-TP
- Store part #
- C42460216
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,960 in stock
#C42460216
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.39 | ₹63.90 |
| 100+ | ₹5.05 | ₹505.00 |
| 300+ | ₹4.38 | ₹1,314.00 |
| 1,000+ | ₹3.89 | ₹3,890.00 |
| 5,000+ | ₹3.48 | ₹17,400.00 |
| 10,000+ | ₹3.28 | ₹32,800.00 |
10 × ₹6.39
₹63.90
excl. GST
₹75.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7S86P5X-TP
₹63.90 for 10 + GST
Specifications
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~2V;2.58V;3.94V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 8.8ns@5V,50pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The NC7S86P5X-TP is a 2-input EXCLUSIVE-OR gate, it provides the Function Y = A⊕B.
Key features
- Operation voltage range: 2~5.5V
- Low power current: lcc = 10N la (Max)
- High speed: tpD = 4.3 ns(Typ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHC1G86SE-TP#C52098176TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹6.42 · 3,000 in stock | View |
 | 74AHC1G86GW-TP#C52098177TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,680 | ₹6.38 · 2,680 in stock | View |
 | MC74VHC1G86DFT1G-TP#C53100499TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹6.28 · 3,000 in stock | View |
 | SN74AHC1G86DCKR#C19829639TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 4,320 | ₹5.48 · 4,320 in stock | View |
 | TP74AHC1G86C5#C52205199TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹7.38 · 3,000 in stock | View |
