TECH PUBLICDatasheet (PDF)

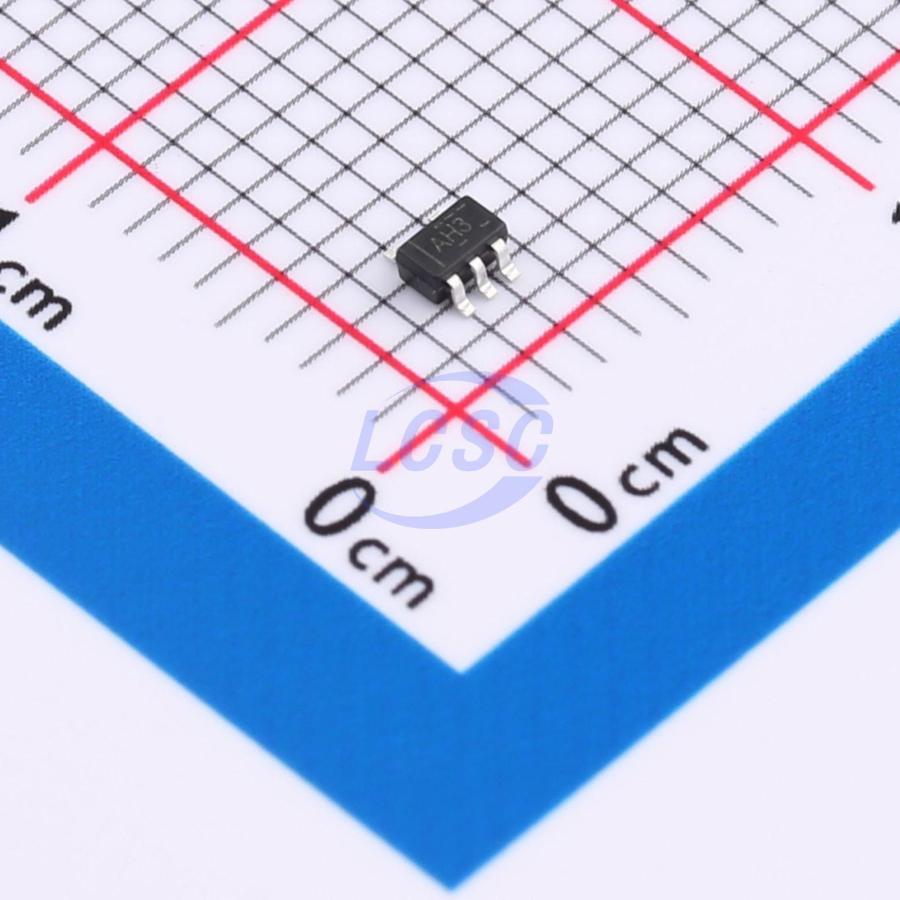

SN74AHC1G86DCKR
1uA 2V~5.5V 4.8ns@5V,15pF SOT-353 Gates and Inverters
SOT-353RoHSActive
2-INPUT EXCLUSIVE-OR GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AHC1G86DCKR
- Store part #
- C19829639
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,320 in stock
#C19829639
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.48 | ₹54.80 |
| 100+ | ₹4.33 | ₹433.00 |
| 300+ | ₹3.76 | ₹1,128.00 |
| 3,000+ | ₹3.32 | ₹9,960.00 |
| 6,000+ | ₹2.98 | ₹17,880.00 |
| 9,000+ | ₹2.80 | ₹25,200.00 |
10 × ₹5.48
₹54.80
excl. GST
₹64.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G86DCKR
₹54.80 for 10 + GST
Specifications
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Logic Family
- 74AHC
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~2V;2.58V;3.94V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~5.5V
- Number of Channels
- 1;2
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 4.8ns@5V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operation voltage range: 2~5.5V
- Low power current: I(CC)=10 mA (Max)
- High speed: t(pr1)=4.3 ns (Typ)
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A) - 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
- SOT353 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74AHC1G86C5#C52205199TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹7.38 · 3,000 in stock | View |
 | NC7S86P5X-TP#C42460216TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,960 | ₹6.39 · 2,960 in stock | View |
 | MC74VHC1G86DFT1G-TP#C53100499TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹6.28 · 3,000 in stock | View |
 | 74AHC1G86SE-TP#C52098176TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹6.42 · 3,000 in stock | View |
 | 74AHC1G86GW-TP#C52098177TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,680 | ₹6.38 · 2,680 in stock | View |
